Fuel Dispenser with Electronic Control System
This fuel dispenser features an advanced electronic control system for enhanced safety and stability. Its high-precision flow meter ensures outstanding performance and accurate dispensing across a wide temperature range.
Technical Specifications
Overview
Advanced Fuel Dispensing Technology
The CS52 Marvel Series is a high-security fuel dispenser engineered for safety and stability using the latest 6200 main board electronic technology. It features a robust, waterproof, and dustproof design suitable for demanding environments with a wide temperature tolerance from -40°C to 55°C. With high-precision flow meters and intelligent voice systems, this dispenser ensures reliable performance and a user-friendly experience for high-traffic service stations.
Performance Metrics
Key Performance Metrics
0.25 %
Accuracy Rate
10,000,000 L
Life-cycle Capacity
80 dB(A)
Maximum Noise
Technical Specifications
- Flow Rate Range
- 5-50L/Min or 8-80L/Min
- Intake Vacuum
- 54 KPA
- Working Environmental Temperature
- -40°C to +55°C
Electrical Data
Motor Output Power
- 750W
- 1000W
- Power Supply
- AC380V or AC220V (-15% to +10%)
Control & Display
Display & Interface
- Adjustable brightness for varying light conditions
- Intelligent Voice Broadcast System
- Printer Bill System
- POS Smart Upgrade Support
Display Measurement Ranges
| Metric | Display Range |
|---|---|
| Sales | 0.00 to 9999999 |
| Volume | 0.00 to 99999.99 |
| Unit Price | 0.00 to 9999 |
| Electrical Totalizer | 0.00 to 99999999.99 |
Configuration Options

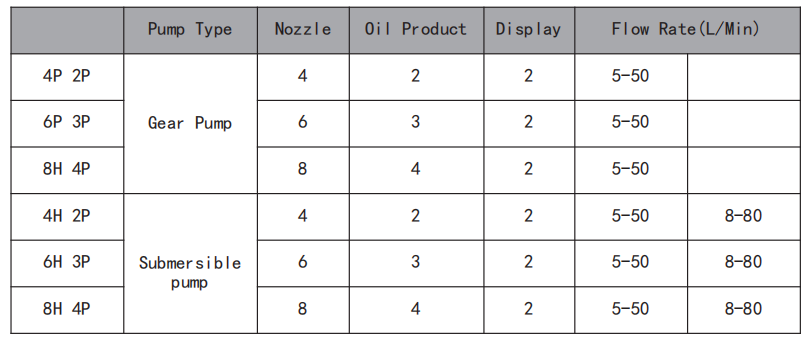

Available Pump & Nozzle Configurations
| Pump Type | Nozzles | Oil Products | Flow Rate (L/Min) |
|---|---|---|---|
| Gear Pump (4P 2P) | 4 | 2 | 5-50 |
| Gear Pump (6P 3P) | 6 | 3 | 5-50 |
| Submersible Pump (4H 2P) | 4 | 2 | 5-50 / 8-80 |
| Submersible Pump (8H 4P) | 8 | 4 | 5-50 / 8-80 |
Security & Durability
- Protection & Reliability
- WaterproofDustproofMoistureproofRustproofHigh-Security
