Fuel Dispenser with Electronic Control
This fuel dispenser provides secure and accurate fuel dispensing. Its high-precision flow meter ensures outstanding performance and a long lifecycle.
Technical Specifications
Overview
High-Performance Electronic Fuel Dispenser
This advanced fuel dispenser is engineered for high security and durability, featuring a waterproof and dustproof design suitable for harsh environments. It incorporates the latest 6200 main board technology for stability, alongside an intelligent voice broadcast system and printer bill system for enhanced customer service. Designed for efficiency, the unit offers adjustable display brightness and easy POS integration, ensuring minimal maintenance and outstanding performance across a wide temperature range.
Technical Specifications
- Accuracy
- 0.25 %
- Intake Vacuum
- 54 KPA
- Noise Level
- 80 dB(A)
- Operating Temperature
- -40°C to +55°C
Power & Motor
Motor Output Power
- 750
- 1,000
- Power Supply
- AC380VAC220V

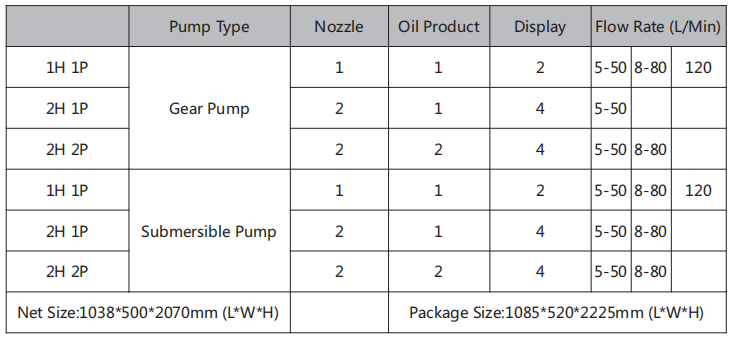

Configuration Table
Series Configuration
| Model | Pump Type | Nozzles | Displays |
|---|---|---|---|
| 1H 1P | Gear/Submersible | 1 | 2 |
| 2H 1P | Gear/Submersible | 1 | 4 |
| 2H 2P | Gear/Submersible | 2 | 4 |
Dimensions
- Net Dimensions (L*W*H)
- 1038 x 500 x 2070 mm
- Package Dimensions (L*W*H)
- 1085 x 520 x 2225 mm
