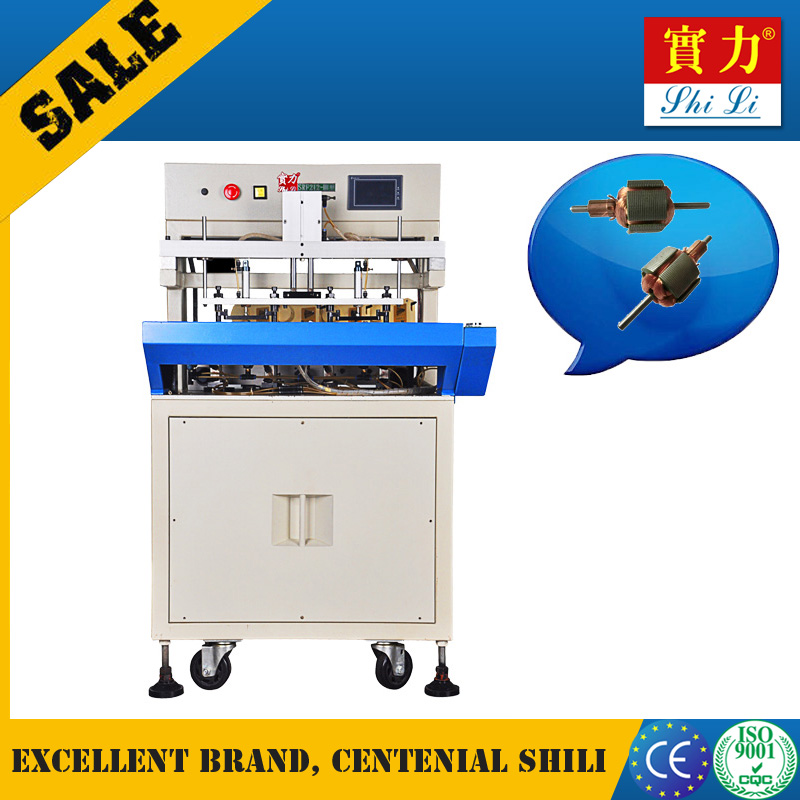

Four-Spindle Rotor Winding Machine
This four-spindle rotor winding machine is designed for efficient and precise winding of motor rotors. It allows simultaneous winding on multiple spindles to maximize throughput.
Technical Specifications
Overview
High-Efficiency Rotor Winding
The four-spindle rotor winding machine is engineered for high-speed, precision winding of micro motor rotors. Utilizing advanced AC servo motors and a Taiwan PLC touch screen interface, it offers seamless operation in both English and Chinese. Designed for high-volume manufacturing, the unit automates winding, groove changing, and wire shearing to significantly enhance productivity and reduce material waste.
Performance Metrics
Key Performance Metrics
6,000 turn/min
Max Winding Speed
4 pcs
Spindle Count
0.1 degree
Winding Accuracy
Technical Specifications
Winding Parameters
| Parameter | Specification |
|---|---|
| Wire Size Range | 0.05-0.4mm |
| Cable Accuracy | ±0.01mm |
| Corner Accuracy | ±0.1° |
| Air Pressure | 4-6kg²/cm |
Power and Dimensions
- Input Power: 220V 50HZ/60HZ
- Spindle Motor: 1HP Servo Motor
- Corner Motor: 200W Servo Motor
- Dimensions: 1220*780*1260mm
- Net Weight: 160kg
Quality and Standards
Compliance Badges
CEISO 9001CQC
- Premium Components
- Japan NSK/NTN BearingsJapan BANDO BeltUSA GAICI BeltTaiwan TBI Ball Screw
