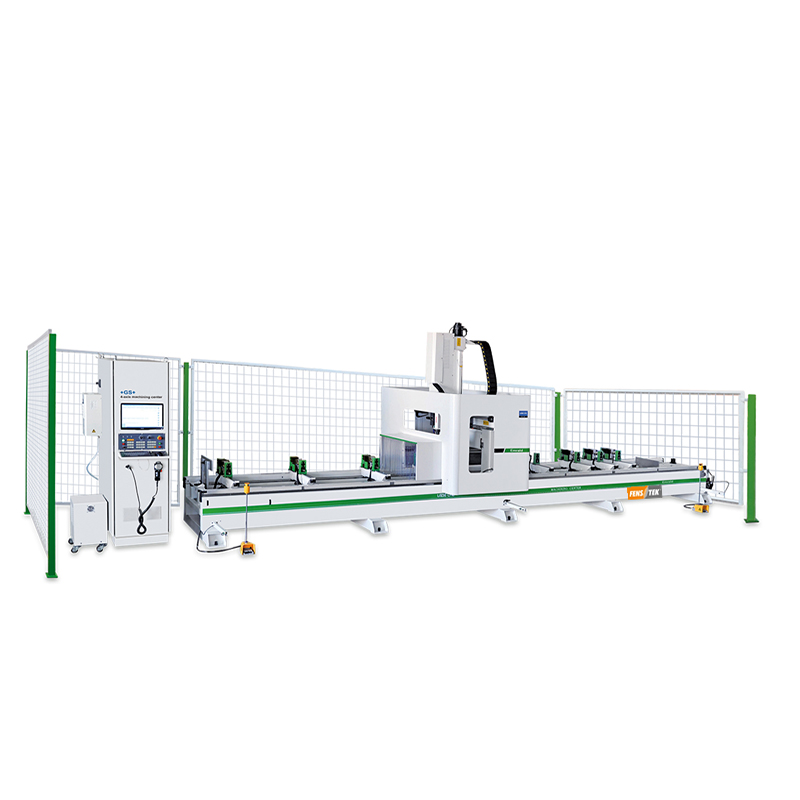

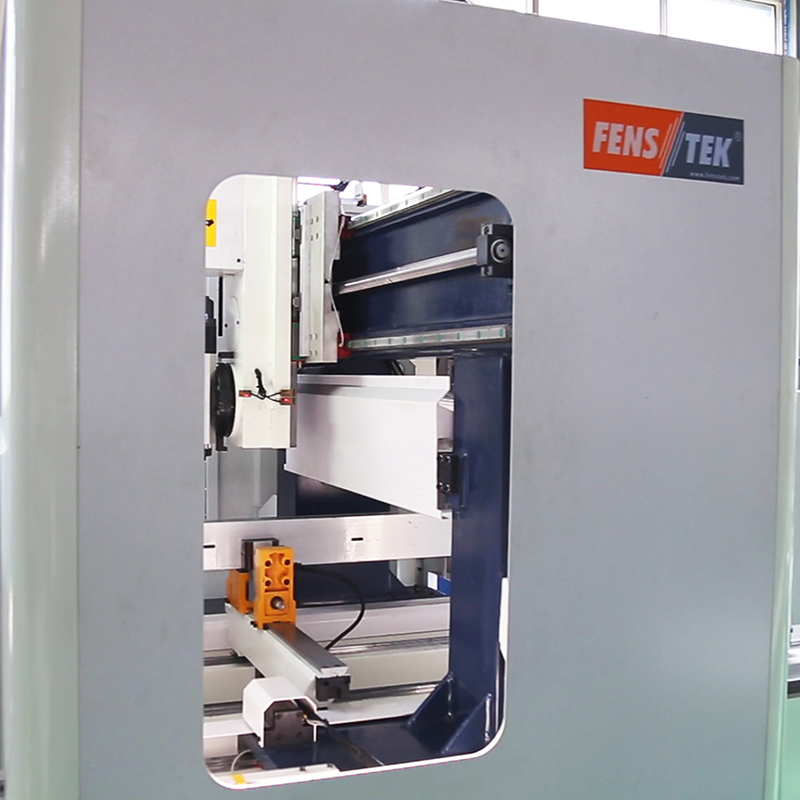

Four-Axis CNC Machining Center
This four-axis CNC machining center is designed for versatile milling, drilling, and cutting operations. It features a rigid structure for stability and an advanced control system for precise movements.
Technical Specifications
Overview
High-Performance Four-Axis Machining Center
This four-axis machining center is engineered for high-precision milling, drilling, and cutting operations in industrial environments. Featuring a robust construction for stability and accuracy, it is equipped with advanced components to ensure consistent, high-speed performance across a wide range of materials. With a versatile processing range and automated tool management, it is an ideal solution for manufacturing complex parts efficiently.
Technical Specifications
- Input Power
- 16.5 KW
- Power Specification
- 3N~50HZ 380V
- Air Consumption
- 60 L/min
- Air Pressure
- 0.5-0.8 Mpa
Performance Metrics
Key Performance Metrics
24,000 r/min
Spindle Speed
9 kw
Spindle Power
0.02 mm
Repeat Accuracy
Feed Rates
| Axis | Rate |
|---|---|
| X-axis | 0~60m/min |
| Y-axis | 0~30m/min |
| Z-axis | 0~30m/min |
Processing Capabilities
Processing Ranges
- Top surface (special clamp): 7000 x 900 x 260 mm
- Top surface (standard clamp): 7000 x 600 x 260 mm
- Top & side surface (standard clamp): 7000 x 400 x 260 mm
Tooling Specifications
- Tool magazine positions: 9
- Blade diameter: Ø80~Ø150mm
- Cutting tool installation length: 150mm
Physical Dimensions
- Machine Size
- 9000 x 2200 x 2250 mm
- Weight
- 4300 kg
Configuration
Optional Lengths
4 meters8 meters10 metersCustomized
- Included Accessories
- CertificateOperation Manual
