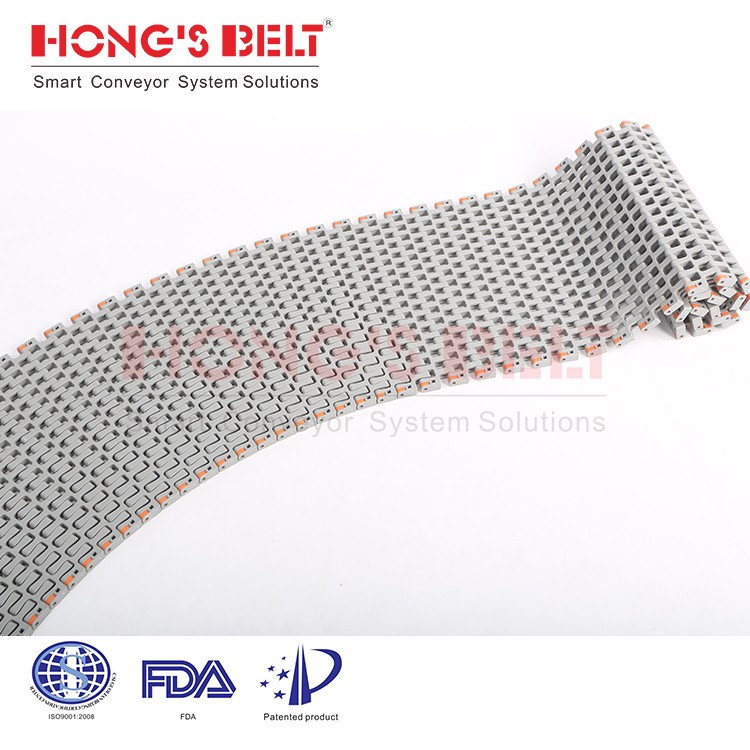

Flush Grid Modular Plastic Conveyor Belt
This flush grid modular plastic conveyor belt is designed for the packaging industry. Its modular design allows for easy maintenance and the plastic material ensures resistance to corrosion, chemicals, and abrasion.
Technical Specifications
Overview
Flush Grid Modular Conveyor Belt
This high-performance modular plastic conveyor belt is engineered for demanding packaging and material handling environments. Featuring a robust flush grid design, it offers exceptional durability, easy cleaning, and a significant load capacity of up to 1.2 tons per square meter. The versatile modular construction supports flexible configurations, including curved paths, making it an ideal solution for automated systems in food processing and non-food industries alike.
Technical Specifications
- Pitch
- 45 mm
- Thickness
- 15 mm
- Minimum Width
- 218 mm
- Open Area
- 38 %
- Rod Diameter
- 5.8 mm
Performance & Features
Certifications
FDAEU
Key Capabilities
- Curve capable
- Side guard available
- Floating in water
- Maintenance free
- Easy to clean
- Available Materials
- PPPOMPEPA
- Available Colors
- WhiteBlueGrayNatureDark-brown
- Working Temperature
- -40°C to 260°C
System Compatibility
Sprocket Options
| Feature | Details |
|---|---|
| Sprocket Size | 8T, 12T |
| Bore Type | Square and Round |
Applications
- Food Industry Applications
- MeatPoultrySea FoodBakerySnack FoodFruit & Vegetables
- Non-Food Industry Applications
- AutomotiveTire ManufacturingPackagingPrinting/PaperPostalCorrugated CardboardCan ManufacturingPET ManufacturingTextile
