Five-Axis Machining Center
This five-axis machining center features a rigid structure and high-speed spindle for enhanced stability and accuracy during machining. Its advanced control system ensures precise and efficient material removal, making it suitable for complex curved surfaces and multiple milling, drilling, and tapping processes.
Technical Specifications
Overview

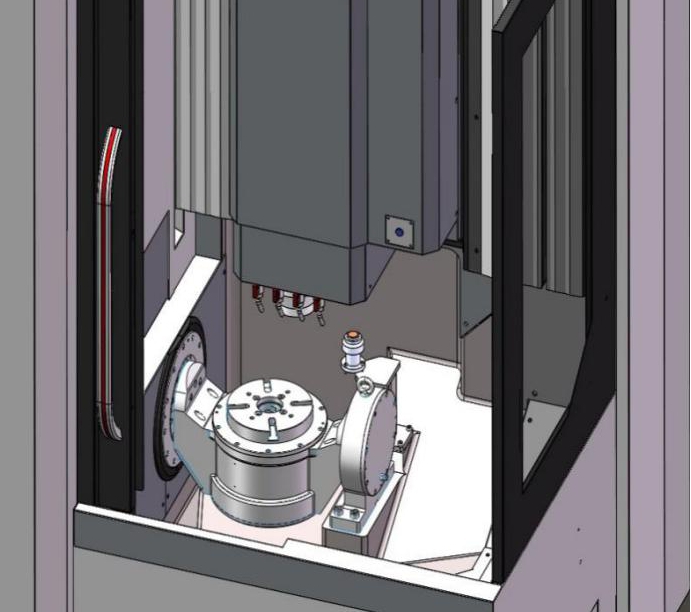

High-Precision Five-Axis Machining Center
The UE330/5X series is designed with a box-type layout for superior rigidity and long-term accuracy stability. Featuring high-speed spindle technology with integrated cooling and servo-driven axes, it ensures consistent thermal control and precision. This machine supports complex multi-axis operations, making it an ideal solution for aerospace, medical, and high-precision mold industries.
- Key Features
- High-Speed SpindleEthercat CommunicationFive-Axis SimultaneousThermal Cooling System
Technical Specifications
Featured Metrics
0.005 mm
Machining Accuracy
300 mm
X-Axis Travel
40,000 RPM
Max Spindle Speed
Model Specifications
| Feature | UE330/5X-A | UE330/5X-T | UE330/5X-C |
|---|---|---|---|
| Table Size (mm) | 125 | 160 | 180 |
| Max Spindle RPM | 36000 | 40000 | 30000 |
| Spindle Power (kW) | 5.5 | 6 | 8.5/11 |
| Machine Weight (kg) | 2600 | 2700 | 3000 |
- Physical Footprint
- 1500 x 2200 x 2150 mm
