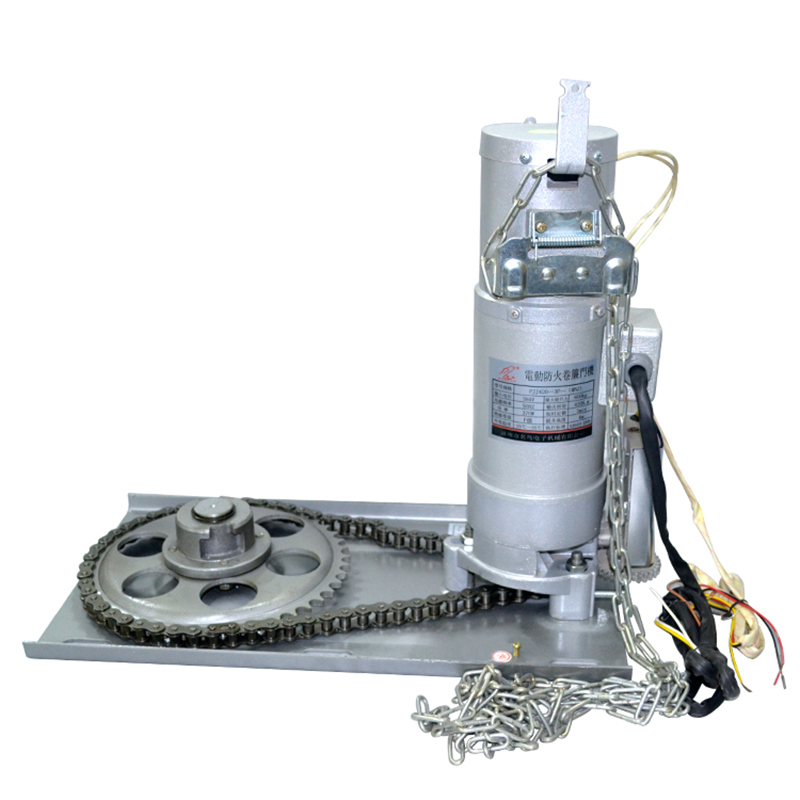

Fireproof Roller Shutter Operator
This fireproof roller shutter motor ensures the reliable and safe operation of rolling doors. It features a robust construction with a chain drive system for smooth and efficient movement.
Technical Specifications
Product Overview
Fireproof Roller Shutter Operator
This fireproof roller shutter operator is engineered for reliable and safe performance in commercial and industrial environments where fire resistance is essential. Featuring a robust construction with a reliable chain drive mechanism, these units ensure smooth and efficient operation of heavy rolling doors. The system is enclosed in a durable metallic housing, providing protection against environmental factors while maintaining safety compliance.
Technical Specifications
Performance Parameters
| Model | Power (W) | Torque (N.m) | Speed (r/min) | Max Distance (m) |
|---|---|---|---|---|
| FJF318-3P | 180 | 318 | 6.5 | 6 |
| FJF534-3P | 250 | 534 | 6.5 | 6 |
| FJF604-3P | 250 | 604 | 6.5 | 6 |
| FJF850-3P | 550 | 850 | 5.06 | 6 |
| FJF1045-3P | 550 | 1,045 | 5.5 | 6 |
| FJF1335-3P | 600 | 1,335 | 6.4 | 6 |
| FJF1526-3P | 800 | 1,526 | 4.9 | 6 |
Electrical Standards
- Voltage & Frequency
- 220V, 50Hz
- Rated Current
- 10 A
Product Features
- Key Features
- FireproofChain DriveMetallic HousingIndustrial Grade
