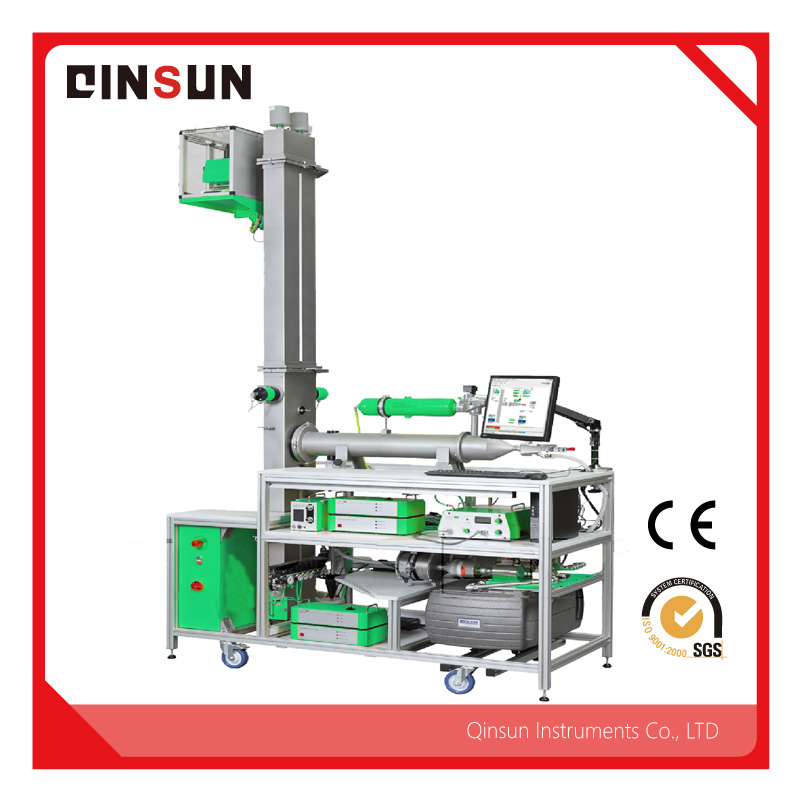

Filter Material Testing Machine
This filter material testing machine optimizes and develops filter materials, ensuring quality assurance during production. It tests filter materials according to international standards, focusing on dust capacity and filtration efficiency relative to pressure difference and particle size.
Technical Specifications
Overview
Comprehensive Filter Material Analysis
This advanced test bench is designed to optimize and develop filter materials while ensuring rigorous quality assurance throughout the production process. It provides a compact, laboratory-ready solution that evaluates critical properties like dust capacity, filtration efficiency, and pressure resistance. By utilizing standardized testing protocols, the system delivers reliable data for research, development, and industrial quality control.
Key Features
Testing Capabilities
- Dust capacity testing across wide concentration ranges
- Grading and counting filter efficiency analysis
- Weight-based filtration efficiency measurement
- Differential pressure vs. flow rate evaluation
- Pulse cleaning performance and aging tests
- Supported Standards
- EN 779ISO 11155-1ISO 11057VDI 3926ISO 5011DIN 71460
Technical Specifications
Particle Size Measurement Range
0.2 μm
Minimum Size
40 μm
Maximum Size
- Tube Material
- 1.4301 Stainless Steel
- Test Pipe Diameter
- 100 mm
System Integration
Software Capabilities
- Automated experimental testing per standards
- Real-time data acquisition and recording
- Manual control and calibration management
- Maintenance scheduling prompts
Utility Requirements
Single-phase powerCompressed air
