Engine Piston Ring Set
Piston ring sets are essential components for sealing the combustion chamber and ensuring efficient combustion. These rings transfer heat from the piston to the cylinder wall and regulate oil consumption.
Technical Specifications
Product Overview

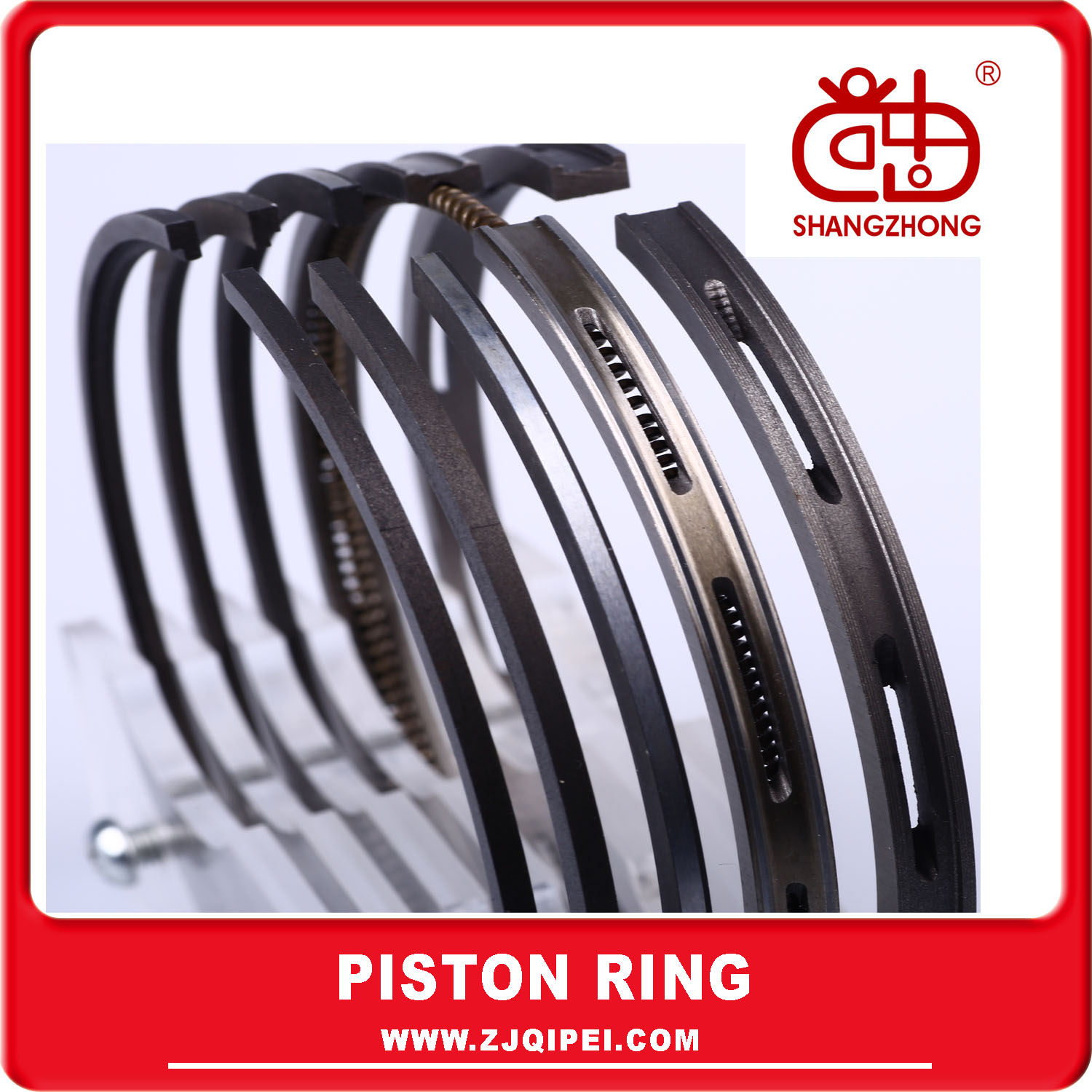

High-Performance Piston Ring Set
This precision-engineered piston ring set is designed for optimal engine sealing and durability, ensuring efficient combustion and reduced oil consumption. Engineered to withstand high temperatures and pressures, these components are essential for maintaining engine longevity and performance. The set is specifically tailored for compatibility with Perkins 4.236 and 6.354 engine models.
Engine Compatibility
Cylinder Configuration
- 4 cylinders
- 6 cylinders
- Compatible Engine Models
- PERKINS 4.236PERKINS 6.354
Technical Specifications
- OEM Reference Number
- 41158041
- Diameter
- 98.48 mm
- Ring Sizes
- 2.38 + 2.38 + 2.38 + 6.35 + 6.35 mm
Material Composition
Material Specifications
| Component | Material Grade |
|---|---|
| 1st Ring | KV1 |
| 2nd Ring | K1 |
| 3rd Ring | K1 |
| 4th Ring | K1 |
| Oil Ring | K1 DSF |
