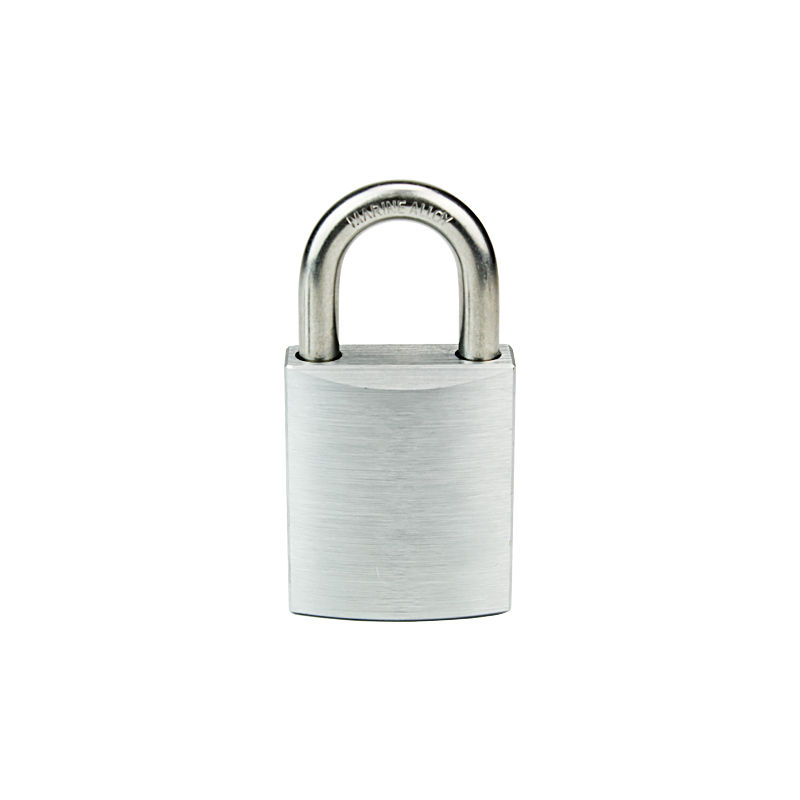

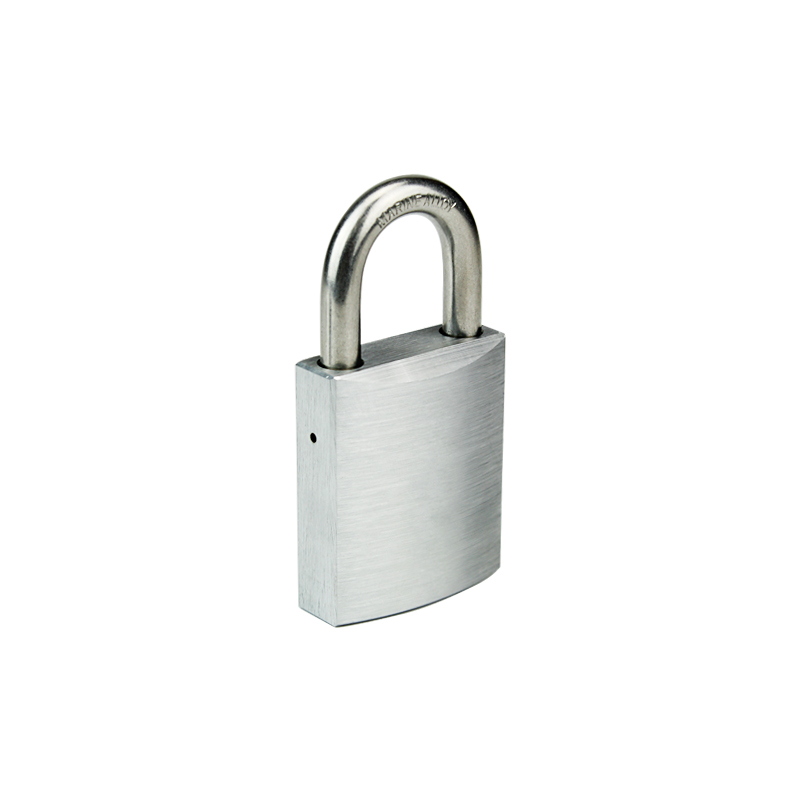

Electronic Key Smart Padlock
This smart padlock uses an electronic key for access control, offering enhanced security. The padlock body is constructed from durable materials for resistance to physical attacks.
Technical Specifications
Product Overview
Advanced Key-Centric Access Control
The Electronic Key Smart Padlock is a high-security, passive electronic locking solution designed for robust access management without the need for internal power or wiring. By utilizing unique, re-programmable smart keys and sophisticated management software, security managers can easily authorize access, track unlocking events, and instantly disable lost keys. This system combines the physical strength of stainless steel construction with the digital intelligence of audit trails and two-way identity authentication.
Core Technology
Power Requirement
Passive (No Battery)No Wiring RequiredMaintenance Free
Security Features
- Two-way identity authentication
- Re-programmable unique smart keys
- Audit trail (records every unlocking event)
- Blacklist capability for lost/stolen keys
- System Type
- Key-centric passive electronic access control
Technical Specifications
Performance Metrics
10 Years
Service Life
68 IP
Protection Level
Operating Environment
| Parameter | Range |
|---|---|
| Working Temperature | -40°C to 70°C |
| Working Humidity | 20% to 97% |
Physical Construction
Materials & Build
- Lock Body: SUS304 Stainless Steel
- Lock Beam: SUS304 Stainless Steel
- Locking Structure: Double bead single spring
- Core Components: High-grade Stainless Steel
Model Variations
Model Dimensions & Finish
| Model | Beam Diameter | Beam Height (Min) | Surface Treatment |
|---|---|---|---|
| WM-2000B-S35 | N/A | 30mm | Natural Color Drawing |
| WM-2000B-S40 | 6.5mm | 27mm | Copper Drawing Passivation |
| WM-2000B-S45 | 8.0mm | 27mm | Copper Drawing Passivation |
| WM-2000B-S55 | 10.0mm | 27mm | Sand Chrome |
Compliance & Applications
Ideal Applications
- Transportation management
- Cabinet and storage security
- Industrial gates and sheds
- Remote infrastructure sites
- Certifications
- CERoHSISO 9001IP68
