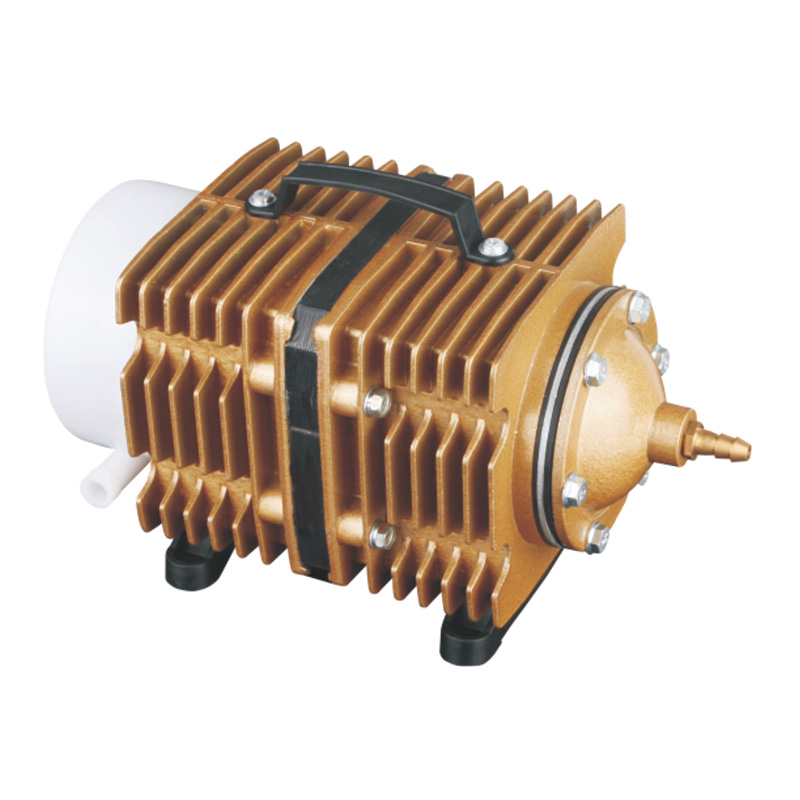

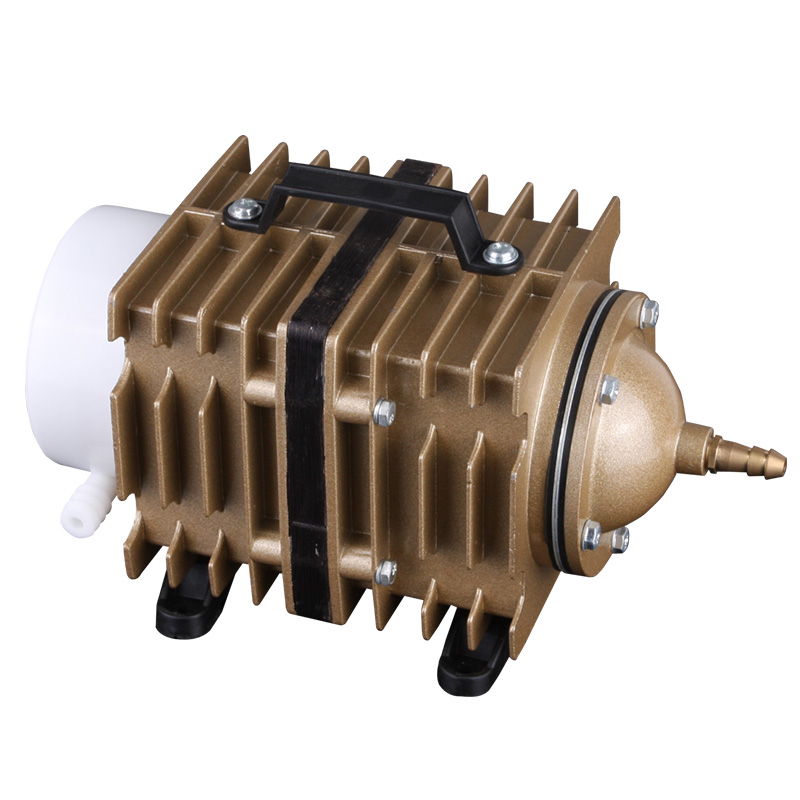

Electromagnetic Air Compressor Pump
This electromagnetic air compressor pump operates without oil, reducing noise and air pollution. Its cylinders and pistons are made from durable materials, ensuring minimal wear and long-term reliability.
Technical Specifications
Overview
High-Efficiency Electromagnetic Air Compression
The ACO series electromagnetic air compressor pump is engineered for high-performance aeration and oxygenation in aquaculture, wastewater treatment, and industrial processes. Featuring an oil-free design and high-quality aluminum alloy construction, it ensures rapid heat dissipation and a long service life with minimal wear. This compact and energy-efficient solution provides stable airflow with significantly lower power consumption compared to traditional structures.
Performance Highlights
Key Performance Metrics
520 W
Max Power
450 L/min
Max Output
0.05 MPa
Max Pressure
Technical Specifications

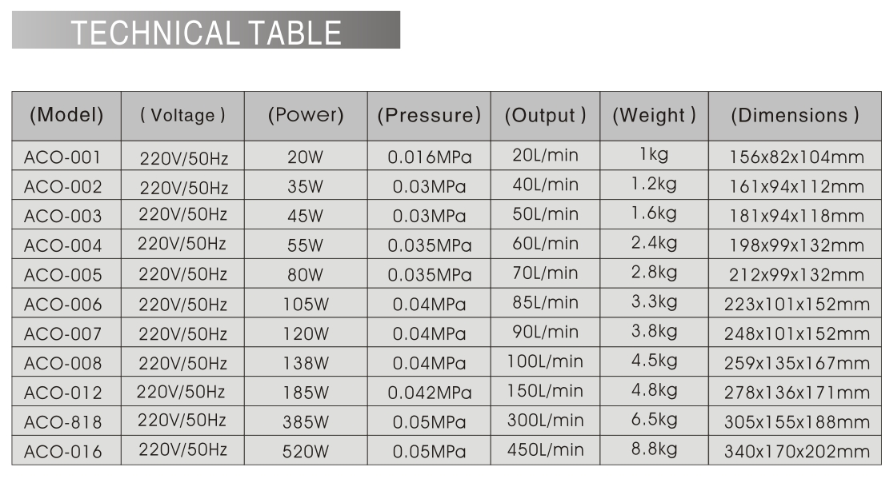

Model Comparison Data
| Model | Power (W) | Pressure (MPa) | Output (L/min) | Weight (kg) |
|---|---|---|---|---|
| ACO-001 | 20 | 0.016 | 20 | 1 |
| ACO-002 | 35 | 0.03 | 40 | 1.2 |
| ACO-003 | 45 | 0.03 | 50 | 1.6 |
| ACO-004 | 55 | 0.035 | 60 | 2.4 |
| ACO-005 | 80 | 0.035 | 70 | 2.8 |
| ACO-006 | 105 | 0.04 | 85 | 3.3 |
| ACO-007 | 120 | 0.04 | 90 | 3.8 |
| ACO-008 | 138 | 0.04 | 100 | 4.5 |
| ACO-012 | 185 | 0.042 | 150 | 4.8 |
| ACO-818 | 385 | 0.05 | 300 | 6.5 |
| ACO-016 | 520 | 0.05 | 450 | 8.8 |
- Standard Voltage
- 220V / 50Hz
Design & Construction
Build Quality
- Durable aluminum alloy casing for rapid heat dissipation
- High-quality cylinder and piston materials for low wear
- Finned metal housing for thermal management
- Integrated handle for portability
- Rubber feet for vibration dampening and stability
Drive Mechanism
Electromagnetic Motor
Operational Advantages
- Operational Benefits
- Oil-FreeLow NoiseEnergy SavingCompact DesignSmooth OperationLow Maintenance
