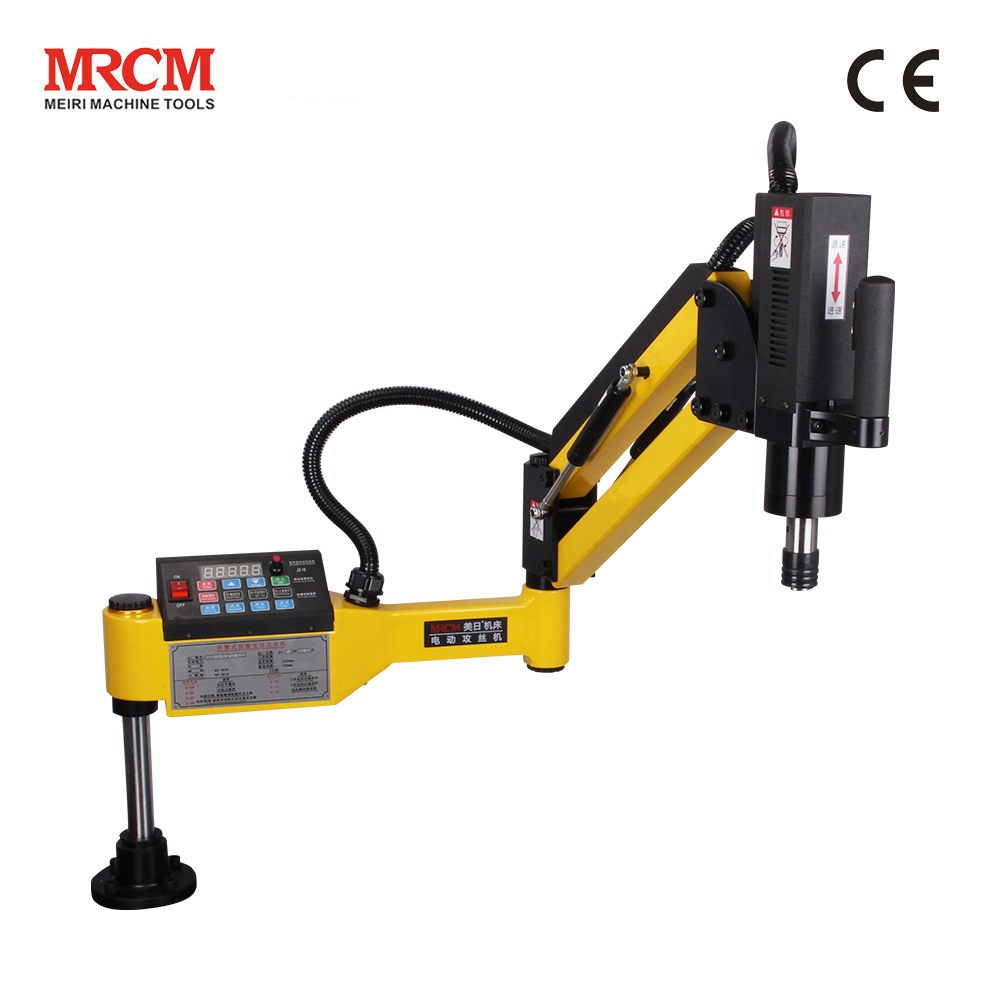

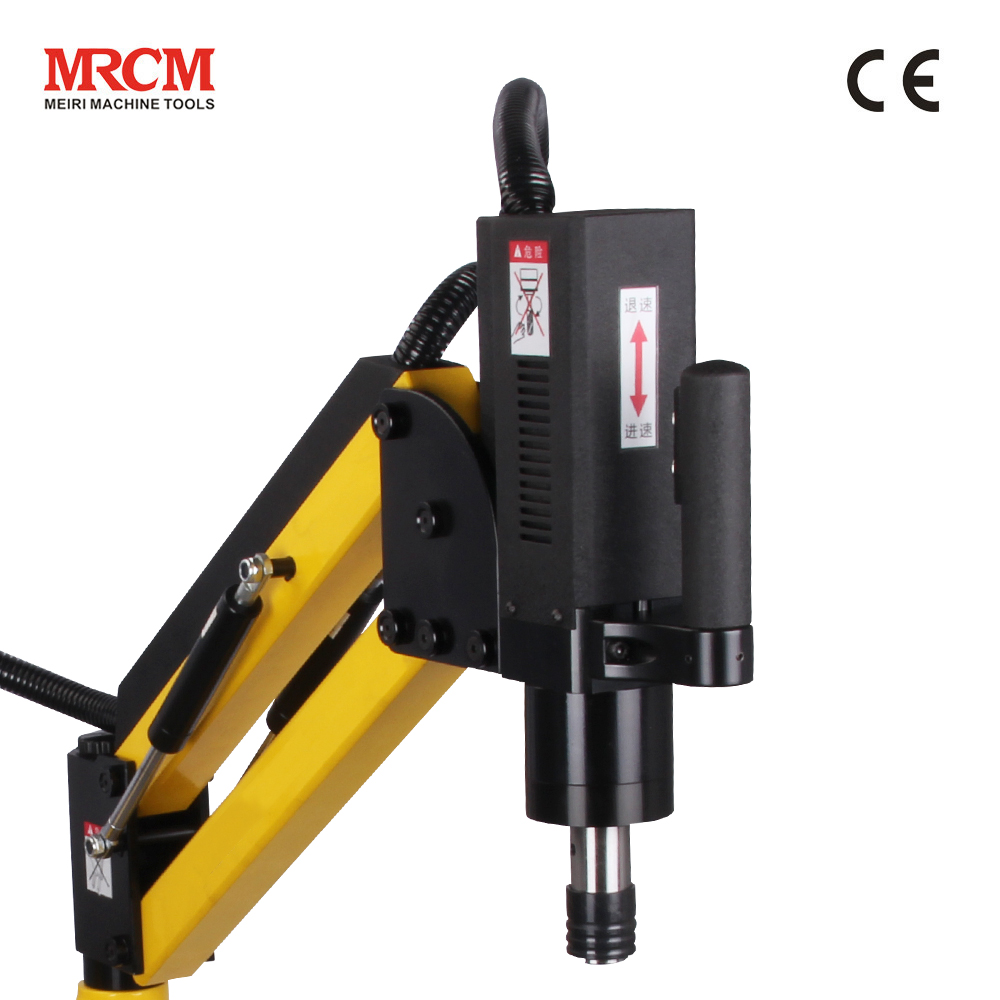

Electric Threading Machine
This electric tapping machine is designed for precise and efficient threading operations. Its articulated arm provides flexibility, making it suitable for various industrial applications requiring accurate and repeatable tapping.
Technical Specifications
Overview
High-Efficiency Electric Tapping Solution
This electric tapping machine utilizes advanced servo drive control to offer intelligent torque protection, effectively replacing traditional manual or lathe-based tapping methods. Designed for industrial durability, its robust mechanical construction ensures rigidity and deformation resistance during heavy-duty operations. The system features a high-definition touch screen for precise, flexible control, supporting vertical and horizontal processing for complex workpieces with high production efficiency.
Key Features
Capabilities & Design
- Intelligent torque protection
- Stepless speed change
- Depth control via controller
- High-definition touch interface
- Robust mold-cast construction
- Operating Modes
- ManualAutomaticLinkage
Technical Specifications
Model Specifications
| Model | Power (W) | Speed (RPM) | Tap Range |
|---|---|---|---|
| MR-DS16 | 600 | 0-312 | M3-M16 |
| MR-DS30 | 1,200 | 0-150 | M6-M30 |
| MR-DS36 | 1,200 | 0-150 | M6-M36 |
Electrical Requirements
220 V
Voltage
50 HZ
Frequency
Certifications
Safety & Compliance
CE Certified
