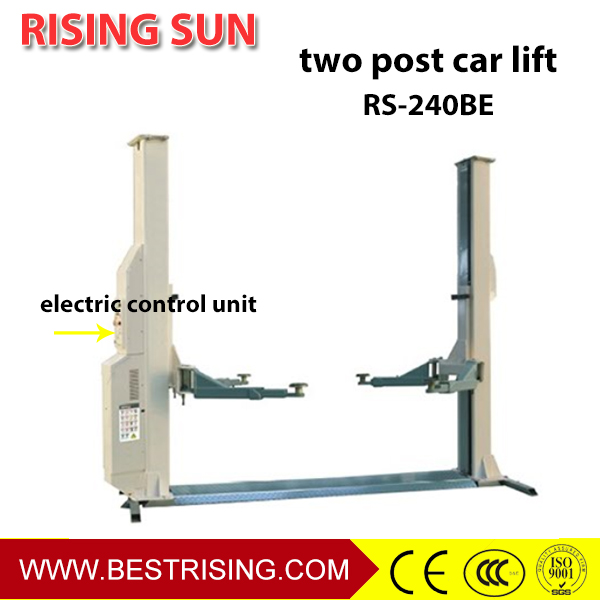

Electric Release Two-Post Car Lift
This electric release two-post car lift is designed for lifting vehicles in automotive repair shops and garages. The lift features an electric control unit for ease of operation and precise positioning.
Technical Specifications
Overview
Professional Two-Post Vehicle Lift
This electric release two-post car lift is engineered for efficiency and safety in automotive repair environments. Featuring an automatic arm locking system and built-in motor overload protection, it ensures reliable operation for daily workshop tasks. Its floor plate design makes it an ideal solution for facilities with height restrictions, while the cable leveling system guarantees synchronization regardless of load distribution.
Performance Metrics
Lifting Capacity
4,080 kg
Rated Capacity
Operational Timing
| Operation | Time |
|---|---|
| Lifting Time | 55-65s |
| Lowering Time | 50s |
Dimensions
Physical Dimensions
- Max lifting height: 1850mm
- Overall height: 2900mm
- Overall width: 3605mm
- Width between columns: 2795mm
Safety & Features
- Safety Features
- Mechanical safetiesAutomatic engagementMotor overload protectionAutomatic height stopHydraulic cylinder protectorOverhead shut-off
Technical Specifications
Quality Testing
Dynamic test: 115% capacityStatic test: 150% capacity
- Power Supply
- 110V/220V/380V 50HZ/60HZ 1PH/3PH
