Dual Submersible Macerator Pump System
This dual pump macerator system is designed for efficient wastewater management, integrating two submersible pumps with an intelligent control panel for automated operation. It is suitable for residential or commercial applications where wastewater needs to be pumped to a higher elevation or over a distance.
Technical Specifications
Product Overview

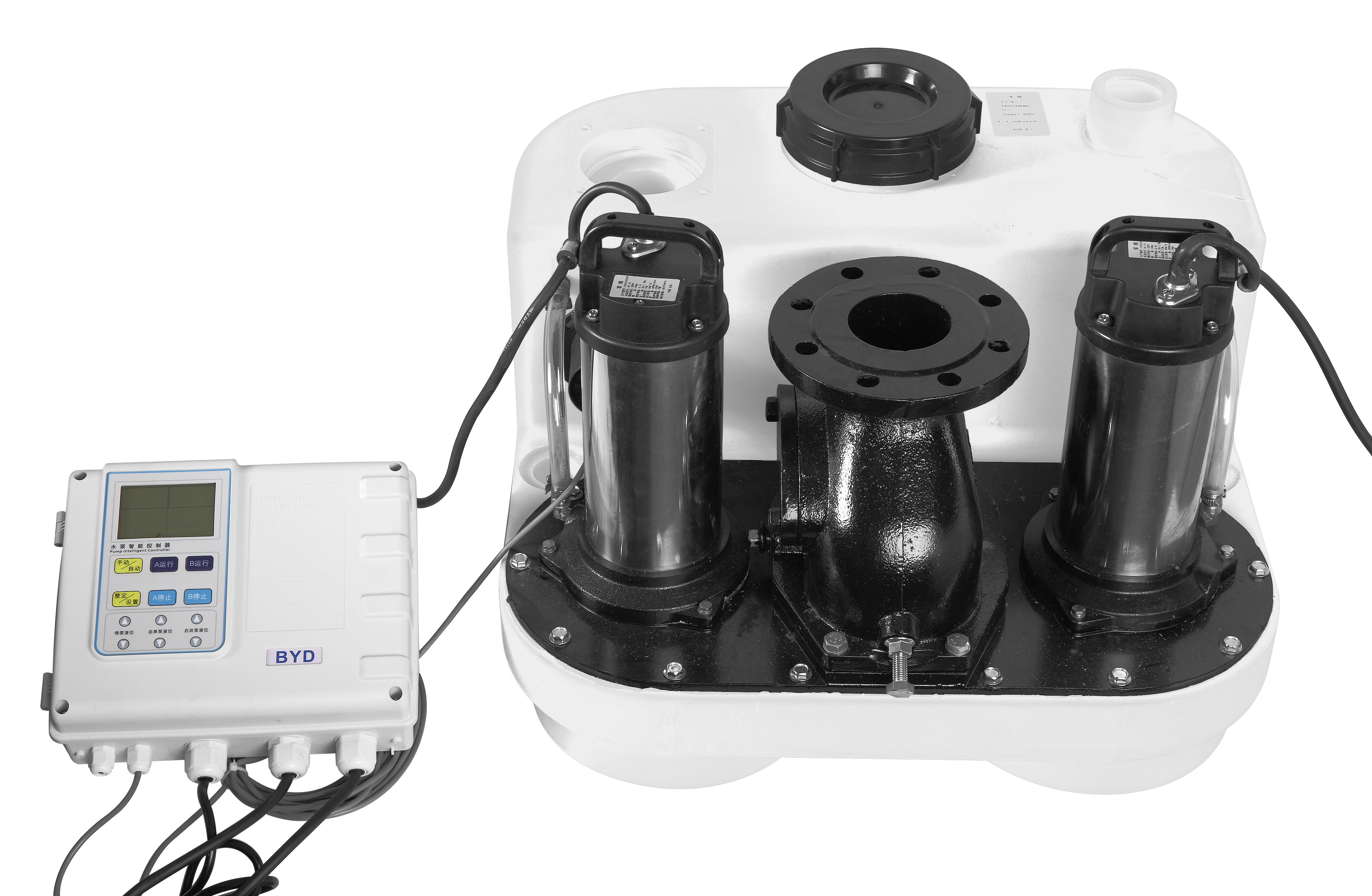

Dual Submersible Macerator Pump System
This dual pump macerator system is engineered for efficient wastewater management in both residential and commercial environments. It features two submersible pumps integrated with an intelligent control panel, allowing for automated operation and reliable performance. Designed for locations where gravity drainage is not feasible, such as basements or areas below the main sewer line, this system effectively grinds and pumps sewage to higher elevations or over long distances.
Technical Specifications
Performance Capacity
Performance Curve Data
| Head (m) | Flow (m³/h) |
|---|---|
| 1 | 37 |
| 3 | 33 |
| 5 | 26 |
| 7 | 20 |
| 9 | 15 |
| 11 | 10 |
| 13 | 1 |
Control System
Control Panel Features
- Intelligent digital display
- Manual and automatic operation modes
- Individual pump control (A/B)
- Adjustable pump activation/stop levels
- Automated pump start/stop logic
System Features
- Key Features
- Dual Pump SystemSubmersibleWastewater ManagementHeavy Duty MaceratorAutomated Control
