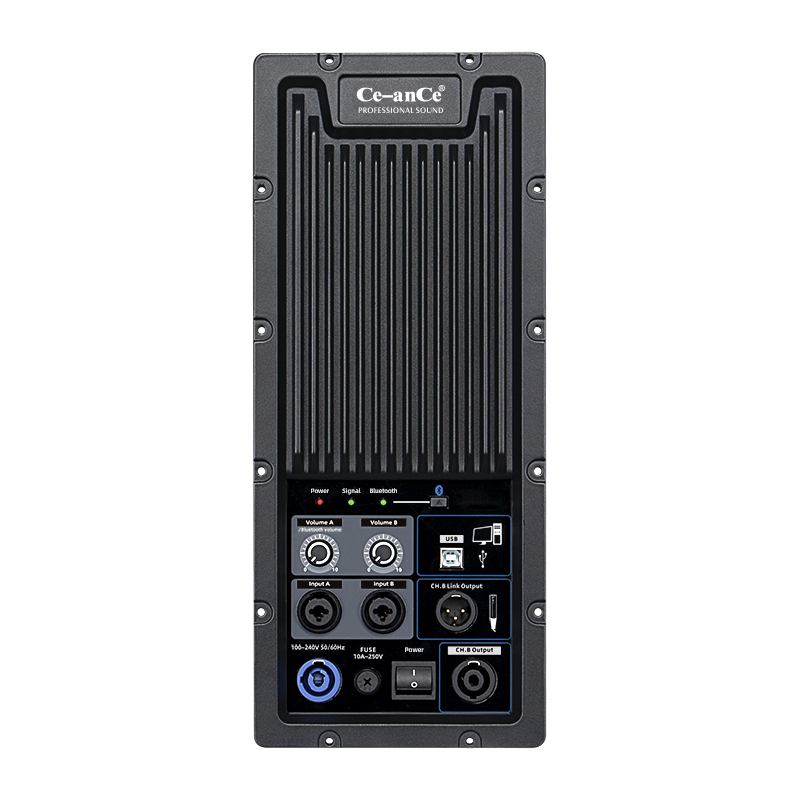

Dual Channel 500W Audio Amplifier Module
This Class D audio amplifier module features a full band with PWM modulator, ensuring ultra-low distortion. It is equipped with a DSP processor and delivers 500W per channel.
Technical Specifications
Product Overview
High-Performance Class D Amplification
This dual-channel amplifier module is engineered for professional audio applications, delivering a robust 500W per channel. Utilizing advanced PWM switching technology, it achieves high efficiency and ultra-low distortion across the full audio frequency range. The unit comes equipped with a comprehensive integrated cooling system, ensuring stable and reliable performance for demanding sound reinforcement tasks.
Audio Performance
Power Output
500 W
Per Channel
Technical Specifications
| Parameter | Value |
|---|---|
| Signal To Noise-Ratio | > 100 dB |
| THD+N (typical) | < 0.05% |
| Frequency Response | 20 Hz - 20 kHz |
| Damping Factor | > 800 |
Physical & Electrical
Cooling System
HeatsinkActive Fans
- Power Supply
- AC220V/50HzAC110V/60Hz
- Dimensions
- 380 x 160 x 80 mm
- Net Weight
- 2.5 kg
Connectivity & Interface
Interface Features
- Dual volume controls (Channel A & B)
- USB connectivity
- Channel B link output
- Input A and B ports
- 10A-250V integrated fuse
