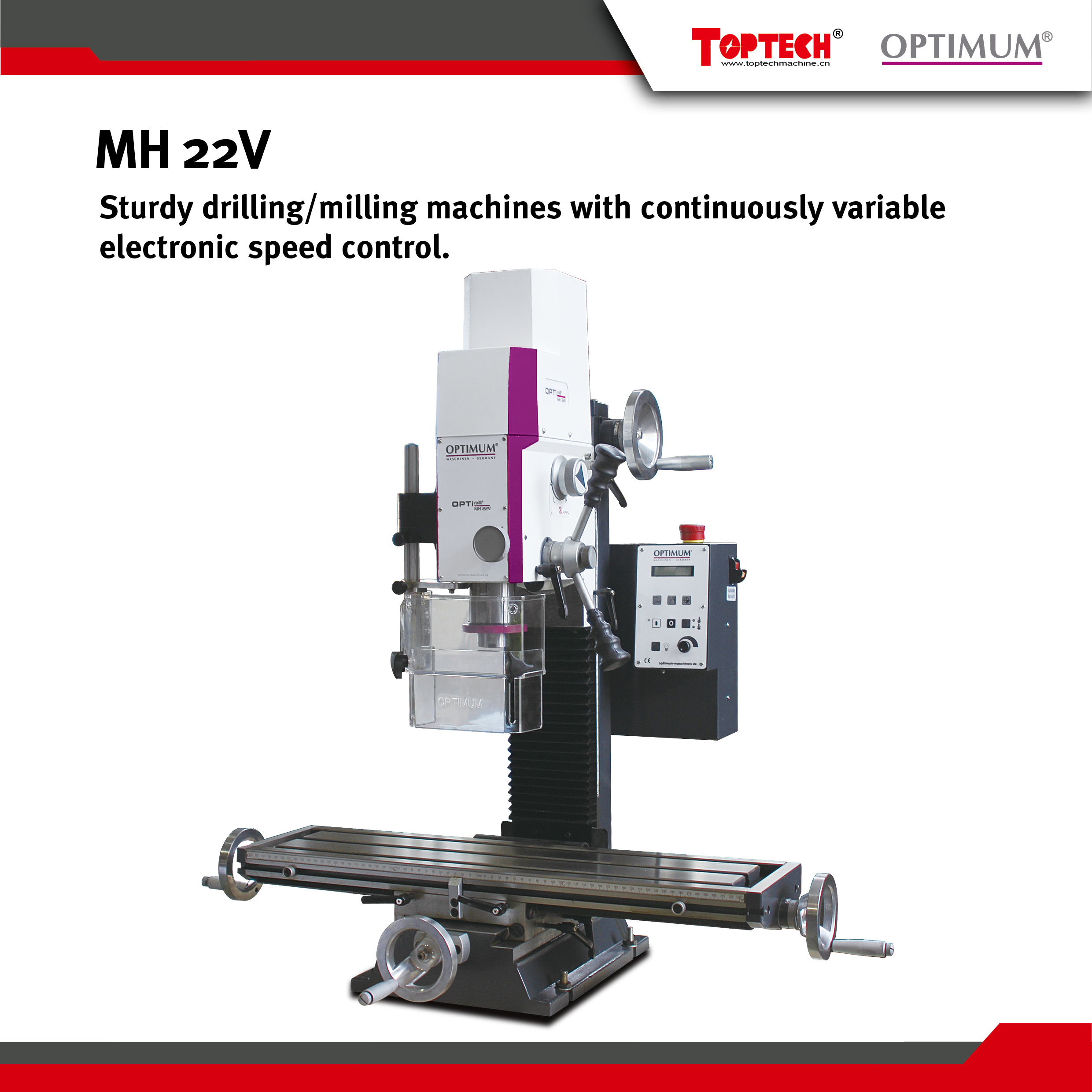

Drilling and Milling Machine with Variable Speed
This drilling and milling machine features a two-step gear transmission and an electronic infinitely variable drive ranging from 100-3000rpm. Its drill head can be inclined by ±90°, allowing milling and drilling operations at any angular position.
Technical Specifications
Overview
Versatile Precision Machining
This drilling and milling machine features a two-step gear transmission with an electronic infinitely variable drive, offering a speed range of 100 to 3000 rpm. Designed for stability and accuracy, it utilizes ground dovetail guides and a flexible drill head that inclines up to 90 degrees for multi-angle operations. The intuitive touch panel and magnetic-scale sleeve travel display ensure easy operation for professional metalworking environments.
Performance Metrics
Key Performance Metrics
600 W
Motor Power
3,000 rpm
Max Speed
90 °
Head Tilt
Technical Specifications
- Spindle Speed
- 100 - 3000 rpm (Electronic infinitely variable)
- Power Supply
- 220V - 240V, 50/60Hz
- Tool Holding Fixture
- BT20 with simple tool-change system
Design & Construction
Standard Features
- Two-step gear-transmission
- Touch panel operation
- LED work lamp
- Magnetic-scale for sleeve travel
- Double-layer height-adjustable chuck guard
- Integrated coolant system
- Guide System
- Precisely ground stable dovetail guide
Compliance & Safety
Certifications
CE
