Disc and Drum Brake Lathe
This lathe is designed to resurface both disc and drum brakes. It features variable speed control and a comprehensive set of adaptors for different brake sizes.
Technical Specifications
Overview
Professional Disc and Drum Brake Lathe
The C9372 is a precision-engineered machine tool designed for high-efficiency resurfacing of both brake rotors and drums. It features variable spindle and cross-feed speeds to ensure a perfect finish that meets or exceeds OEM specifications in a single pass. Built with a heavy work bench to minimize vibration and equipped with automatic shut-off switches, this lathe provides a safe, stable, and professional solution for automotive repair shops.
Performance Highlights
Performance Metrics
150 lbs
Spindle Capacity
320 RPM
Max Spindle Speed
24 in
Max Rotor Diameter
Technical Specifications
Machining Capacities
| Parameter | Imperial Range | Metric Range |
|---|---|---|
| Rotor Diameter | 4" - 24" | 102 - 610mm |
| Drum Diameter | 6" - 19.5" | 152 - 500mm |
| Flywheel Diameter | 6" - 24" | 152 - 610mm |
| Max Rotor Thickness | 2.85" | 73mm |
| Drum Depth | 6.5" | 165mm |
- Feed Rates
- 0" - 0.026" (0mm - 0.66mm) for rotor and drum
- Feed Rate Per Minute
- 64.5 mm
Power & Physical
- Motor Power
- 110V/220V, 50/60Hz
- Gross Weight
- 300 kg
- Machine Dimensions
- 1100 x 730 x 720 mm

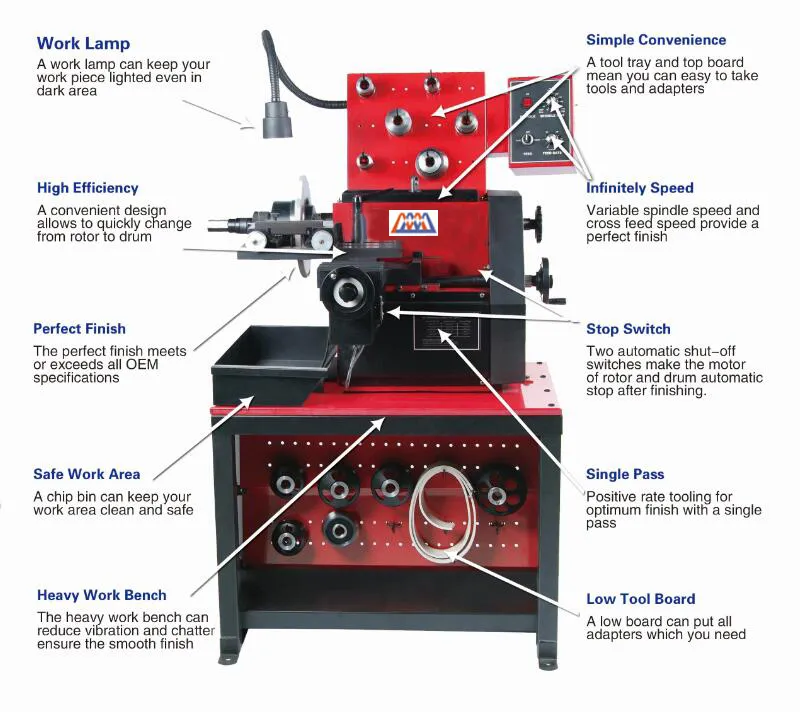

Features
Operational Features
- Infinitely variable spindle and cross feed speeds
- Two automatic shut-off switches for safety
- Integrated work lamp for dark areas
- Dedicated chip bin for clean work area
- Tool tray and low tool board for adapter storage
- Heavy work bench to reduce vibration and chatter
Quality & Service
Service Benefits
- Direct manufacturer pricing
- Guaranteed delivery time
- Research and Development for market needs
- Product process tracking
- Engineering inspection services
- Quality Standards
- ISOCE
