Digital Pneumatic Fabric Stiffness Tester
This instrument measures fabric bending performance, an important physical parameter related to crispness, drape, and softness. It uses bending length and bending stiffness to express a fabric's resistance to changes in shape.
Technical Specifications
Overview
Professional Fabric Stiffness Analysis
The Digital Pneumatic Fabric Stiffness Tester is a precision instrument designed to evaluate the bending performance, drape, and softness of textiles. By measuring bending length and stiffness through a slope cantilever method, it provides a quantitative assessment of a material's resistance to deformation. This automated system is essential for quality control in industries working with woven, knitted, and non-woven fabrics, as well as leather and film.
Key Features
Detection Technology
- Infrared beam 'stealth' detection slope for non-contact measurement
- Adjustable measurement tilt angles
- Automatic detection system to enhance anti-jamming
- Pneumatic sample pressure plate with automatic landing for consistent positioning
Measurement Performance
Performance Metrics
0.01 cm
Display Resolution
1 +/- %
Measurement Accuracy
45 W
Rated Power

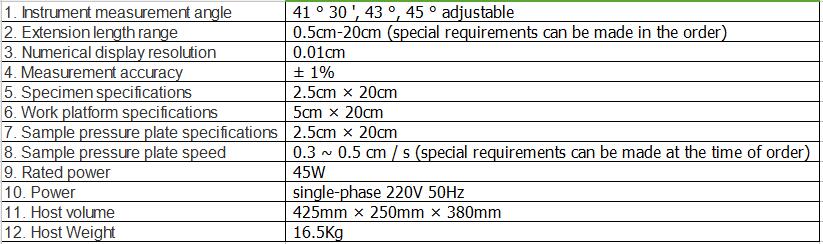

Technical Specifications
- Measurement Angles
- 41° 30'43°45°
- Extension Length Range
- 0.5cm - 20cm
- Pressure Plate Speed
- 0.3 ~ 0.5 cm/s
Physical Dimensions
Component Specifications
| Component | Dimensions |
|---|---|
| Specimen Size | 2.5cm x 20cm |
| Work Platform | 5cm x 20cm |
| Pressure Plate | 2.5cm x 20cm |
| Host Volume | 425mm x 250mm x 380mm |
- Host Weight
- 16.5 Kg
Compliance & Standards
Testing Standards
- GB / T18318.1-2009
- ZB W04003-87
Certifications
CEISO 9001:2000
Applications
- Compatible Materials
- CottonWoolSilkLinenChemical FiberKnitted FabricsNon-woven FabricsCoated FabricsPaperLeatherFilm
Power Requirements
- Power Supply
- Single-phase 220V 50Hz
