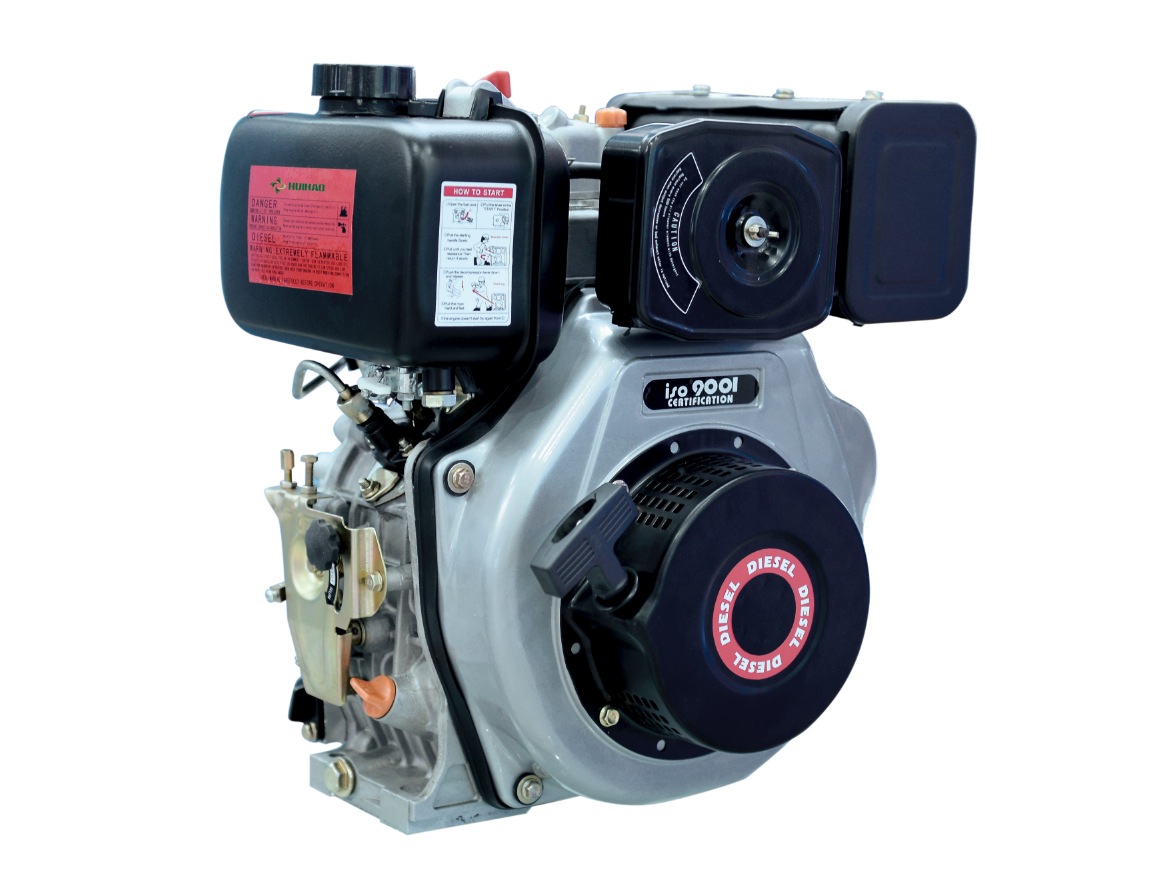

Diesel Engine
This diesel engine is designed for a variety of demanding applications. It features robust construction, efficient fuel consumption, and reliable operation.
Technical Specifications
Overview
Versatile Single-Cylinder Diesel Engine
This air-cooled, four-stroke diesel engine series is designed for reliable performance across agricultural, engineering, and domestic applications. Featuring a direct injection combustion system, these engines offer high efficiency with low fuel consumption, making them an economical choice for continuous operation. The robust construction ensures durability in demanding environments like shopping malls or construction sites.
Performance Metrics
Key Performance Data
418 cc
Displacement (HH186)
9.3 hp
Max Output
3,600 rpm
Engine Speed
Technical Specifications
Engine Configuration
- Single-cylinder
- Vertical
- 4-stroke
- Air-cooled
- Direct injection combustion
- Starting System
- Recoil StartElectric Start (Key Start)
- Compression Ratio
- 19 :1
Model Comparison
Engine Model Specifications
| Model | Bore x Stroke (mm) | Rated Output (hp) | Fuel Tank (L) |
|---|---|---|---|
| HH170F | 70 x 55 | 3.4 - 3.8 | 2.5 |
| HH178FA | 78 x 64 | 5.0 - 5.4 | 3.5 |
| HH186FA | 86 x 72 | 8.2 - 8.5 | 5.5 |
| HH188FA | 88 x 75 | 9.0 - 9.5 | 5.5 |
| HH192FA | 92 x 75 | 10.0 - 10.5 | 5.5 |
Physical Properties
- Dimensions (LxWxH)
- 510 x 475 x 550 mm
- Net Weight
- 50 kg
- Lube Oil Capacity
- 1.65 L
Compliance & Applications
Certifications
ISO 9001
Recommended Uses
- Agricultural Machinery
- Engineering Equipment
- Family Power Backup
- Shopping Mall Facilities
