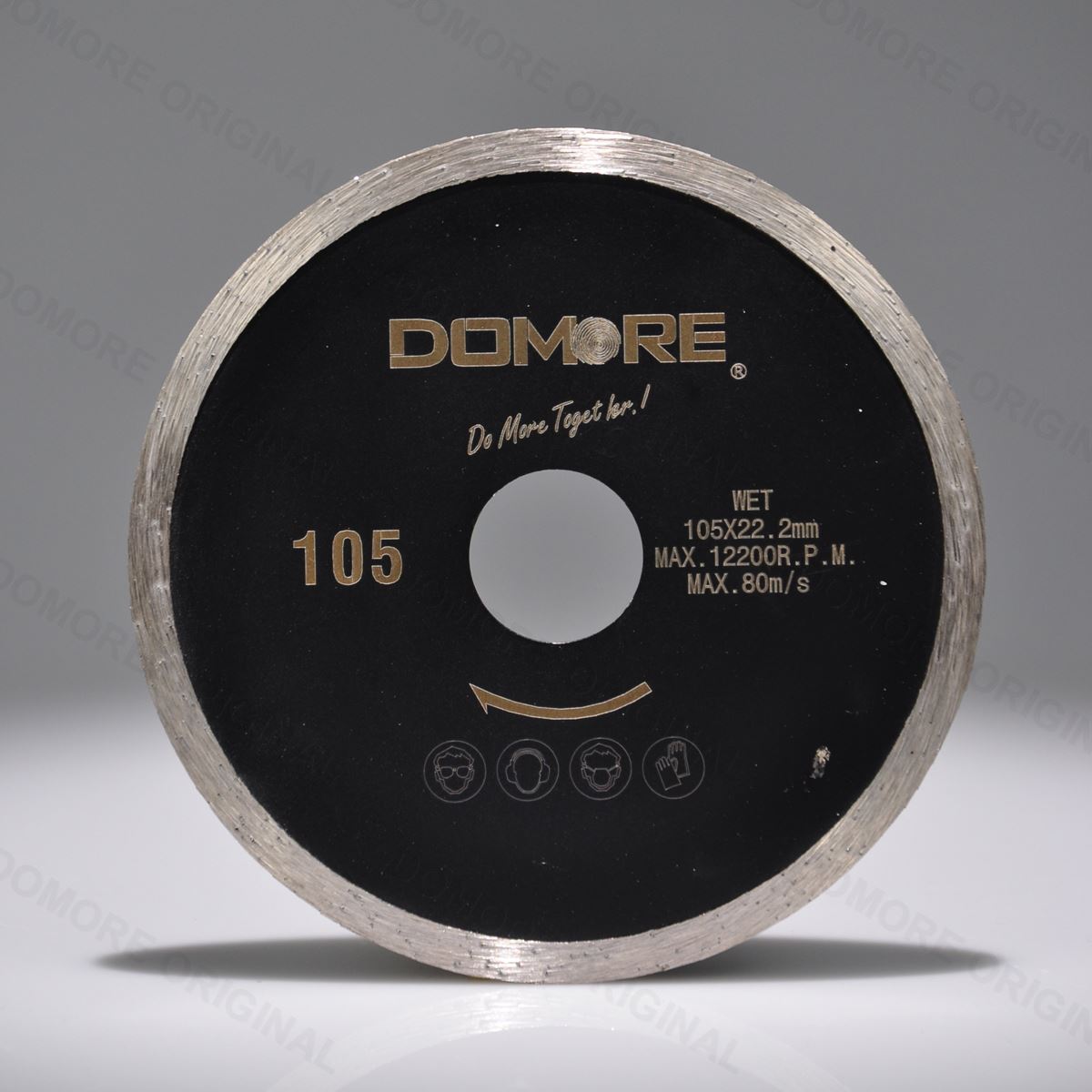

Diamond Saw Blade for Wet Cutting
This diamond saw blade is designed for wet cutting applications. It has a maximum operating speed of 12200 RPM and a maximum linear speed of 80m/s.
Technical Specifications
Product Overview
High-Performance Wet Cutting
These hot-pressed diamond saw blades are engineered for superior durability and precision. Utilizing advanced hot-pressing technology, they offer significantly higher density, increased sharpness, and a longer service life compared to standard sintered discs. Designed specifically for wet cutting applications, these blades ensure safety and efficiency for professional tasks.
Performance Features
Required Safety Gear
- Eye protection
- Hearing protection
- Dust mask
- Gloves
- Key Advantages
- Hot-Pressed TechnologyHigh DensityExtended Service LifeEnhanced SharpnessWet Cutting Optimized
Technical Specifications
Available Sizes and Specifications
| Outer Diameter (inch) | Outer Diameter (mm) | Inner Diameter (mm) | Segment Dim (T x H) |
|---|---|---|---|
| 4" | 105 | 16/20/22.23 | 1.8x5.0 |
| 4.3" | 110 | 16/20/22.23 | 1.9x5.0 |
| 4.5" | 115 | 22.23 | 1.9x5.0 |
| 5" | 125 | 22.23 | 1.9x5.0 |
| 6" | 150 | 22.23 | 1.9x5.0 |
| 7" | 180 | 22.23/25.4/30 | 2.2x5.0 |
| 8" | 200 | 22.23/25.4/30 | 2.4x5.0 |
| 9" | 230 | 22.23/25.4/30/50 | 2.4x5.0 |
| 10" | 250 | 22.23/25.4/30/50 | 3.0x6.0 |
| 12" | 300 | 22.23/25.4/30/50 | 3.2x6.0 |
| 14" | 350 | 22.23/25.4/30/50 | 3.2x6.0 |
Operating Limits
12,200 RPM
Max Operating Speed
80 m/s
Max Linear Speed
