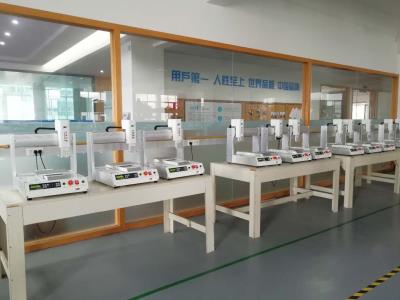

Desktop Dispensing Robot for LED Reflective Light Coating
This desktop industrial robot is designed for precise dispensing applications, particularly for coating LED reflective lights. It features a 2600ml tank for holding coating materials.
Technical Specifications
Overview
Precision Dispensing for LED Manufacturing
This desktop industrial robot is engineered for high-precision dispensing of high-viscosity fluids, specifically optimized for LED reflective light coating applications. Featuring a large 2600ml tank system, it ensures consistent, uniform bead dispensing while significantly increasing production efficiency and reducing material waste. With advanced motion control and programmable patterns, it offers manufacturers a reliable solution for improving product quality and lowering overall production costs.
Technical Specifications
Model Specifications
| Feature | 300 Series | 400 Series | 500 Series |
|---|---|---|---|
| Working Range (mm) | 300 x 300 x 100 | 400 x 400 x 100 | 500 x 500 x 100 |
| Dimensions (mm) | 500 x 580 x 610 | 600 x 680 x 610 | 700 x 780 x 610 |
| Weight (kg) | 35 | 36 | 42 |
Performance Metrics
0.02 mm
Repeatability
8 kg
Max Load (XY)
2 kg
Max Load (Z)
600 mm/s
XY Speed
Dispensing Capabilities
- Compatible Materials
- AdhesiveGlueSiliconeRTVSealantPaste Adhesive
- Dispensing Patterns
- 3D LinesCirclesArcsContinuous PathsXYZ Simultaneous
System & Control
- Programming Method
- Teach pendant
- Data Memory Capacity
- 999 programs
- I/O Signals
- 4 Inputs / 4 Outputs
- Drive System
- Micro-stepper motor with Timing Belt/Precision Linear Guides
Accessories Included
Standard Accessory Kit
- Robotic Unit
- Teach pendant with fix frame
- 2600ml Tank
- Rotary valve cartridge
- Dispenser fix frame
- Air tube
- Manual and Video Tutorial (U disk)
- CE Certificate
