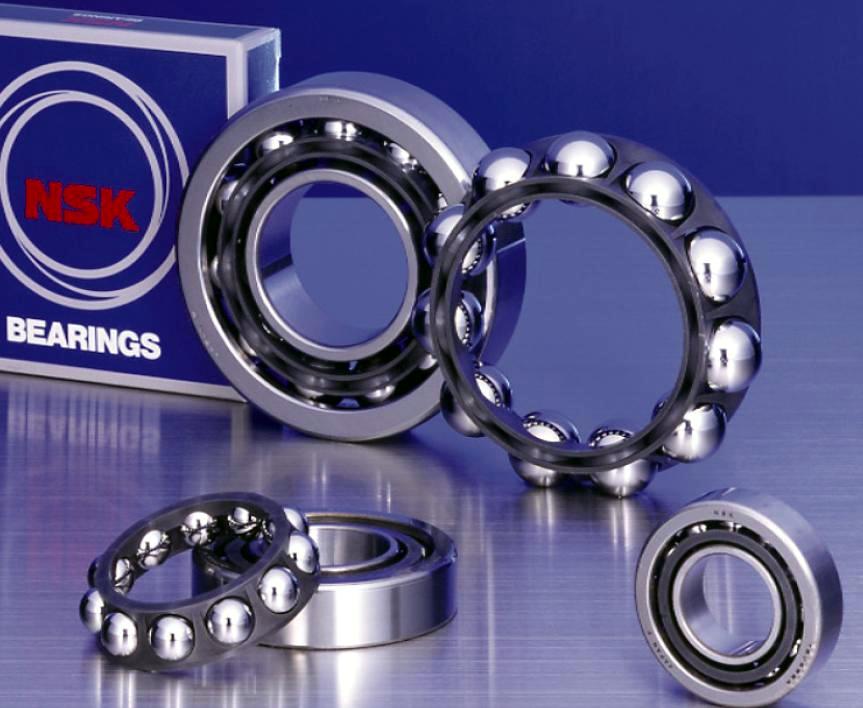

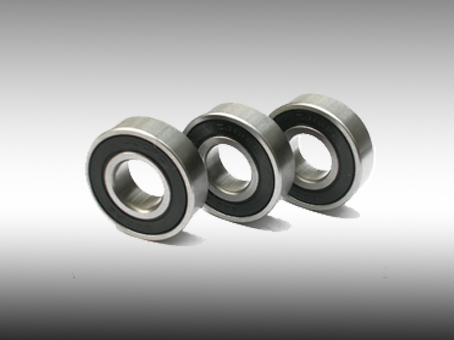

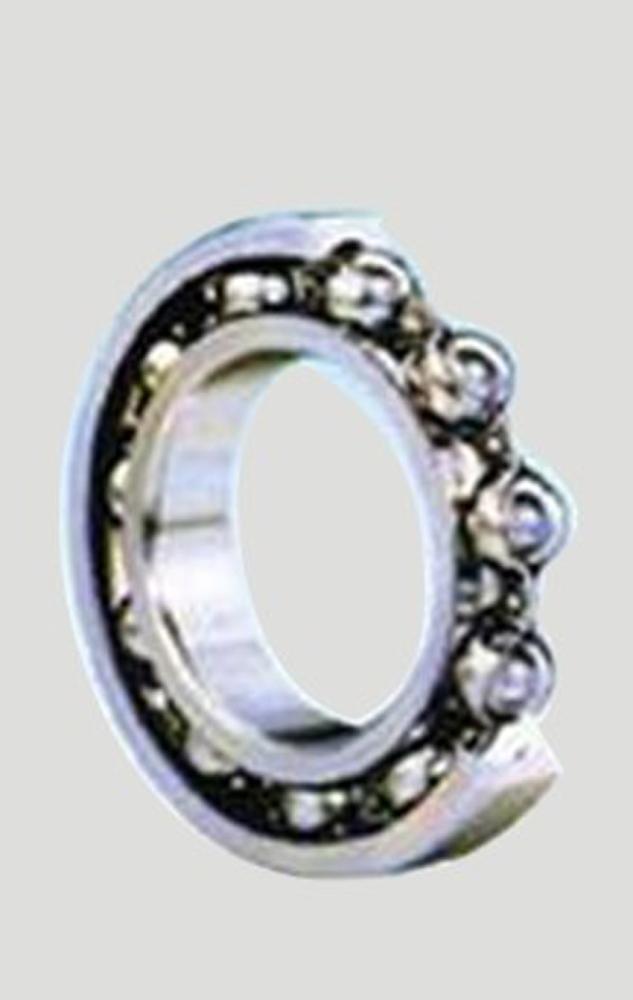

Deep Groove Radial Ball Bearing
These deep groove ball bearings are designed to support both radial and axial loads. The hardened steel balls and races ensure smooth, efficient operation and reduced friction.
Technical Specifications
Product Overview
High-Precision Radial Bearings
These deep groove radial ball bearings are engineered for optimal performance and durability in demanding industrial environments. Featuring hardened steel construction, they offer low friction and high-speed capability, making them ideal for electric motors, gearboxes, pumps, and other rotating machinery. The range includes various configurations to support both radial and axial loads, ensuring reliability and extended service life.
Technical Specifications
Available Bearing Types
- Deep Groove Ball Bearing
- Pillow Block Bearing
- Bearing Unit
- Row Configuration
- Single RowDouble RowInch Type
- Precision Class
- P0P6P5P4P2
- Internal Clearance
- C0C1C2C3C4C5
- Construction Materials
- GCr15GCr15SiMnStainless Steel
Performance Data
Standard Model Specifications
| Model | d (mm) | D (mm) | B (mm) | Cr (kN) | Cor (kN) | Weight (kg) |
|---|---|---|---|---|---|---|
| 6206 | 30 | 62 | 16 | 19.5 | 11.3 | 0.2 |
| 6306 | 30 | 72 | 19 | 26.7 | 15 | 0.35 |
| 6407 | 35 | 100 | 25 | 55 | 31 | 0.96 |
| 6408 | 40 | 110 | 27 | 65.5 | 37.5 | 1.25 |
| 6209 | 45 | 85 | 19 | 31.5 | 20.5 | 0.42 |
| 6022 | 110 | 170 | 28 | 81.8 | 72.8 | 1.9 |
| 61910 | 50 | 72 | 12 | 14.5 | 11.7 | 0.13 |
| 16012 | 60 | 95 | 11 | 19.9 | 17.5 | 0.23 |
| 6413 | 65 | 160 | 37 | 118 | 78.5 | 3.4 |
| 6414 | 70 | 180 | 42 | 140 | 99.5 | 4.9 |
| 7217AC | 85 | 150 | 28 | 98.6 | 83.6 | 1.87 |
| 7318B | 90 | 190 | 43 | 148 | 124 | 5.3 |
| 7219C | 95 | 170 | 32 | 133 | 112 | 2.78 |
| 7220AC | 100 | 215 | 47 | 168 | 148 | 7.53 |
Logistics and Support
- Packaging Methods
- TubeWooden BoxCartonPalletPE Films
