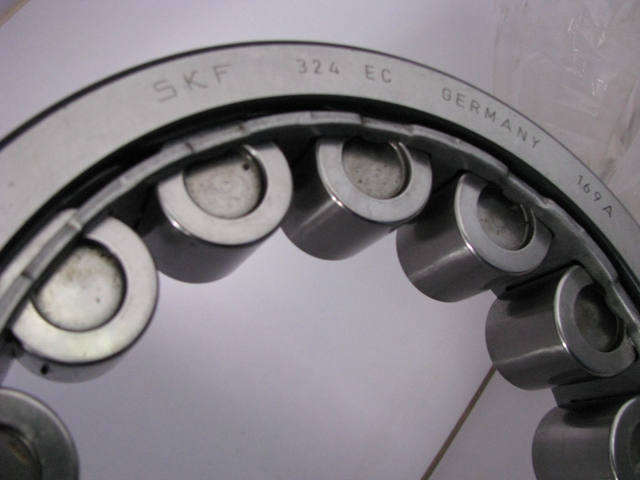

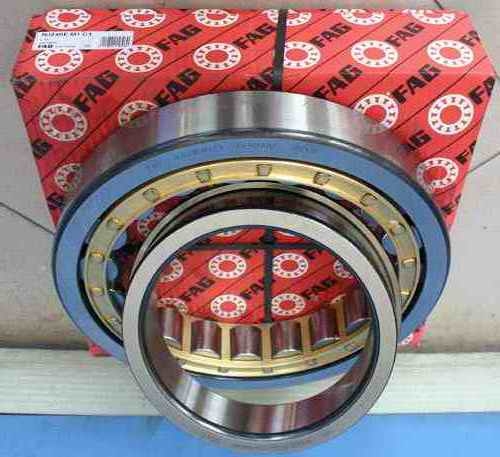

Cylindrical Roller Bearing
This cylindrical roller bearing is designed for heavy-duty applications requiring reliable rotational support. It utilizes cylindrical rollers for optimal load distribution and reduced friction in machinery and industrial equipment.
Technical Specifications
Product Overview
High-Performance Cylindrical Roller Bearings

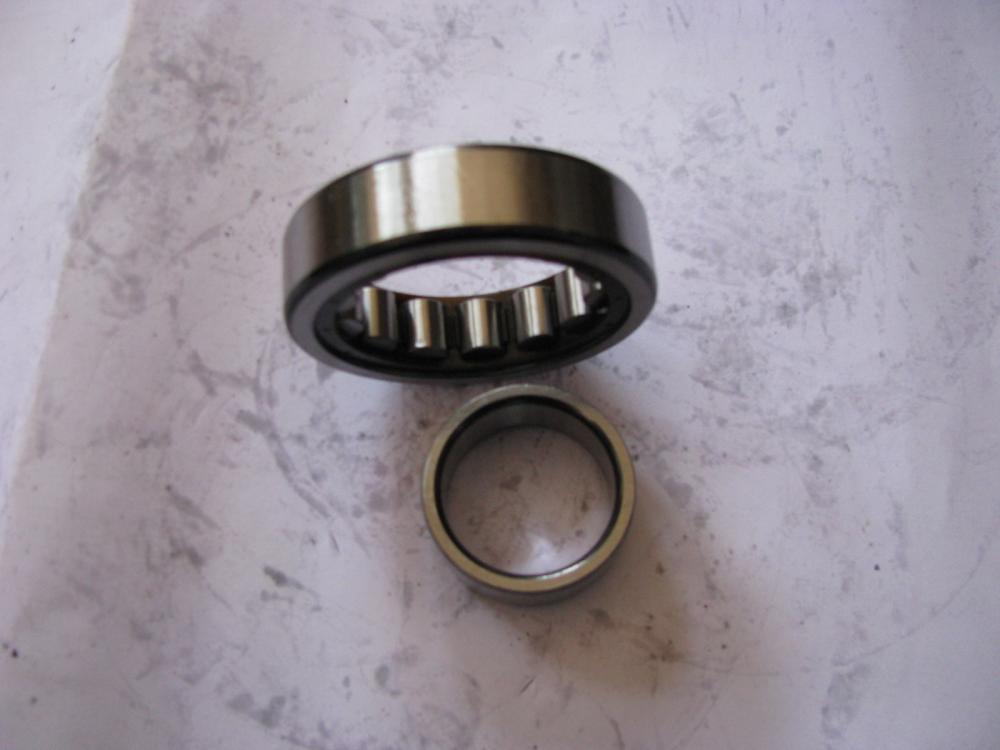

These cylindrical roller bearings feature linear contact between the rollers and raceways, providing exceptionally high radial load capacity. Designed for high-speed operation, they are available in various configurations including NU, NJ, NUP, N, NF for single-row, and NNU, NN for double-row designs. The separable outer and inner rings facilitate easy mounting and maintenance in demanding industrial applications.
Technical Specifications
Available Designs
NUNJNUPNNFNNUNN
- Cage Materials
- Pressed SteelMachined BrassMolded Polyamide
Dimensions Table
Standard Dimension Reference
| Bearing No. | d (mm) | D (mm) | B (mm) |
|---|---|---|---|
| 203 | 17 | 40 | 12 |
| 204 | 20 | 47 | 14 |
| 205 | 25 | 52 | 15 |
| 206 | 30 | 62 | 16 |
| 207 | 35 | 72 | 17 |
| 208 | 40 | 80 | 18 |
| 209 | 45 | 85 | 19 |
| 210 | 50 | 90 | 20 |
| 211 | 55 | 100 | 21 |
| 212 | 60 | 110 | 22 |
| 213 | 65 | 120 | 23 |
| 214 | 70 | 125 | 24 |
| 215 | 75 | 130 | 25 |
| 216 | 80 | 140 | 26 |
