Compact DC Gear Motor
This compact DC gear motor features a metal gearbox and a multi-colored wire harness with a connector. It is suitable for various automation and robotics applications.
Technical Specifications
Overview

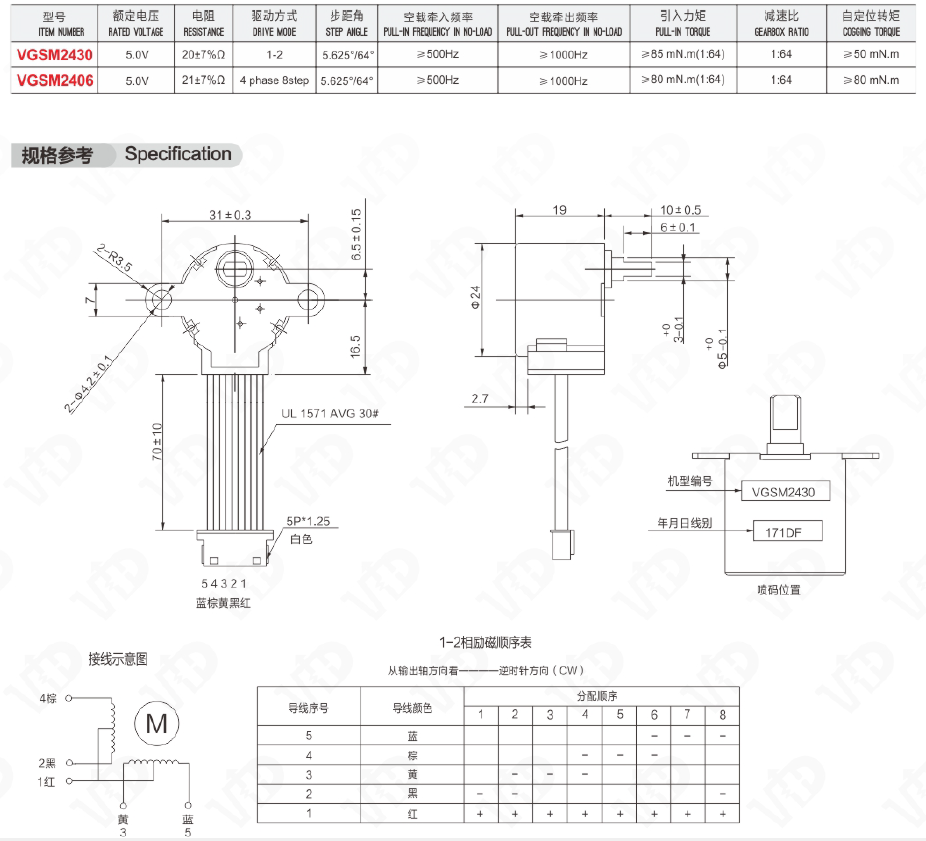

VGSM24 Series Gear Motor
The VGSM24 series gear motors are compact and efficient drive solutions designed for precision automation and robotics applications. These motors feature a robust metal gearbox with a 1:64 reduction ratio, ensuring reliable performance across various tasks. With a rated voltage of 5.0V and a step angle of 5.625°/64°, they offer consistent operational control and torque output suitable for demanding B2B integration projects.
Technical Specifications
- Rated Voltage
- 5 V
- Gearbox Ratio
- 1:64
- Step Angle
- 5.625°/64°
- Drive Mode
- 4 phase 8 step
Performance Metrics
Key Performance Metrics
| Metric | VGSM2430 | VGSM2406 |
|---|---|---|
| Resistance | 20±7%Ω | 21±7%Ω |
| Pull-in Torque | ≥85 mN.m | ≥80 mN.m |
| Cogging Torque | ≥50 mN.m | ≥80 mN.m |
Frequency Specifications
500 Hz
Pull-in Frequency (No-load)
1,000 Hz
Pull-out Frequency (No-load)
Connectivity
Wiring Information
- Wire Type: UL 1571 AVG 30#
- Connector: 5P*1.25
- Wire Colors: Blue, Brown, Yellow, Black, Red
