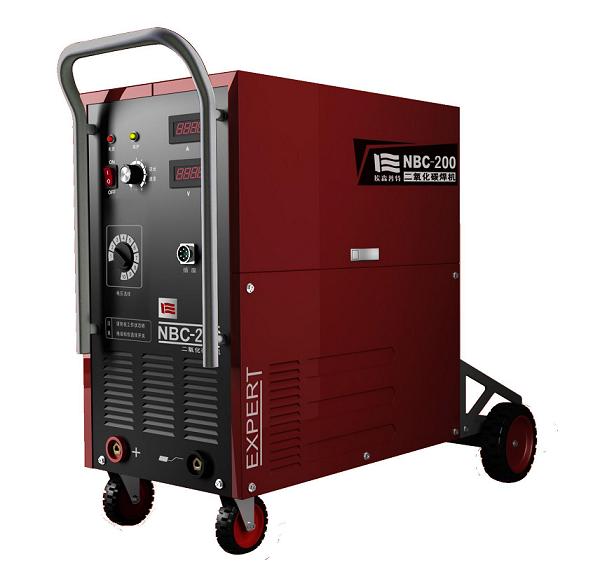

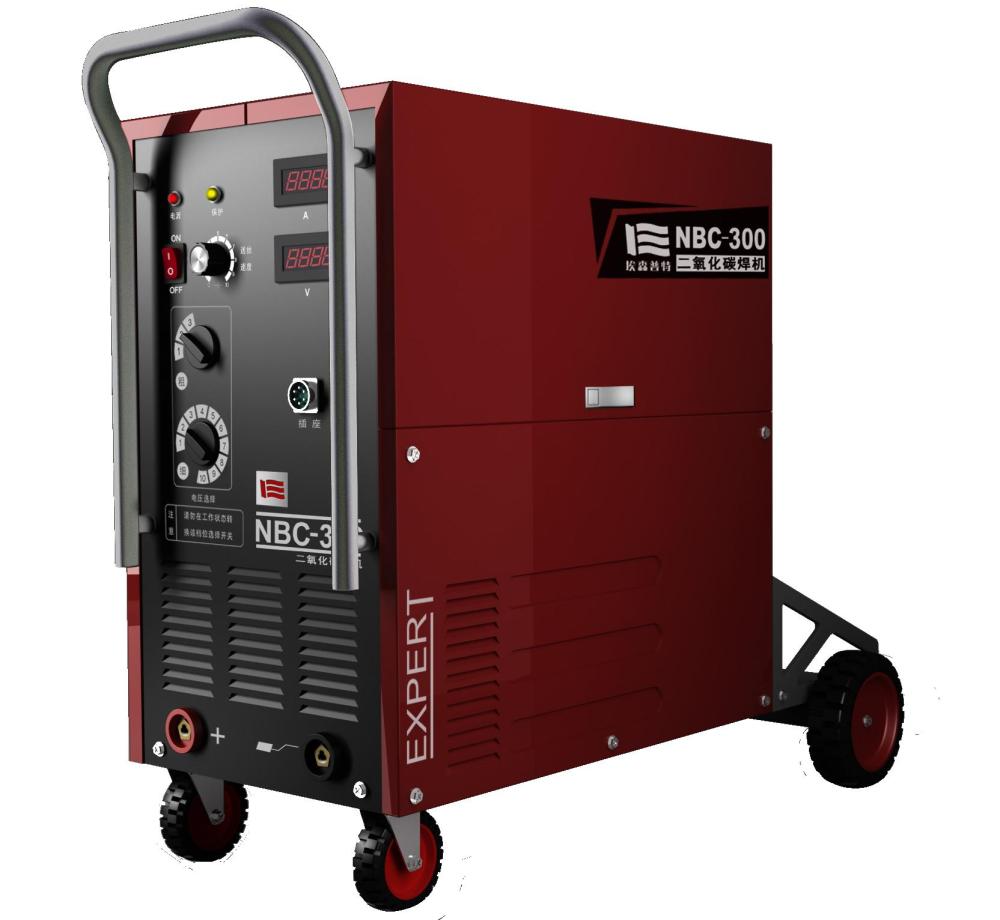

CO2/MIG/MAG Gas Shielded Welding Machine
This CO2/MIG/MAG gas shielded welding machine is a versatile and reliable welding solution. It features adjustable parameters and a robust design with digital displays for voltage and current.
Technical Specifications
Overview
Industrial Gas Shielded Welding Solution
The NBC series CO2/MIG/MAG gas shielded welding machine is engineered for high-efficiency industrial applications. It delivers deep penetration and high-strength welds with significantly faster welding speeds and lower operational costs compared to traditional AC welding equipment. Designed for versatility, this machine is ideal for welding carbon steel and alloy materials, including thin plates starting from 0.8mm thickness.
Technical Specifications
Performance Metrics
7.5 KVA
Input Capacity (NBC-200)
14.8 KVA
Input Capacity (NBC-300)
Model Comparison
| Model | Current Range | Voltage Range |
|---|---|---|
| NBC-200 | 35-200 A | 16-24 V |
| NBC-300 | 35-300 A | 16-29 V |
- Power Supply
- 3 phase 380V
- Duty Cycle
- 40 %
Features & Benefits
Key Advantages
- 3x higher efficiency compared to AC welding
- 50% lower operational costs
- Deep penetration and high strength welds
- Simplified operation (reduced slag removal)
- Superior surface finish with minimal distortion
- Application Suitability
- Carbon SteelAlloy MaterialsThin Plate Welding (>0.8mm)
