CNC Milling System Controller
The GSK 25i is a high-performance CNC system controller designed for precision milling applications. It features multi-axis linkage and five-axis control functions like RTCP and inclined plane machining.
Technical Specifications
Overview
High-Performance CNC Milling Controller

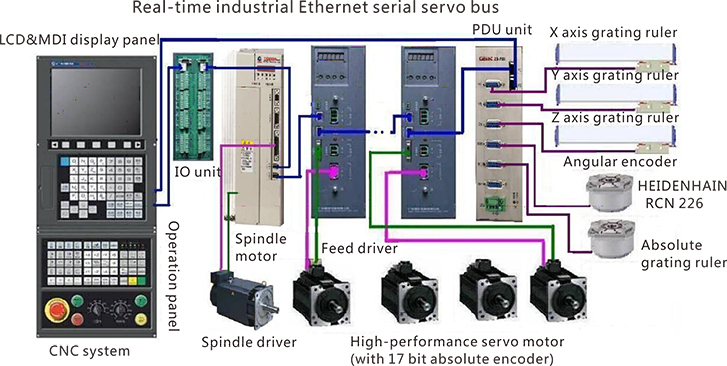

This advanced CNC milling system is designed for high-precision, multi-function machining centers, boring, and drilling machines. Built on a robust hardware platform with a Linux operating system, it supports up to 8 controlled axes with 5-axis linkage, enabling complex operations like RTCP (tool center point control) and inclined plane (3+2) machining. The system integrates real-time industrial Ethernet bus control and high-resolution servo feedback, ensuring superior surface quality and machining efficiency for demanding industrial applications.
- Core Capabilities
- 5-Axis LinkageEthernet Bus ControlHigh-Speed MachiningAbsolute Encoder SupportLinux OS
Axis & Motion Control
Axis Configuration
Motion Control Features

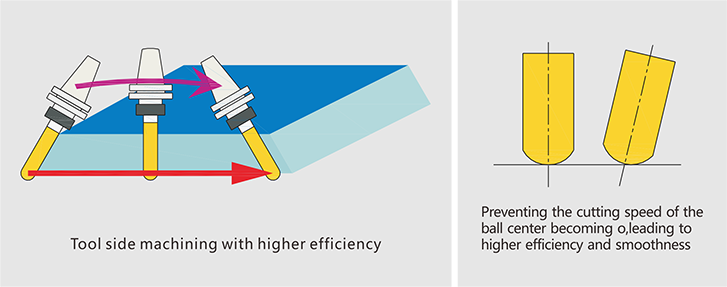

- 5-Axis RTCP (Tool Center Point Control)
- Inclined Plane (3+2) Positioning
- Feed Axis Synchronization
- PLC Axis Control
- Advanced Preview Control (1000 blocks)
- Jerk Control
Programming & Machining
Storage Capacity
Interpolation Modes
- Linear Interpolation
- Circular Interpolation
- Helical Interpolation
- Cylindrical Interpolation
- Polar Coordinate Interpolation
- NURBS Interpolation
Hardware & Interface

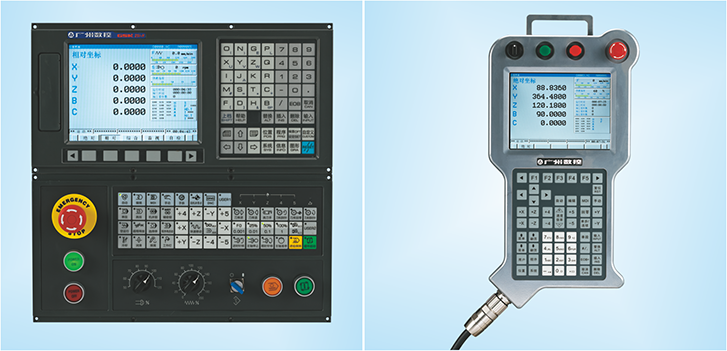

Display Specifications
| Screen Size | Resolution |
|---|---|
| 10.4 inch | 800 x 600 |
| 8.4 inch | 640 x 480 |
- Connectivity
- EthernetUSBRS232Industrial Ethernet Bus
Safety & Maintenance
Safety Functions
- Emergency Stop
- Hard & Soft Limit Checks
- Spindle & Feed Safety Speed Monitoring
- Following Error Monitor
- Multi-Authority Data Protection
Maintenance & Diagnostics
- Operation & Alarm History
- CNC Running State Diagnosis
- PLC Interface Diagnosis
- Speed Waveform Diagnosis
- Data Backup & Recovery
