CNC Milling Machine Controller
This CNC milling machine controller utilizes FANUC O series technology, providing stable hardware and excellent motion control. The flexible platform allows for secondary development via PLC Ladder and supports international standard G/M code with 2-5 axis interpolation.
Technical Specifications
Overview
High-Performance CNC Milling Control

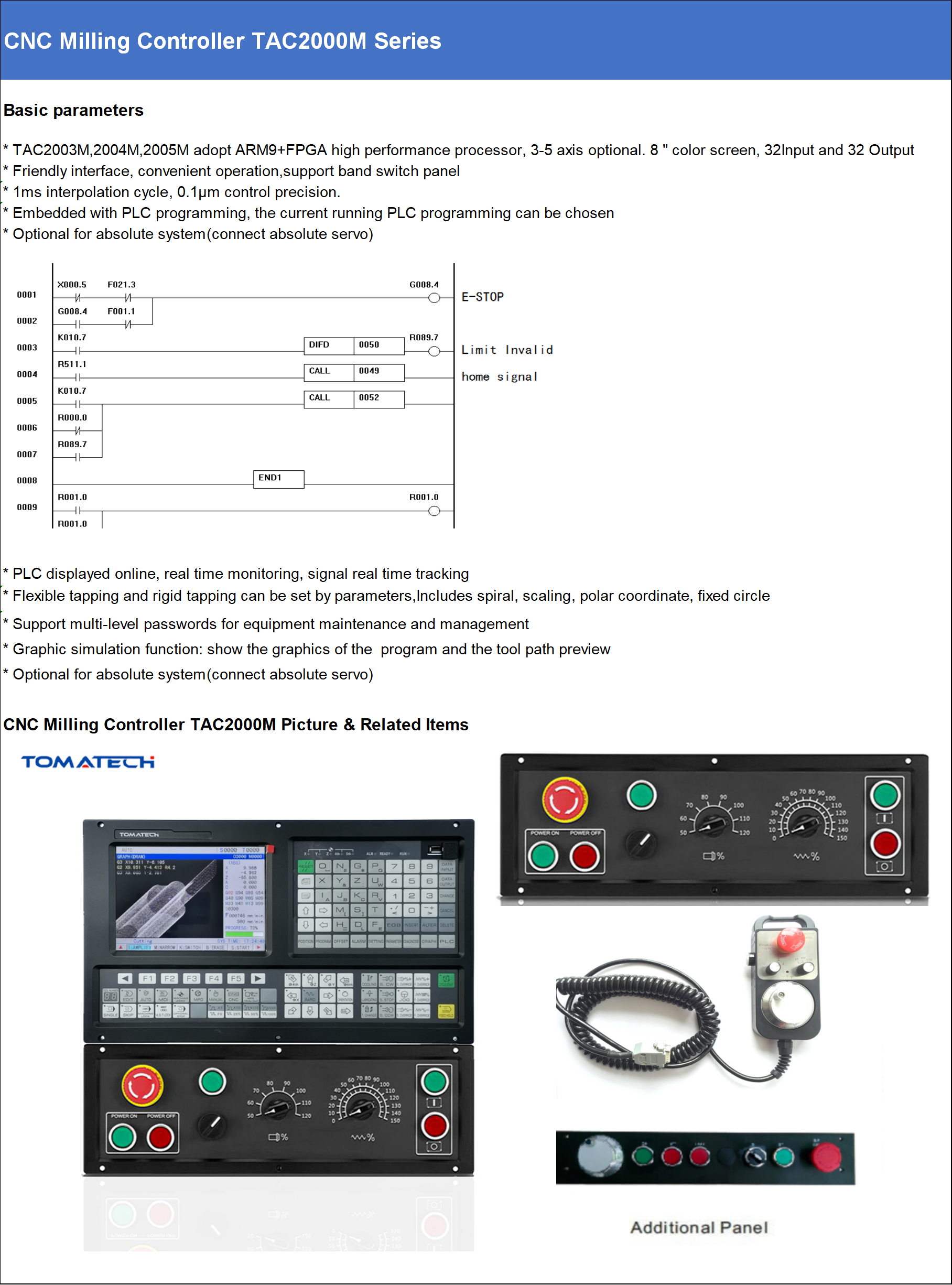

The TAC2000M series is a robust CNC milling controller based on stable hardware and advanced motion control algorithms. Designed for precision metal cutting, it offers a flexible platform for secondary development via PLC Ladder and supports international standard G/M codes. This system is ideal for professional manufacturing environments requiring high accuracy, reliability, and real-time process monitoring.
Core Performance
- Processor Architecture
- ARM9 + FPGA high-performance processor
- Interpolation Cycle
- 1 ms
- Control Precision
- 0.1 µm
- Command Interface
- 2MHz Pulse + Direction
Technical Specifications
Axis Control
2
Minimum Axes
5
Maximum Axes
I/O Channels
| Type | Count |
|---|---|
| Inputs | 32 |
| Outputs | 32 |
- Display
- 8-inch high-resolution color screen
Advanced Features
Programming & Logic
- Embedded PLC programming
- PLC online display and real-time monitoring
- Signal real-time tracking
- Support for absolute system (absolute servo connection)
- Multi-level password protection
Machining Functions
- Supported Machining Functions
- Flexible TappingRigid TappingSpiralScalingPolar CoordinateFixed CircleGraphic SimulationTool Path Preview

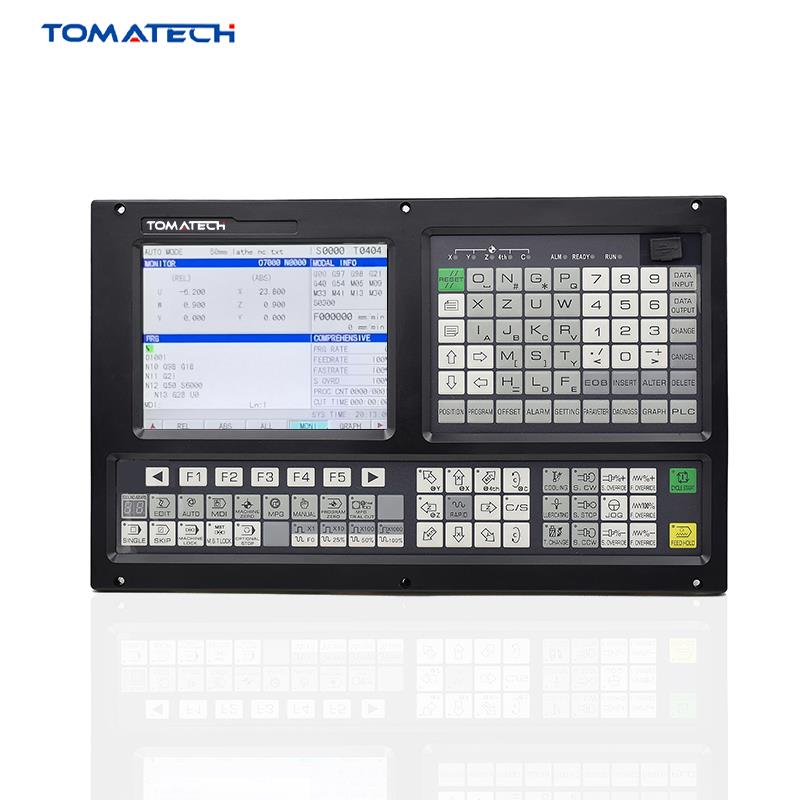

Interface & Operation
Operator Controls
Band Switch PanelAlphanumeric KeypadEmergency StopReal-time MonitoringGraphical Display
