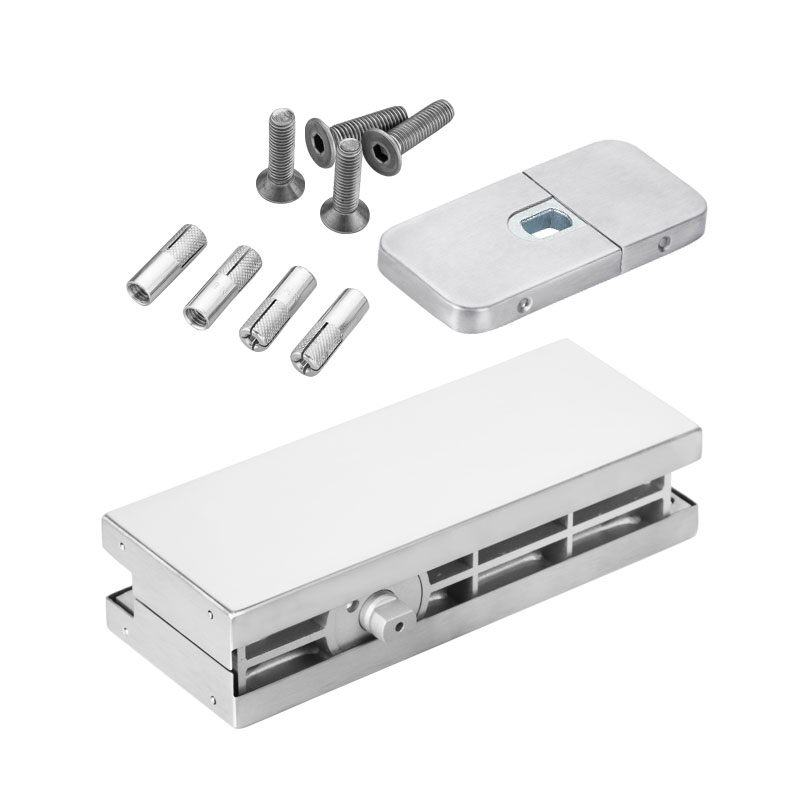

CNC Machined Glass Door Floor Spring Patch Fitting
This CNC machined floor spring patch fitting is designed for glass doors ranging from 8mm to 12mm in thickness. It is produced according to EN1154 standards with a double speed adjustment for smooth closing.
Technical Specifications
Overview
Professional Glass Door Control
This CNC machined hydraulic patch fitting floor spring is designed for modern glass door installations, offering a sleek, concealed, non-digging design that eliminates the need for floor excavation. Engineered to meet EN1154 standards, it ensures a long service life of up to 500,000 cycles. With dual-speed adjustment capabilities and robust construction, it provides smooth, controlled closing for glass doors between 8mm and 12mm thick.
Technical Specifications
Performance Metrics
100 kg
Max Door Weight
1,100 mm
Max Door Width
500,000 cycles
Lifespan
70 %
Closing Efficiency
Mechanical Details
| Parameter | Value |
|---|---|
| Model | HPF-100 |
| Applicable Standard | EN1154 |
| Engine Cylinder | Single |
| Max Open Degree | 180° |
| Stop Device | 90° or NHO |
| Latching Speed | 0-20° |
| Closing Speed | 20°-90° |

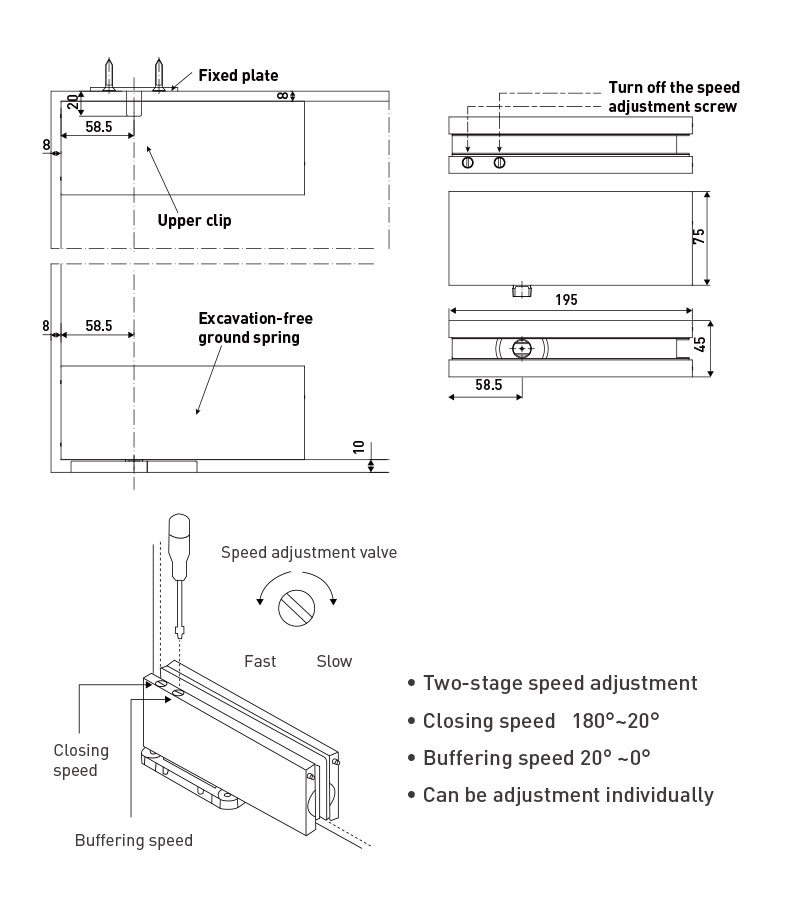

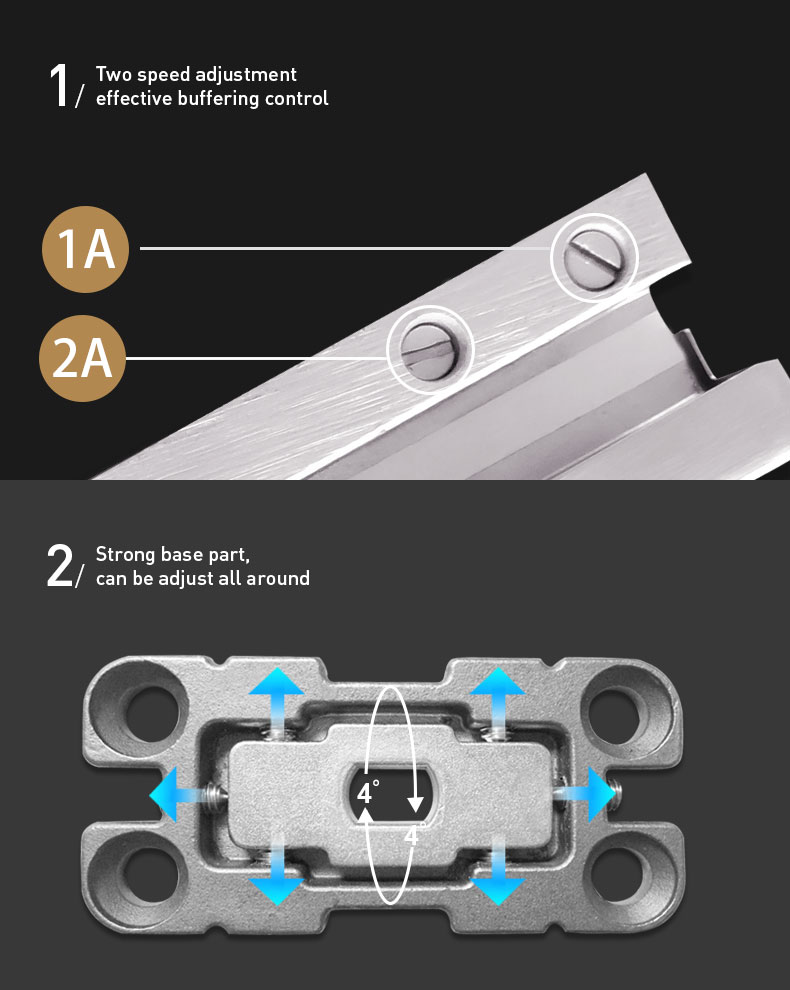

Installation & Compatibility
Installation Requirements
- Non-digging design (no floor excavation required)
- Suitable for glass door thickness: 8mm-12mm
- Operating temperature range: -40°C to 60°C
- Dimensions: 195mm x 45mm x 75mm

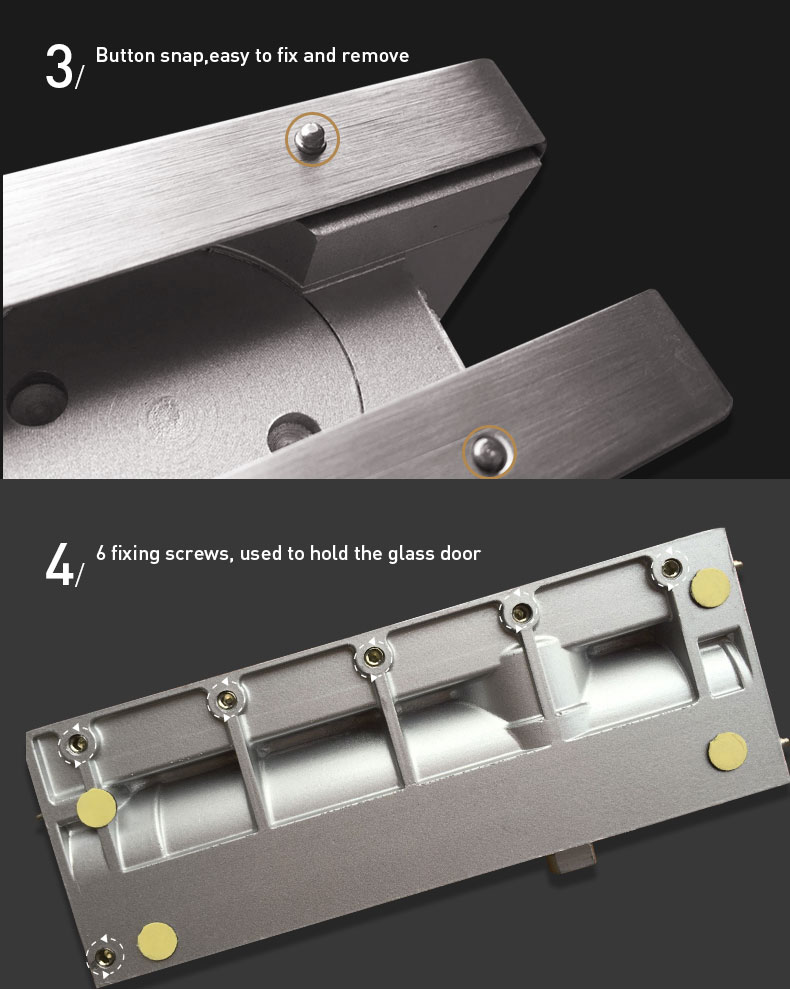

Features

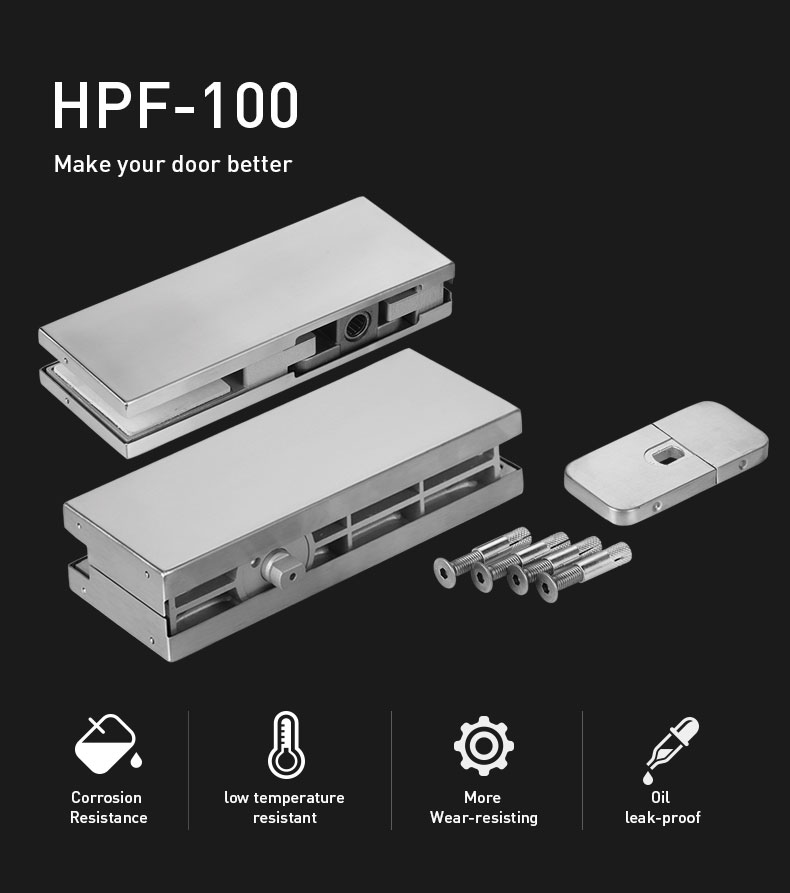

Key Features
CNC MachinedConcealed DesignDouble Speed AdjustmentCorrosion ResistantOil Leak-ProofWear ResistantLow-Temperature Resistant
