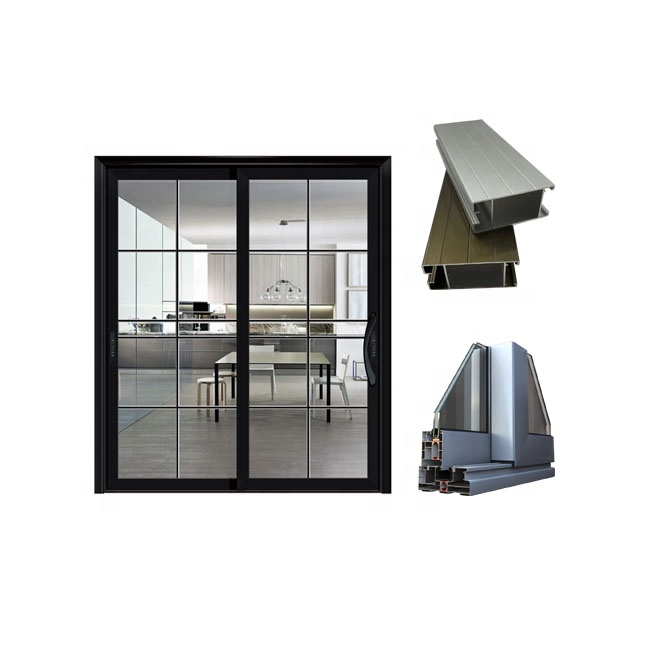

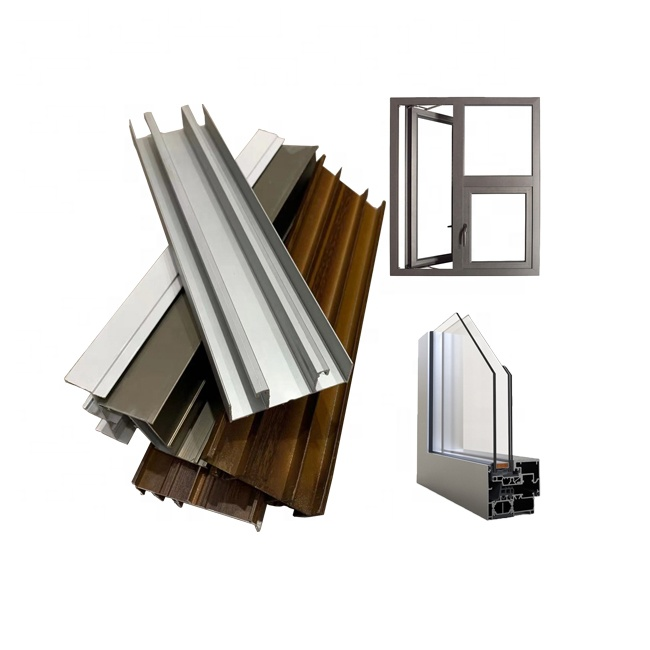

CNC Machined Aluminum Extrusion Profile for Doors and Windows
This CNC machined aluminum extrusion profile is designed for various door and window applications. The profile is made from a durable aluminum alloy that resists rust and warping, making it suitable for both indoor and outdoor use.
Technical Specifications
Product Overview
High-Precision Aluminum Solutions
These CNC machined aluminum extrusion profiles are engineered for high-performance residential, commercial, and industrial applications. Designed specifically for doors, windows, and wardrobe sliding systems, they offer exceptional structural integrity without warping or rusting. The profiles support a wide range of configurations including casement, tilt-and-turn, and bi-fold types, making them ideal for both indoor and outdoor architectural projects.
Technical Specifications
Key Dimensions & Precision
0.15 mm
Precision Tolerance
1 %
General Tolerance
6 m
Max Length
Chemical Composition (%)
| Alloy | Si | Mg | Fe | Cu |
|---|---|---|---|---|
| 6063 | 0.2-0.6 | 0.45-0.9 | <0.35 | <0.1 |
| 6061 | 0.4-0.8 | 0.8-1.2 | 0.7 | 0.15-0.4 |
| 6005 | 0.6-0.9 | 0.4-0.9 | <0.35 | <0.1 |
- Material Grade
- 6000 Series6063-T56063-T66061
- Thickness Range
- 0.2mm - 20mm (Customizable)
Design & Application
Supported Applications

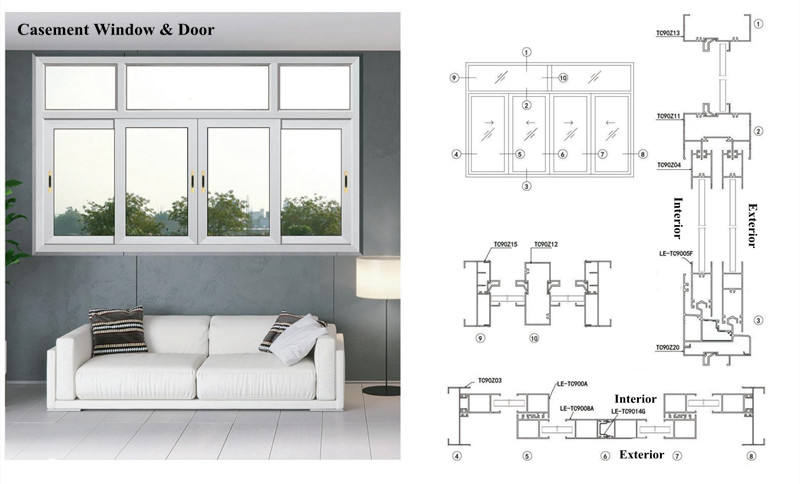

- Casement Windows & Doors
- Sliding Windows & Doors
- Tilt and Turn Windows
- Bi-fold & Pivot Doors
- Sunrooms
- Curtain Walls
- Wardrobe Sliding Systems
- Processing Services
- BendingDecoilingWeldingPunchingCuttingCNC Machining
Surface & Aesthetics

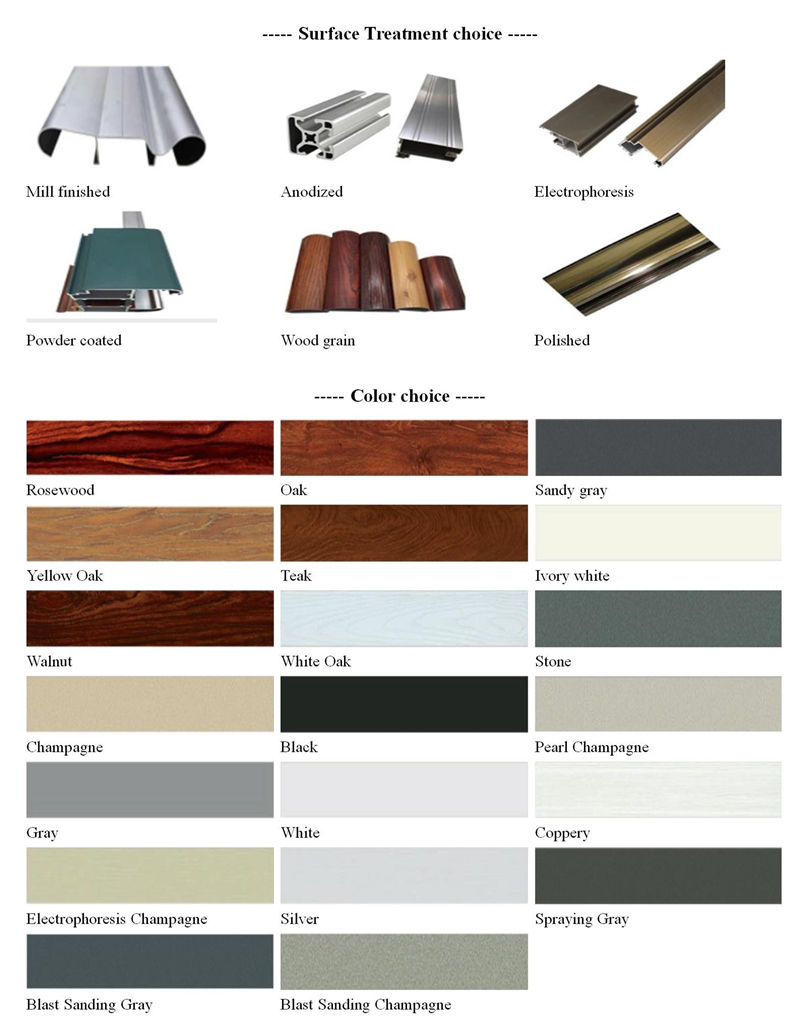

Surface Treatment Options
- Anodizing
- Electrophoresis
- Powder Coating
- PVDF Coating
- Wood Grain Finishing
- Polishing
- Sand Blasting
- Available Colors
- BlackSilverChampagneIvory WhiteWalnutOakTeakSandy Gray
Compliance & Logistics
Quality Certifications
ISO 9001ISO 14001ISO 18001TUVGB5237-2008

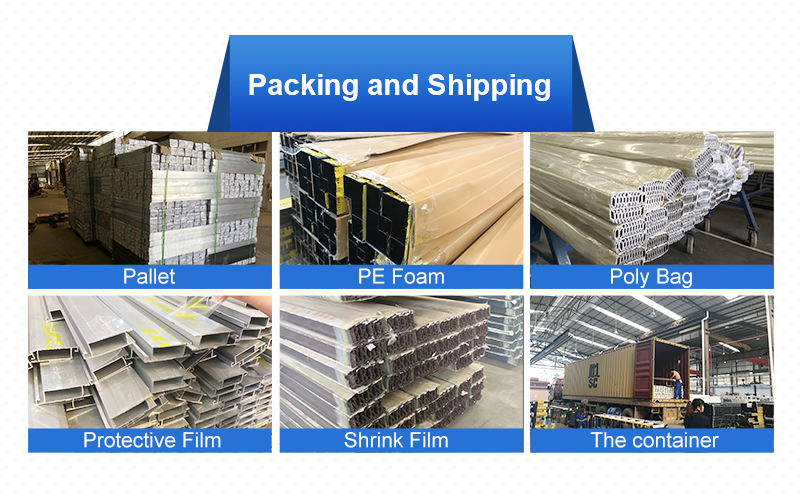

Packaging Details
- PE Protective Film
- PVC Film
- PE Foam
- Craft Paper
- Carton Box
- Shrink Film
- Palletized Shipping
- Monthly Supply Ability
- 1500 Tons
