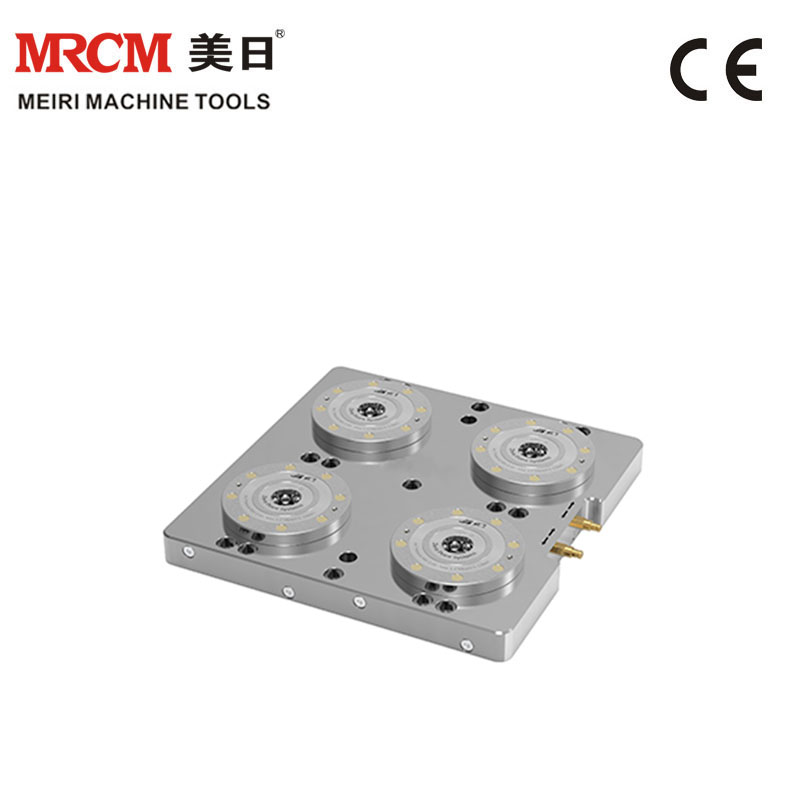

CNC Machine Center 4-Center Chuck Zero Point System
This zero point system with a 4-center chuck is designed for CNC machine centers. It facilitates quick and accurate workpiece clamping and positioning for machining operations.
Technical Specifications
Product Overview
High-Precision Zero Point System
This four-station zero point clamping system is designed for professional CNC machine centers, offering superior repeatability and stability for metal cutting applications. Featuring hardened surfaces and precision-engineered piston mechanisms, it ensures rapid workpiece setup and consistent accuracy in demanding industrial environments. The system supports versatile unlocking configurations, including both pneumatic and hydraulic options, to integrate seamlessly into diverse machine tool setups.
Technical Specifications
Positioning Accuracy
0.005 mm
Repeat Positioning Accuracy
Compatibility
- T-groove spacing: 100mm
- T-groove spacing: 125mm
- Pneumatic automatic chip removal
- Pneumatic dust removal interface
- Material Composition
- Die Steel with surface and piston hardening treatment
- Unlock Modes
- PneumaticHydraulic
Compliance
Certifications
CE
