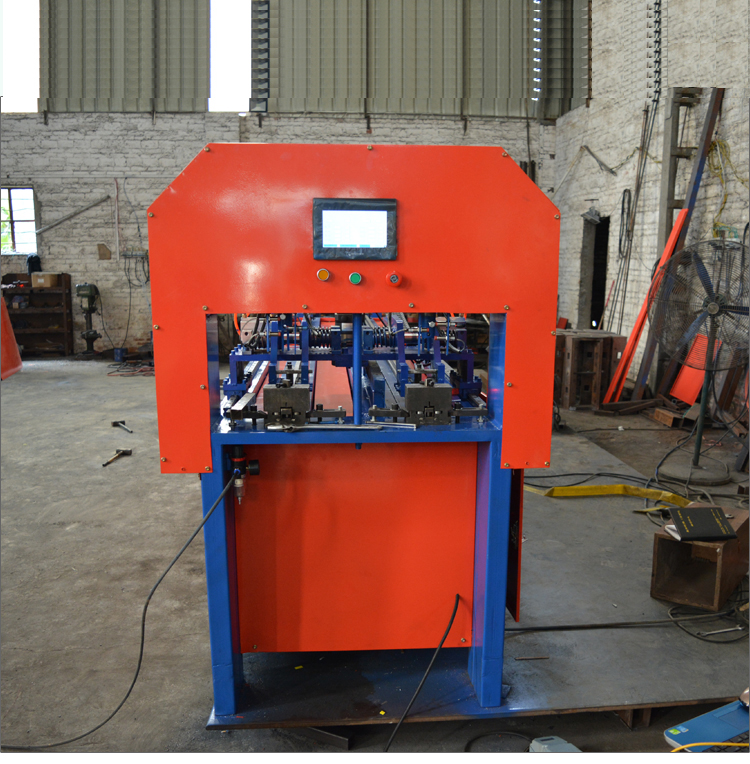

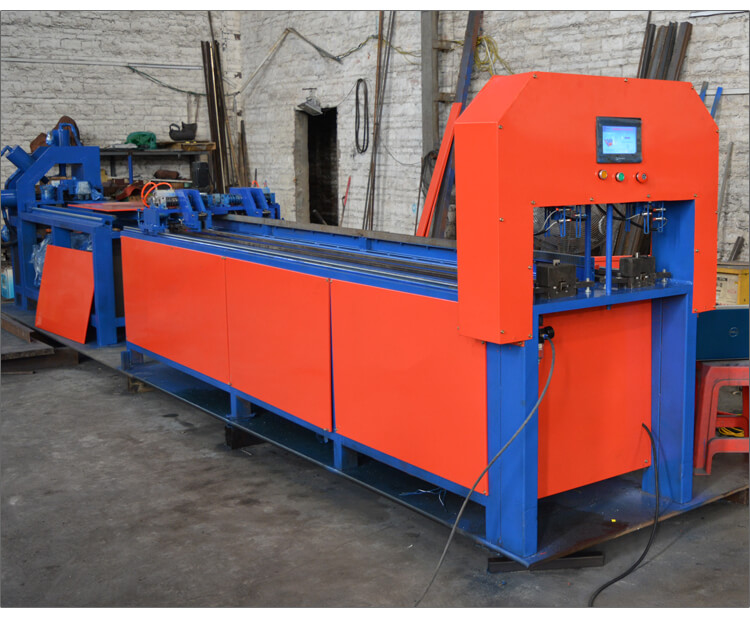

CNC Hydraulic Tube Punching Machine
This CNC pipe punching machine accurately and quickly punches holes on pipes as required. Its operation system can store more than 100 programs for selection.
Technical Specifications
Overview
High-Efficiency CNC Punching Solution
This automatic hydraulic tube and pipe punching machine combines punching and cutting functions into a single, high-speed unit. Engineered for precision, it allows for accurate hole placement on various materials, including tubes, I-steel bars, and channel bars, without causing deformation. With programmable settings and a user-friendly touchscreen interface, it is an ideal solution for industries such as fence making, metal furniture manufacturing, and construction.
Technical Specifications
Material Thickness Range
0.5 mm
Minimum Thickness
3 mm
Maximum Thickness
Supported Hole Shapes
- Square
- Rectangular
- Custom Shapes
- Supported Materials
- PipeTubeI-Steel BarChannel Bar
Control & Operation
- Control System
- Programmable CNC system with touchscreen interface
- Data Storage Capacity
- 100 programs
Applications
Target Industries
Fence MakingRack ManufacturingMetal FurnitureCable FactoryAC Frame ProductionTower Construction
