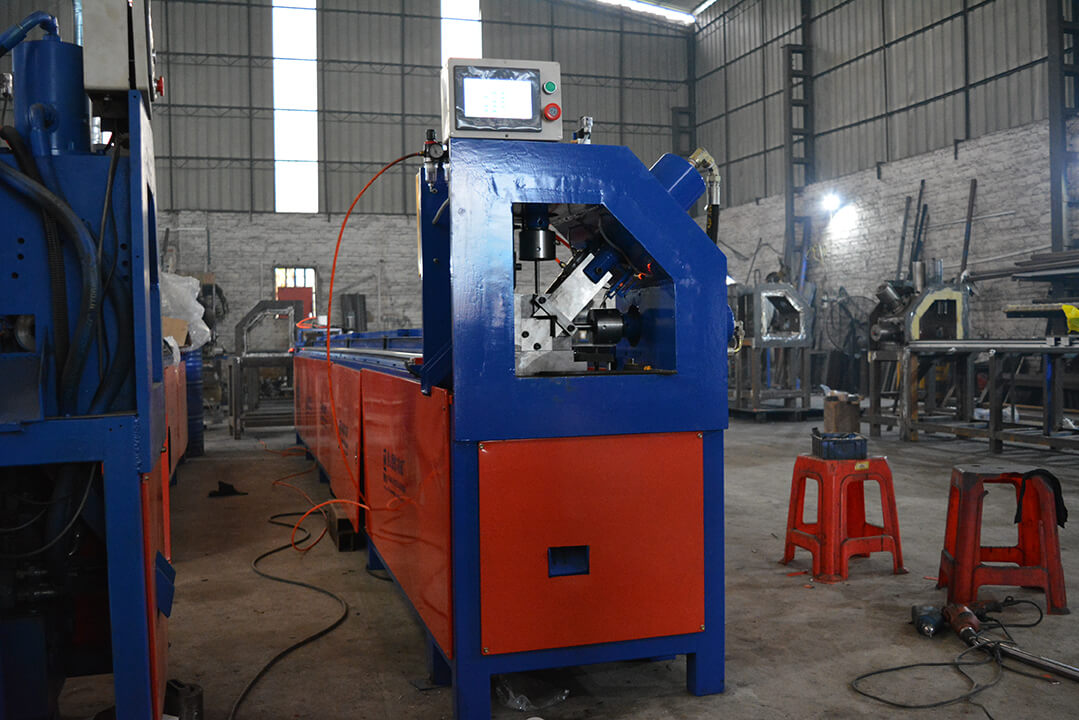

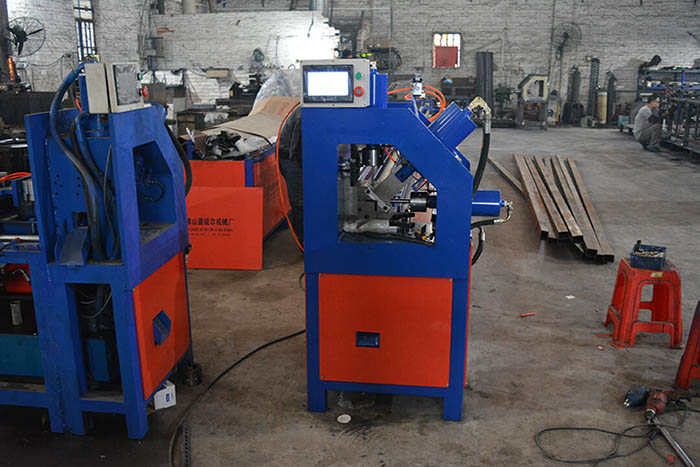

CNC Hydraulic Angle Steel Punching Machine
This CNC hydraulic angle steel punching machine is designed for precise and efficient punching of angle steel profiles. The CNC control system allows for automated operation, ensuring accuracy and repeatability.
Technical Specifications
Overview
High-Efficiency Punching Solution
This automatic hydraulic angle steel punching machine combines punching and cutting functions into one efficient, high-speed system. Designed for precision, it ensures deformation-free results on angle steel with thicknesses ranging from 3mm to 8mm. The integrated CNC control system and touch screen interface simplify operation, allowing users to save and recall over 100 sets of punching data for streamlined production.
Technical Capabilities
Material Thickness
3 mm
Min Thickness
8 mm
Max Thickness
Supported Hole Shapes
- Square
- Rectangular
- Custom shapes
Features & Operation
Key Features
Automatic PositioningHydraulic PowerCombined Punching & CuttingDeformation-Free
- Control System
- CNC with Touch Screen Interface
- Program Storage Capacity
- 100 sets
Applications
- Suitable Industries
- Fence MakingRack ManufacturingMetal FurnitureCable IndustryAC Frame ProductionTower Construction
