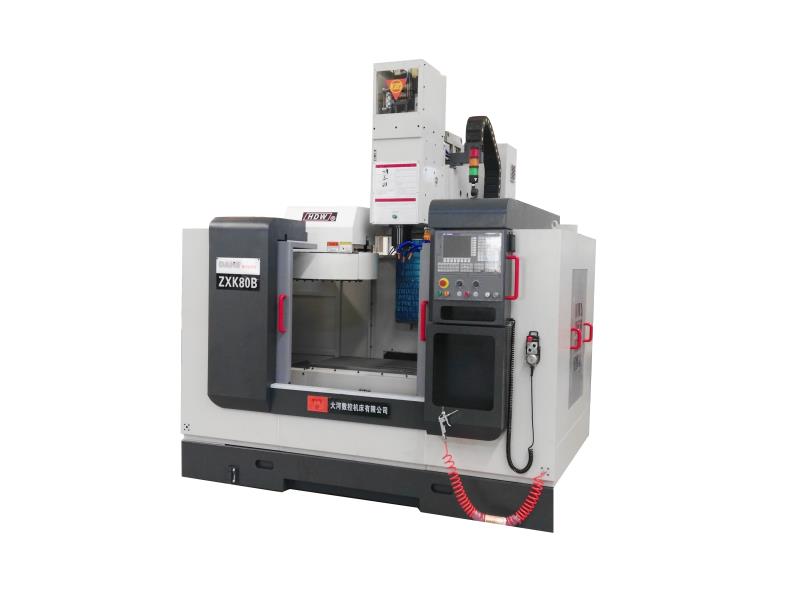

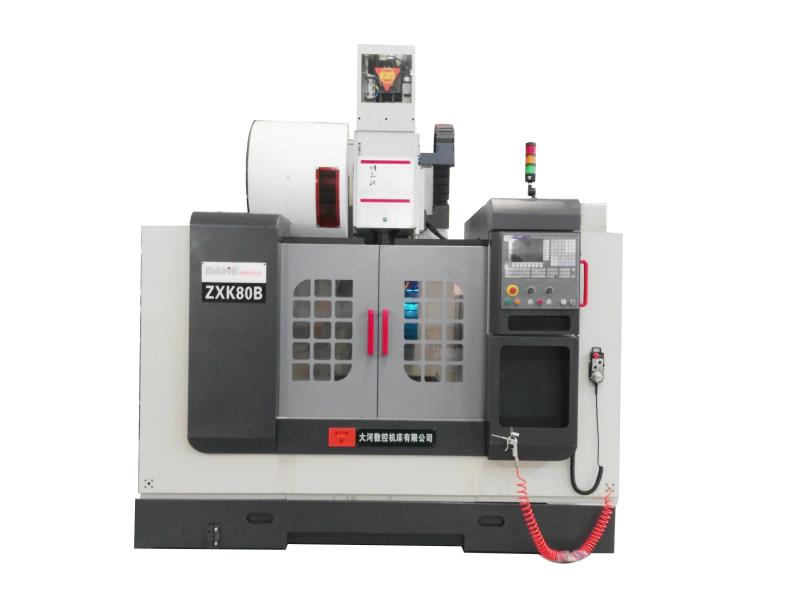

CNC Drilling and Milling Machining Center
This CNC drilling and milling center is designed for versatile machining operations. The machine features a robust structure that ensures stability and accuracy during high-speed cutting.
Technical Specifications
Overview
High-Performance CNC Machining Center
This CNC drilling and milling machining center is engineered for heavy-duty cutting with high rigidity and substantial torque. Featuring a robust cast structure and precise guide rail systems, it delivers exceptional accuracy and smooth operation. The machine is equipped with advanced digital servo drives and a versatile automatic tool changer system, making it an efficient solution for complex milling, boring, and drilling tasks.
Performance Metrics
Max Spindle Torque
450 Nm
Max Spindle Torque
- Tapping Capacity
- M30
Technical Specifications
Drive System
- Three-axis ball screw drive
- Direct motor-to-screw connection
- DA98 series digital servo drives (3-axis)
- DAY3 series digital spindle servo
- CNC Control System
- GSK980MDa
- Display
- 7-inch widescreen color LCD
Tooling & Automation
- Automatic Tool Changer Options
- 12-station mechanical hand disc library16-station gear cam manipulator
Construction & Design
Structural Design
- High-rigid special casting structure
- Vertical machining center lathe bed
- Quenched and ground guide rails
- Automatic intermittent lubrication system
- Full gear transmission shift spindle box
