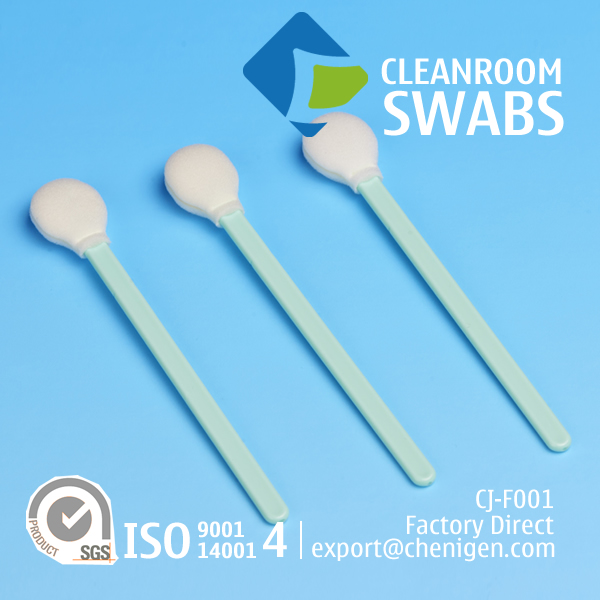

Cleanroom Swab with ESD-Safe Handle
These cleanroom swabs feature open-cell polyurethane foam thermally bonded over polypropylene handles. The large circular head possesses excellent solvent-holding capacity and durability.
Technical Specifications
Product Overview
Precision Cleanroom Swabs
These open-cell polyurethane foam swabs are engineered for critical contamination control environments, including electronics manufacturing and semiconductor production. Featuring an ESD-safe handle, they protect sensitive components from electrostatic discharge while providing exceptional solvent-holding capacity for efficient cleaning. The durable, non-abrasive tip is designed to remove flux residues, contaminants, and excess materials from curved surfaces and hard-to-reach areas.
Physical Dimensions
Detailed Dimensions
| Component | Length (mm) | Width (mm) | Thickness (mm) |
|---|---|---|---|
| Head | 27 | 19.5 | 10 |
| Handle | 98 | 6.5 | 2.7 |
- Total Swab Length
- 125 mm
Material & Construction
- Head Material
- Open-cell polyurethane (PU) foam
- Handle Material
- Polypropylene (PP)
- Foam Density
- 100 ppi
Performance Features
Compatible Solvents
- Isopropyl Alcohol (IPA)
- General Cleanroom Solvents
- Key Features
- ESD-Safe HandleLow Particle GenerationLow NVRSolvent ResistantNon-Abrasive
Logistics
- Packaging
- 100 pcs/bag
Certifications
Quality Compliance
ISO 9001ISO 14001
