Centrifugal Fan for HVAC and Air Purification
This centrifugal fan is designed for efficient ventilation and air purification in HVAC systems. Its compact structure and robust design ensure durability and long service life.
Technical Specifications
Product Overview

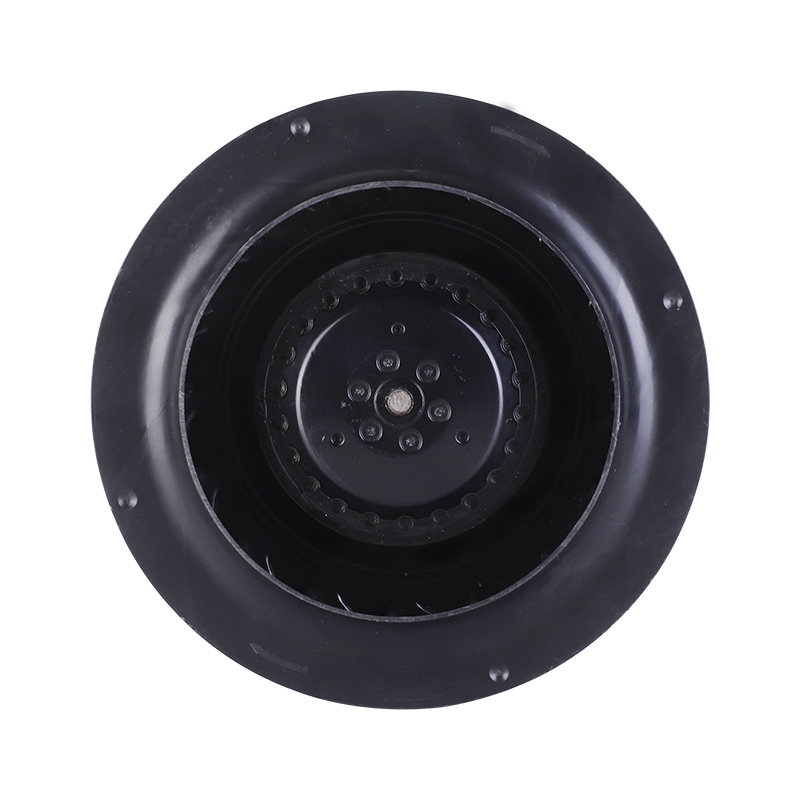

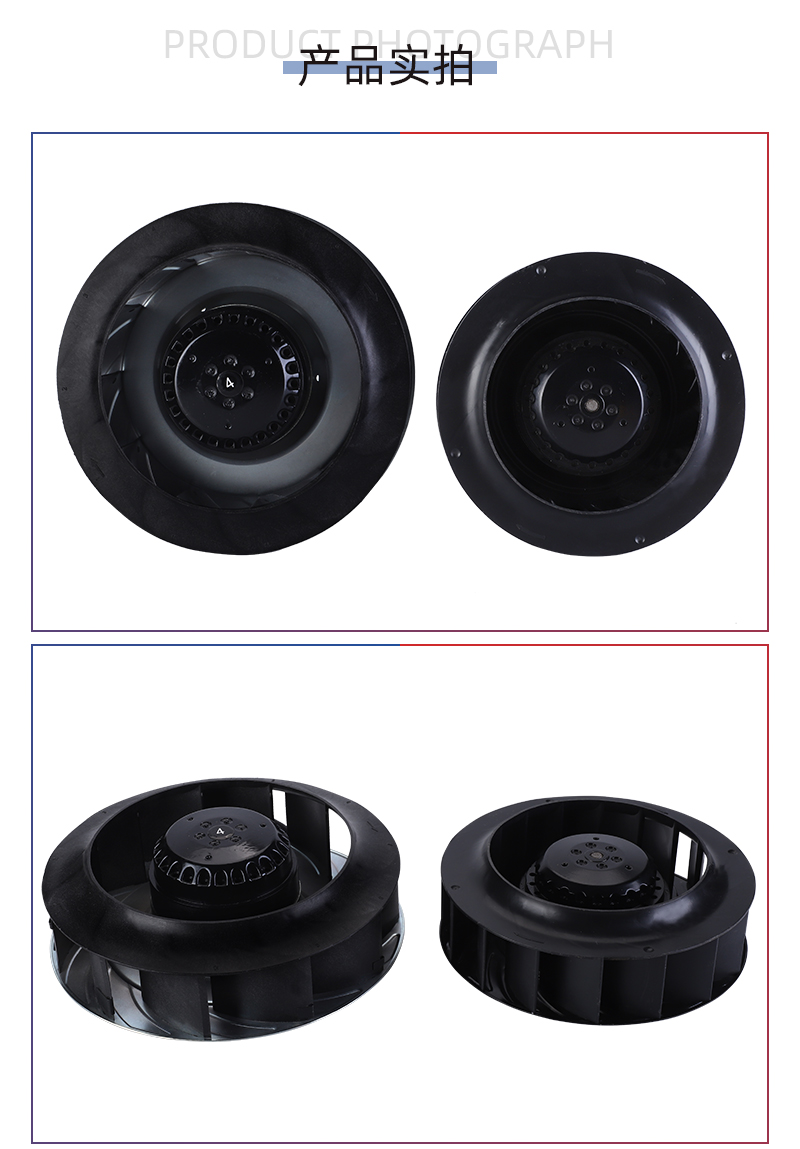

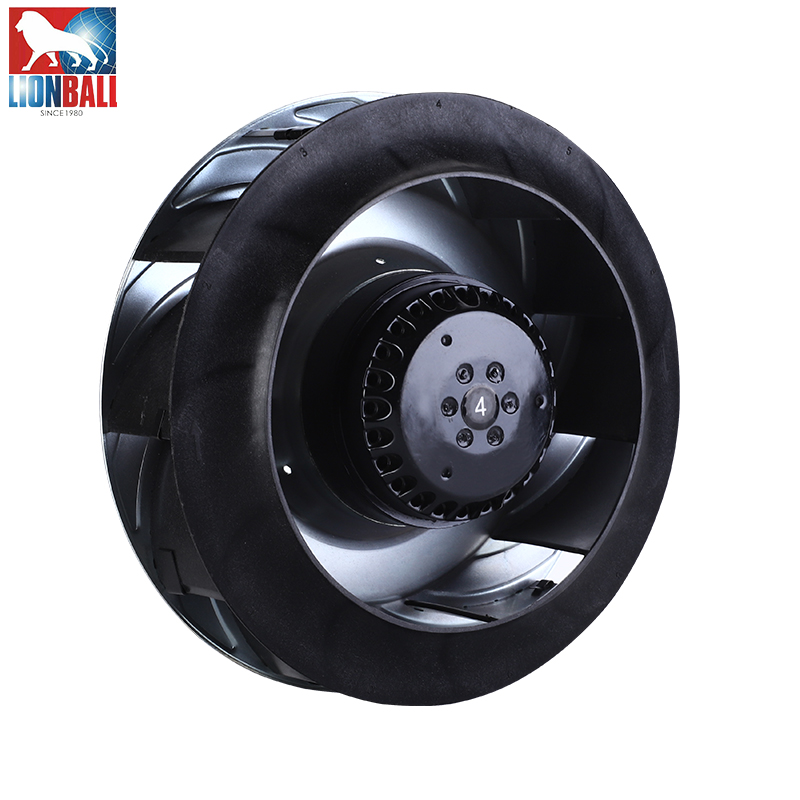

High-Performance Centrifugal Fan
The YWFB175 is a robust centrifugal fan engineered for demanding HVAC and air purification applications. Featuring a compact structure and professional design, it delivers efficient airflow with low noise levels for a variety of ventilation needs. Its durable construction and fine process control ensure a long service life and easy installation in residential, commercial, and industrial environments.
Key Features
Core Advantages
- Compact and space-saving structure
- Professional aerodynamic design
- High efficiency with low operational noise
- Fine process control for enhanced durability
- Easy installation for various setups
- Long service life for reliable performance
Technical Specifications
Performance Data
230 V
Rated Voltage
570 m³/h
Max Air Flow
3,100 RPM
Max Speed
52 W
Input Power
Operational Parameters
| Parameter | Value (50Hz / 60Hz) |
|---|---|
| Rated Current | 0.24 / 0.26 A |
| Input Power | 50 / 52 W |
| Speed | 2650 / 3100 RPM |
| Max Air Flow | 490 / 570 m³/h |
| Noise Level | 63 / 68 dB(A) |
| Capacitor | 1.5 µF |
Applications
- Typical Applications
- Air PurificationHVAC SystemsCommercial RefrigerationIndustrial VentilationMedical EquipmentKitchen VentilationNew Energy Systems
Compliance & Quality
Standards & Certifications
CEULVDERoHSCCCISO 9001ISO 14001
Purchase Information
Order Workflow
- Style Selection & Communication
- Design Draft Submission
- Detail Confirmation & Quotation
- Form Validation & Payment
- Proofing & Bulk Production
- Quality Inspection & Packaging
- Shipment
