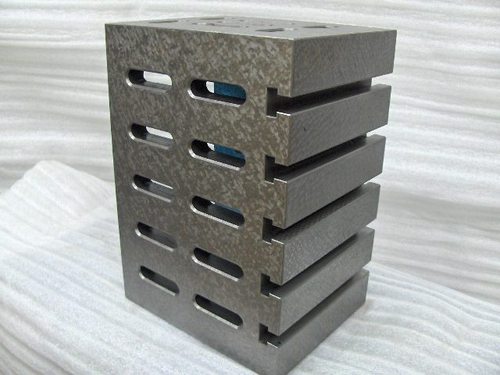

Cast Iron Square Inspection Block
This cast iron square block, made of HT200 material, adheres to JB/T3411.56-99 manufacturing standards. Primarily used to inspect the verticality and parallelism of parts, it also supports workpieces for scribing.
Technical Specifications
Product Overview
Precision Inspection and Alignment
This heavy-duty cast iron square block is engineered for demanding industrial applications requiring robust and precise structural support. Featuring a finely machined surface, it ensures accurate alignment, measurement, and positioning for workpieces in toolrooms and machine shops. The design incorporates versatile mounting options, including horizontal and vertical slots, to facilitate stability and reliability in quality control environments.
Technical Specifications
Design Features
- Central square tube aperture
- Horizontal slots
- Vertical slots
- Stacked layer construction

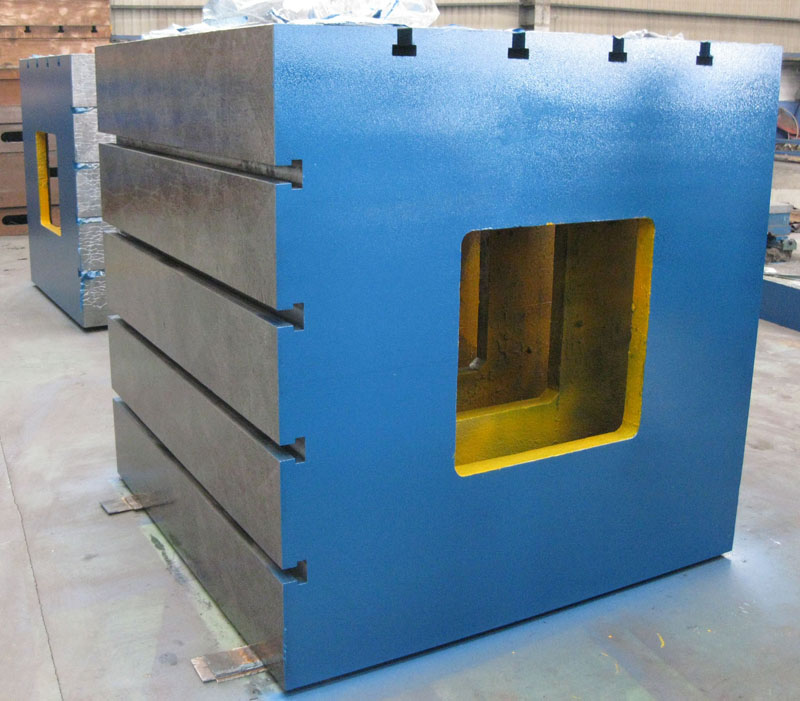

Color Scheme
Blue BodyYellow Aperture
- Material
- High-quality Cast Iron
- Finish
- Protective CoatingCorrosion ResistantFinely Machined
Applications
Ideal For
- Toolrooms
- Machine shops
- Quality control environments
- Fabrication alignment
