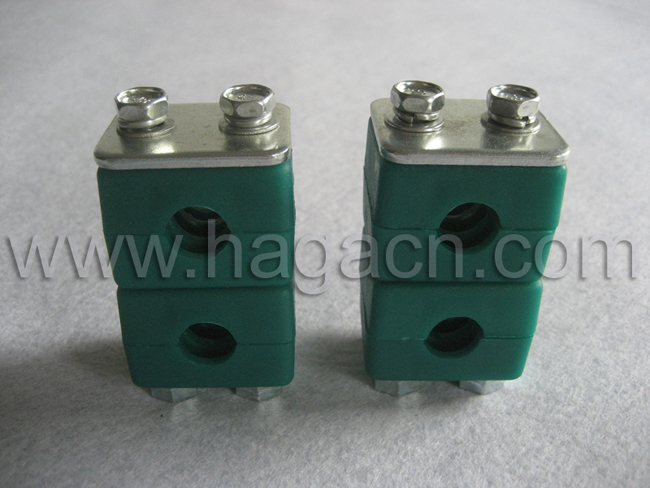

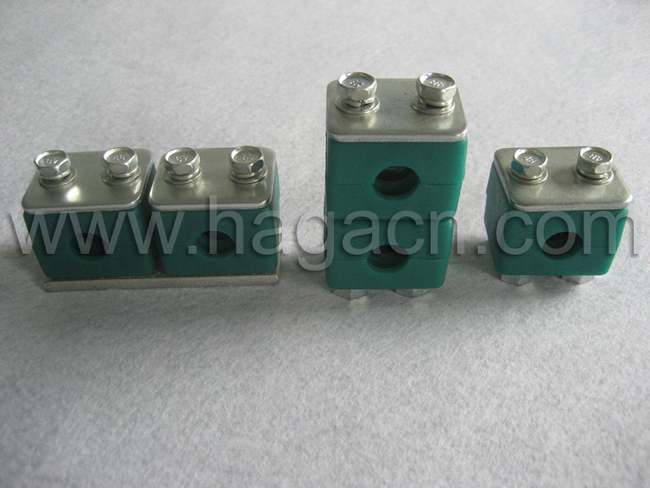

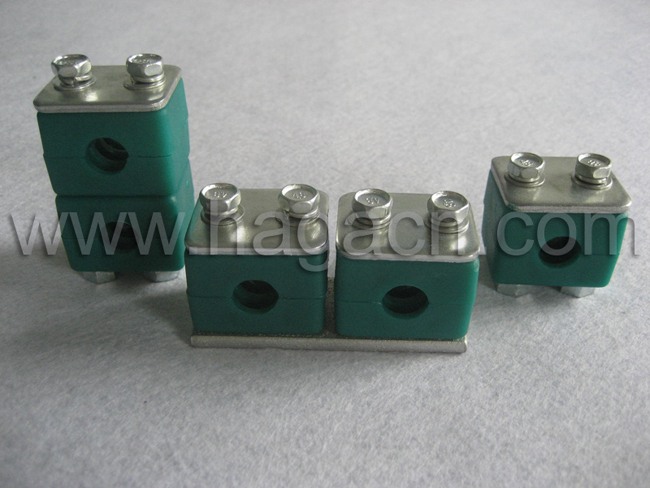

Carbon Steel Hydraulic Pipe Clamp
Hydraulic pipe clamps secure pipes and tubes in hydraulic systems. Constructed from carbon steel, these clamps offer durability and corrosion resistance.
Technical Specifications
Overview
Professional Hydraulic Pipe Clamping Solution
These hydraulic pipe and tube clamps are engineered for secure, vibration-resistant support in demanding industrial hydraulic systems. The assembly includes a cover plate, weld plate, clamp body, and hexagon bolts, ensuring a robust and reliable grip. Designed for versatility, they accommodate a wide range of pipe diameters and material requirements to suit diverse operational environments.
Technical Specifications
Assembly Components
- Cover Plate
- Weld Plate
- Clamp Body
- Hexagon Bolts
- Compatible Pipe Diameter (O.D.)
- 6 - 805 mm
- Available Materials
- Carbon SteelStainless SteelPolypropylene (PP)Polyamide (PA)Aluminium
Performance Metrics
Working Temperature Range
-30 °C
PP Min Temp
90 °C
PP Max Temp
-40 °C
PA Min Temp
120 °C
PA Max Temp
Material Finishes
Surface Treatment Options
Zinc CoatedPhosphated
