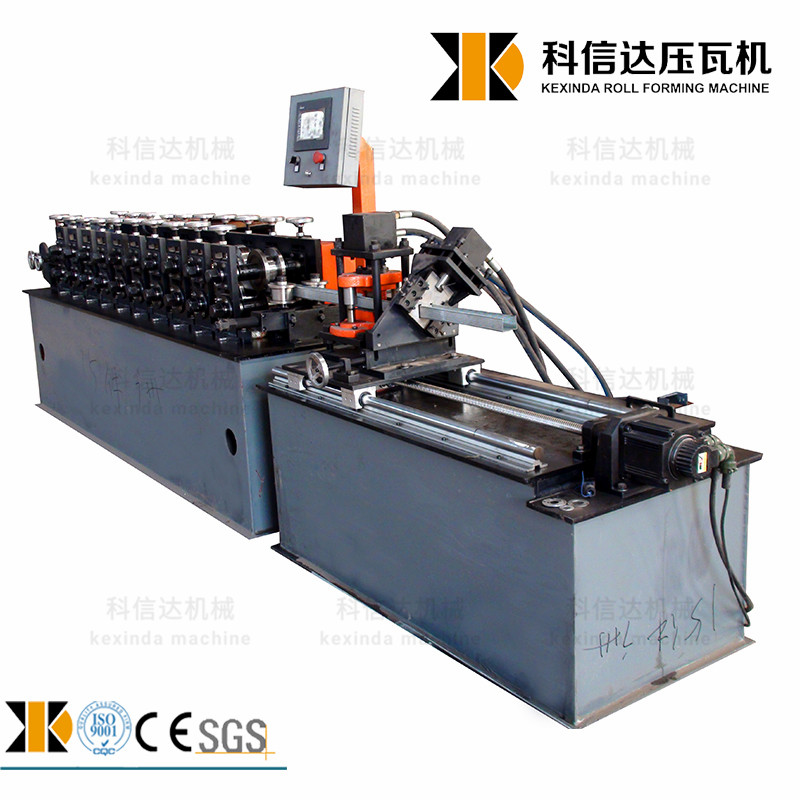

C Channel Stud and Track Roll Forming Machine
This roll forming machine efficiently produces C channel studs and tracks. It utilizes shaped rollers to form metal sheets into the desired C channel profile.
Technical Specifications
Overview
High-Precision C Channel Production

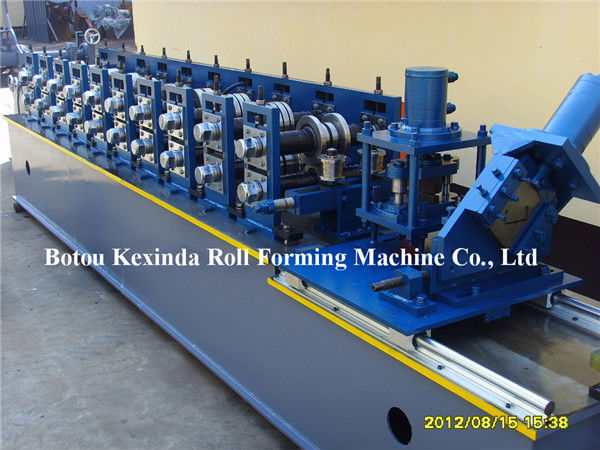

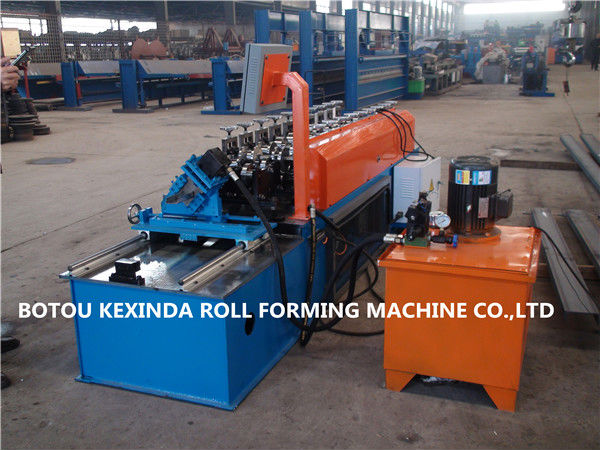

This roll forming machine is engineered for the efficient and precise production of C channel studs and tracks used in structural framing and construction. It utilizes a series of shaped rollers to gradually form galvanized steel sheets into consistent profiles with high dimensional accuracy. Designed for high-volume manufacturing, the system features automated operation and a robust frame to ensure long-term reliability and minimal material waste.
Technical Performance
Production Speed
25 m/min
Max Productivity
Operation Mode
Automatic
- Total Power
- 6 kW
Material Specifications
- Compatible Material
- Galvanized sheet
- Sheet Thickness Range
- 0.35mm - 0.6mm
Forming Capabilities
- Standard Formed Width
- 25mm x 25mm
- Supported Profiles
- U220-63-25U220-63-26U100-70-35U100-70-24C230x60C60x30x15
Machine Components
Control Interface

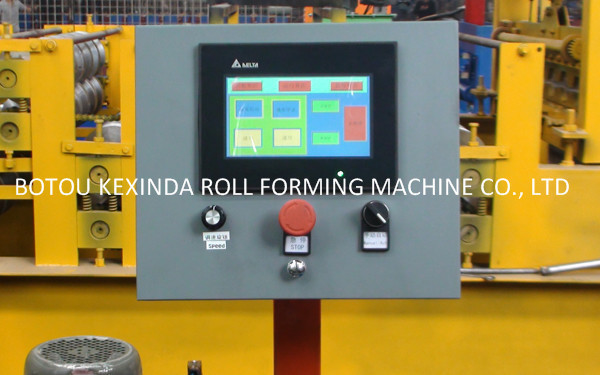

- Delta HMI Touch Panel
- Adjustable speed control
- Emergency stop safety button

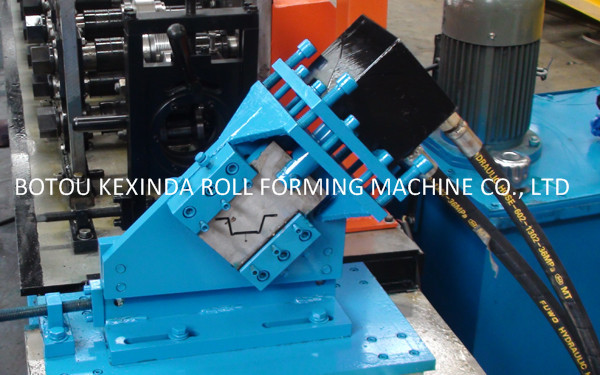

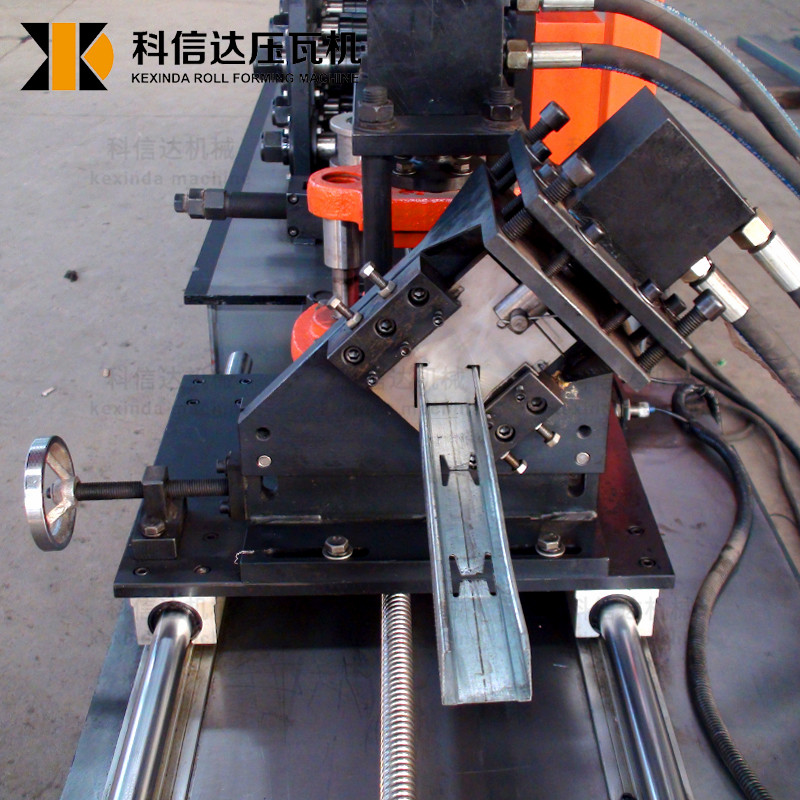

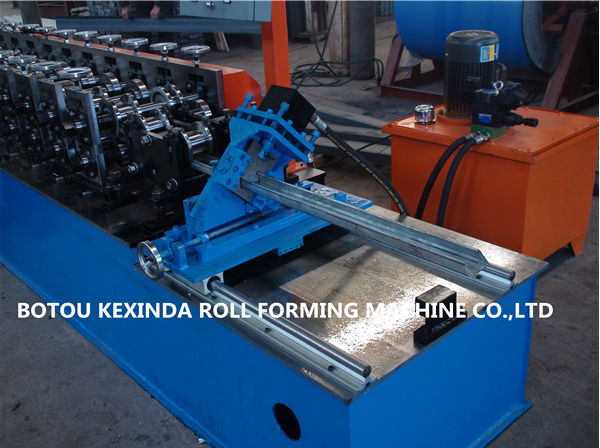

- Hydraulic cutting system
- Material of Rollers
- 45# Steel
Physical Dimensions
- Equipment Size (LxWxH)
- 4000mm x 1300mm x 1100mm
- Input Voltage
- AC 380V / 50-60Hz
Certifications
- Compliance & Quality
- CE CertifiedIAFJAF
