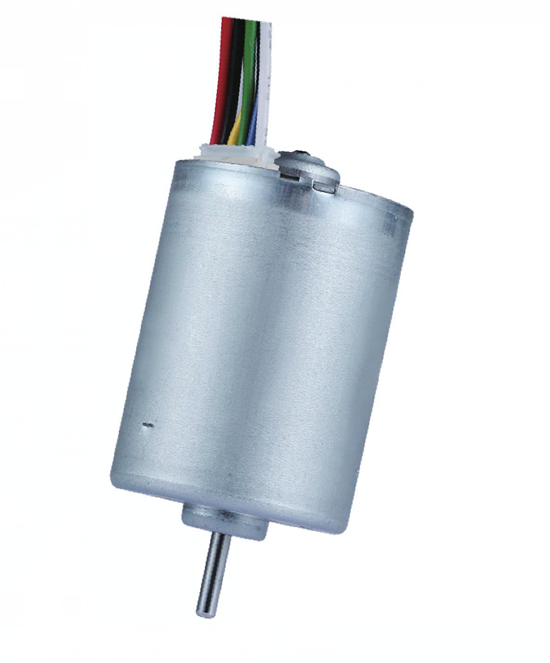

Brushless DC Motor for Rotating Barbecues
This brushless DC motor is designed for electric rotating barbecue applications. It provides efficient and reliable rotation for even cooking.
Technical Specifications
Overview
High-Performance Rotation Control
This brushless DC motor is engineered specifically for electric rotating barbecue applications, delivering consistent and reliable torque for even cooking results. Its compact, durable design is built to withstand demanding kitchen environments, making it an excellent choice for both commercial and home-use rotisserie systems. The unit features a simplified wiring interface for seamless integration into existing barbecue setups.

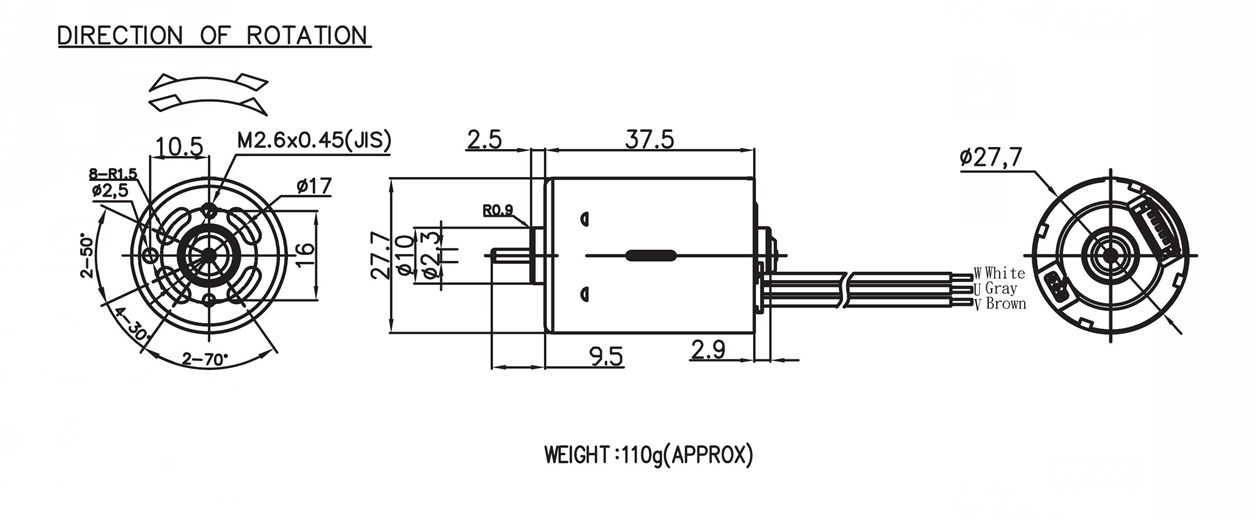

Mechanical Specifications
- Motor Diameter
- 27.7 mm
- Shaft Diameter
- 2.3 mm
- Shaft Length
- 11 mm
- Motor Body Length
- 37.5 mm
- Approximate Weight
- 110 g
Electrical Specifications
- Operating Voltage
- 12 V
- Wiring Configuration
- WhiteGrayBrown
Performance Data
Motor Model Performance
| Parameter | BBLDC2838B0W0 | BLDC2838B1W0 |
|---|---|---|
| Operating Voltage | 12.0V | 12.0V |
| Max Speed (kRPM) | 3.0 | 20.0 |
| Max Current (Amp) | 0.90 | 9.0 |
