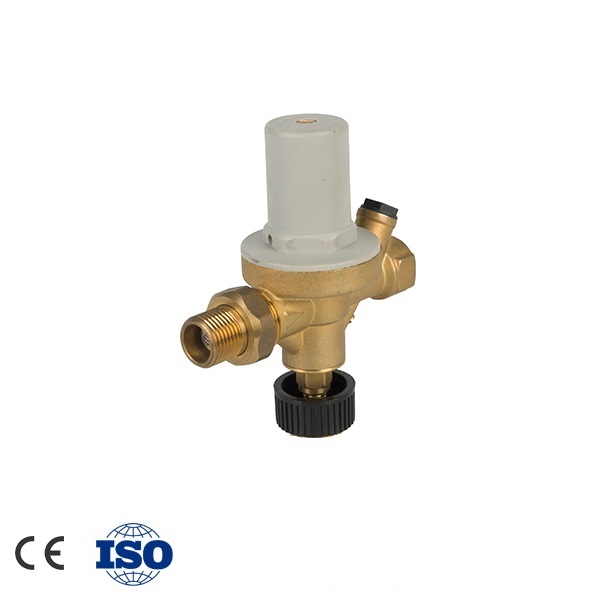

Brass Filling Valve for HVAC&R Systems
This brass filling valve is designed for HVAC&R systems. It features a pressure adjustment mechanism for precise control and threaded connections for secure, leak-proof installation.
Technical Specifications
Overview
About the Automatic Filling Valve
This automatic filling valve is engineered for sealed heating systems, designed to maintain stable system pressure automatically. It allows for pre-adjustment of the pressure value before installation, ensuring precise operation during the filling phase. Once the set pressure is reached, the valve automatically halts the feed to prevent over-pressurization.
Technical Specifications
- Max Inlet Pressure
- 12 bar
- Pressure Setting Range
- 0.2-4 bar
- Factory Pressure Setting
- 3 bar
- Indicator Accuracy
- ±0.15 bar
- Max Working Temperature
- 65 °C
- Pressure Gauge Range
- 0-6 bar
Construction & Compliance
- Primary Material
- Brass
- Certifications
- CEISO
- Compatible Medium
- Water
