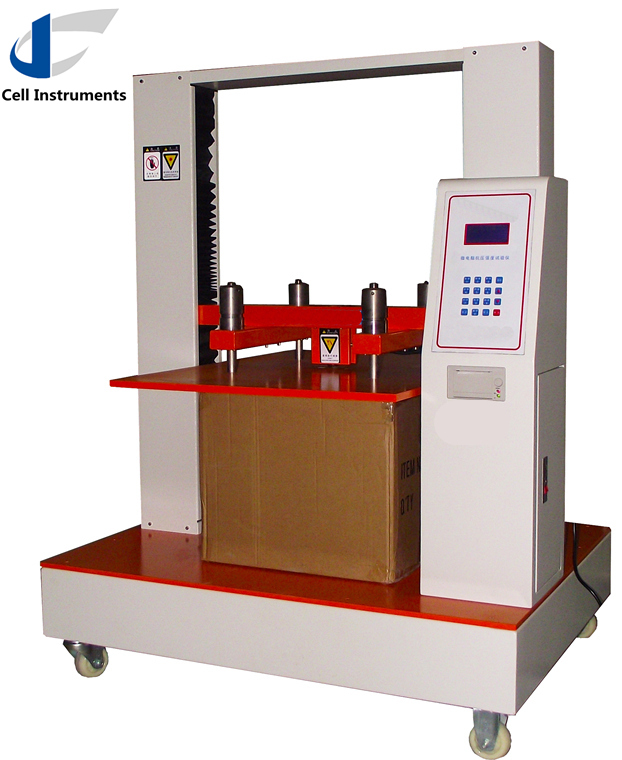

Box Compression Tester for Packaging
This box compression tester uses a microcomputer system for automatic measurement and intelligent result analysis. It features three test modes for compression resistance, stacking, and compression at fixed time and pressure.
Technical Specifications
Product Overview
Precision Packaging Analysis
This Box Compression Tester is a specialized instrument designed to evaluate the compression strength and stacking ability of medium and small-sized packaging, such as corrugated cartons. It utilizes a microcomputer processing system for automatic measurement, intelligent result judging, and real-time data display of resistance force and deformation curves. Built with a synchronous motor and thread lead screw drive system, it ensures consistent and accurate testing for quality control and packaging optimization.
Key Features
System & Interface
- LCD Display
- Microcomputer processing system
- Automatic measurement
- Real-time curve display
- Integrated microprinter
- Operating Modes
- Compression ResistanceStacking TestFixed Time/Pressure Compression
Technical Performance
Core Performance Metrics
10 KN
Pressure Range
0.1 N
Force Resolution
2 %
Display Error
1 mm
Deformation Accuracy
Compression Speed Settings
| Parameter | Value |
|---|---|
| Adjustable Range | 5-90 mm/min |
| Standard Speed | 12 mm/min |
| Stacking Test Speed | 5 mm/min |
Physical Specifications
Physical Dimensions
- Dimensions: 850mm (L) x 600mm (W) x 1100mm (H)
- Weight: 200kg
- Lower Platen Stroke: 800mm
- Test Space: 400mm (L) x 600mm (W) x 600mm (H)
Compliance
Industry Standards
ISO2874Tappi T804
