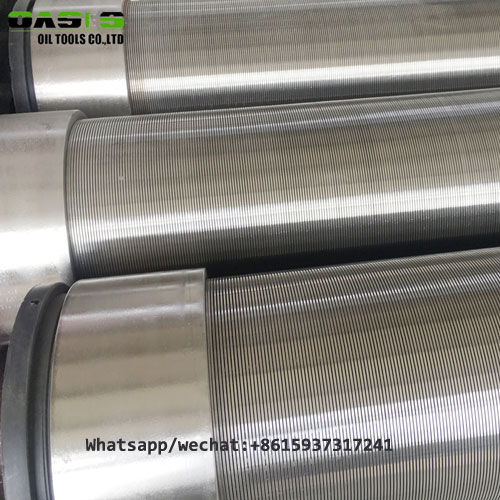

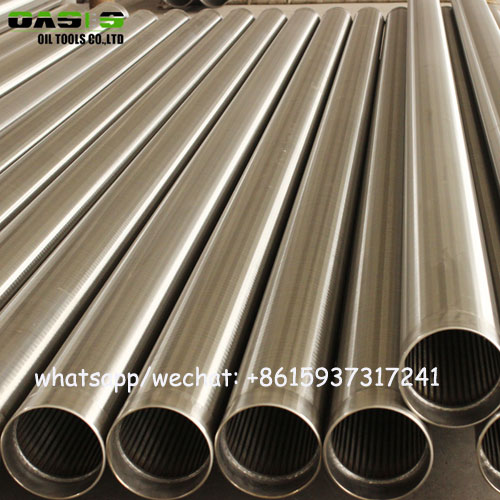

Beveled End Continuous Slot Wire Wrap Well Screen
This beveled end continuous slot wire wrap screen is designed for water well applications. Its design allows water to enter the well freely while keeping sand and gravel out.
Technical Specifications
Overview
High-Performance Continuous Slot Well Screens

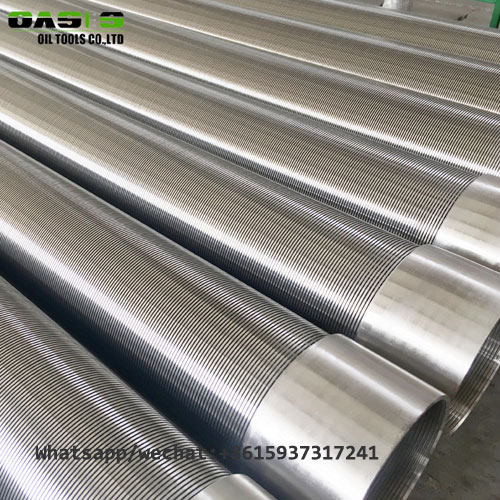

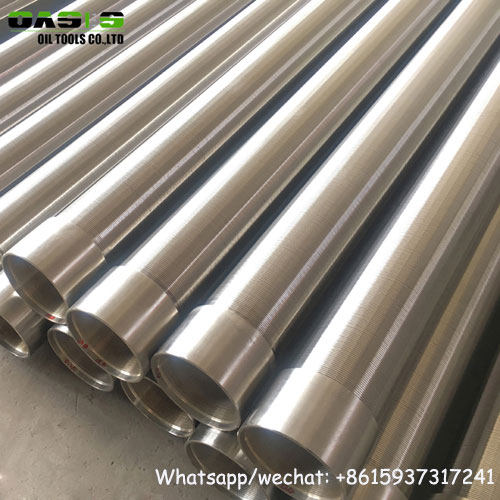

These beveled end continuous slot wire wrap screens are engineered for superior sand and gravel control in water well applications. Constructed using advanced all-weld technology, a V-shaped profile wire is fusion-welded to longitudinal support rods to create a robust, high-strength unit. The continuous slot design maximizes open area to ensure high water yield while significantly reducing entrance velocity and preventing well blockage.
Key Performance Metrics
Performance Highlights
20 %
Maximum Open Area
219 mm
Standard Diameter
0.5 mm
Standard Slot Size
Technical Specifications
Available Unit Lengths
- 3 meters
- 5.8 meters (Container optimized)
- 6 meters
- Available Materials
- Galvanized Carbon SteelStainless Steel 304Stainless Steel 304LStainless Steel 316Stainless Steel 316L
- Slot Size Range
- 0.02mm to 3mm (Customizable)
Construction & Design
End Connection Types
Beveled End (Welding)STC ThreadLTC ThreadBTC ThreadFlange
- Manufacturing Method

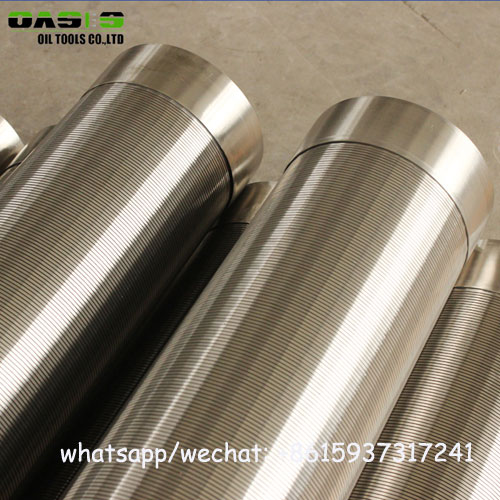

- Helically wrapped cold-rolled V-shaped wire fusion-welded to longitudinal support rods
- Surface Treatment Options
- GalvanizedPaintedPolished
Operational Advantages
Product Advantages
- Non-clogging V-shaped wire profile for unimpeded flow
- High pressure resistance via longitudinal support rods
- Reduced entrance velocity to control sand ingress
- Prolonged well service life through robust all-welded construction
- Fully customizable specifications to meet specific site requirements
Logistics & Packaging
Packaging Options
- Bubble bag and woven bag protection
- Bundled or unbundled shipping
- Secure wooden cases
