Benchtop Medical Laboratory Centrifuge with LCD Display
This benchtop medical laboratory centrifuge is designed for separating biological samples. It features a frequency motor for precise speed control and an LCD display for easy monitoring of parameters.
Technical Specifications
Product Overview
Benchtop Laboratory Centrifuge

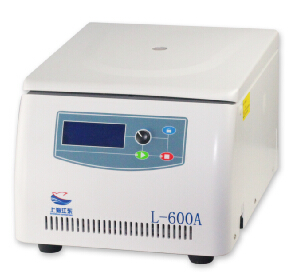

The L-600A is a versatile benchtop laboratory centrifuge designed for clinical and research environments. It features a brushless DC motor for maintenance-free operation and a user-friendly touch panel with an LCD display for precise control of speed, time, and RCF. With safety features like electronic door locks, imbalance protection, and automatic cover release, it ensures reliable and safe sample separation for various medical applications.
Performance Metrics
Key Performance Indicators
6,000 r/min
Max Speed
5,120 *g
Max RCF
90 W
Power Consumption
Technical Specifications
- Noise Level
- ≤55dBA
- Speed Accuracy
- 50 r/min
- Time Range
- 0~99min
- Power Supply
- AC 110VAC 220-230V50Hz
Physical Dimensions
- Dimensions (W x D x H)
- 290 x 475 x 360 mm
- Net Weight
- 13 KG
Safety & Compliance
Certifications
CEISO 9001
Safety Features
- Electronic door locks
- Lid safety device
- Over-speed protection
- Imbalance protection
- Automatic cover release
Rotor Options
Available Rotor Configurations
| Rotor Type | Capacity | Max Speed | Max RCF |
|---|---|---|---|
| Angle Rotor (6001A) | 12 x 15ml | 6,000 | 5,120 |
| Swing-out Rotor (6002A) | 8 x 15ml | 5,000 | 4,100 |
| Swing-out Rotor (6003A) | 4 x 50ml | 5,000 | 3,620 |
