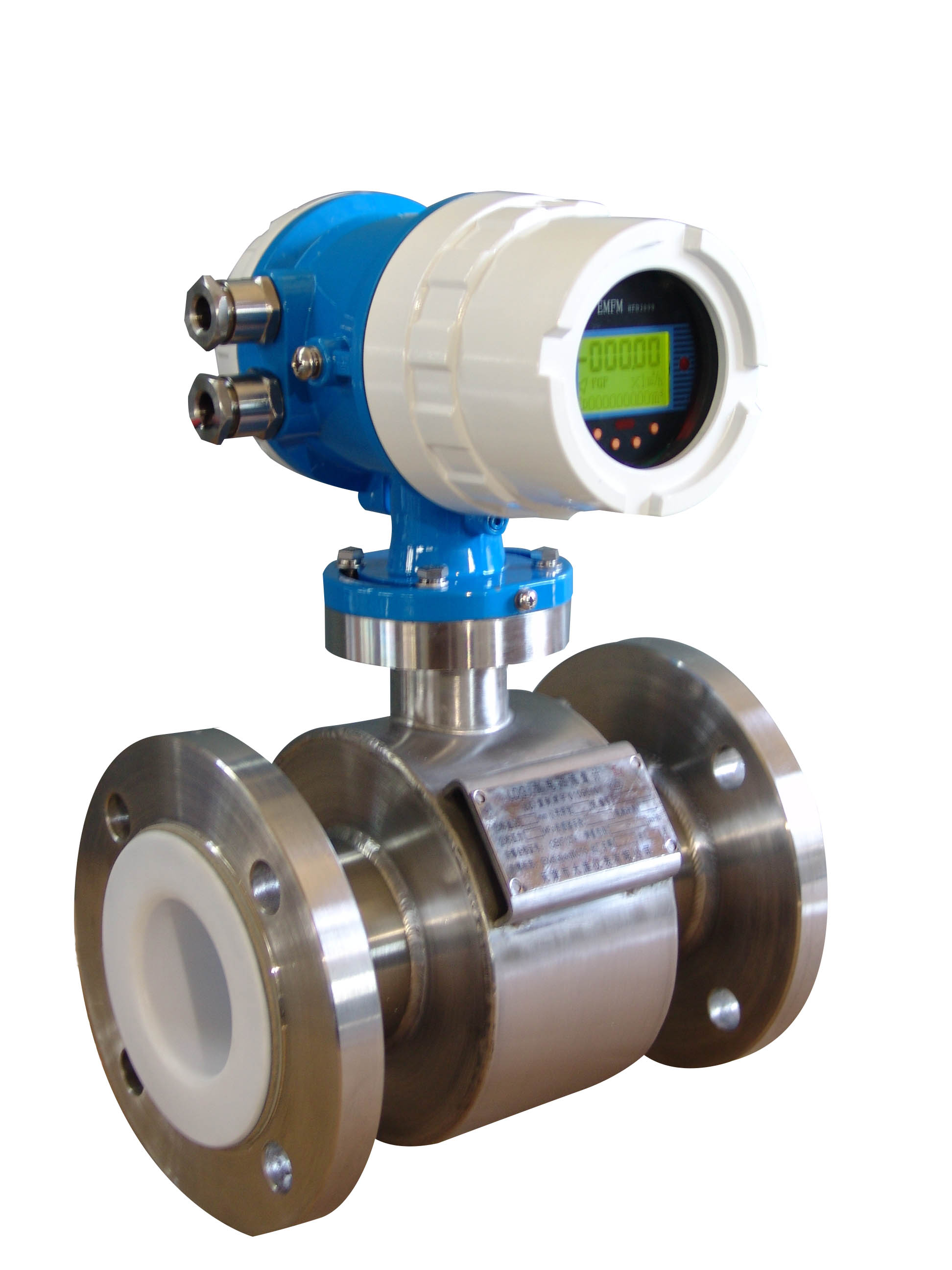

Battery Powered Electromagnetic Flowmeter with LCD
This electromagnetic flowmeter features an integrated liquid crystal display and battery power. It is designed for metering conductive liquids, water, cast iron and slurry.

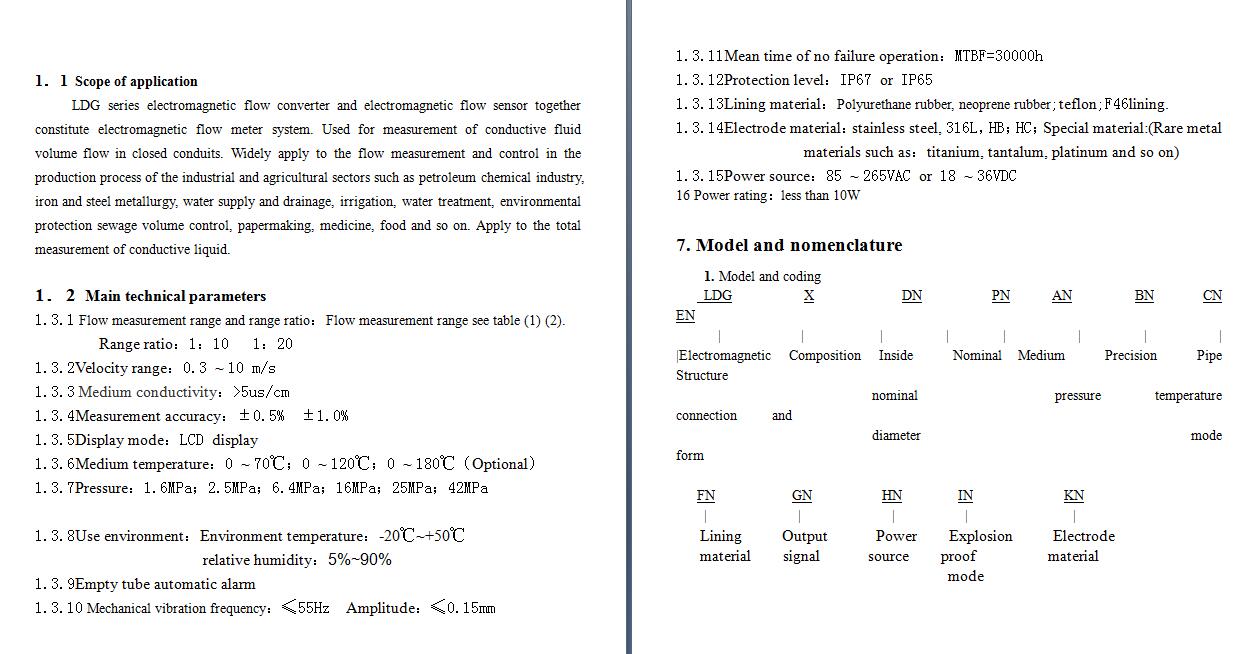

Technical Specifications
Overview
Intelligent Electromagnetic Flowmeter
This intelligent electromagnetic flowmeter is a high-performance, integrated solution designed for the precise measurement of conductive liquids in closed conduits. Featuring a clear liquid crystal display and versatile battery-powered operation, it offers flexibility for remote installations in industrial and agricultural sectors. Its robust design supports a wide range of lining and electrode materials, ensuring reliable performance even in corrosive or challenging environments.
Technical Performance
Measurement Accuracy
±0.5%±1.0%
- Velocity Range
- 0.3 to 10 m/s
- Minimum Medium Conductivity
- 5 us/cm
- Mean Time Between Failures
- 30000 hours
Operating Conditions
Medium Temperature Options
- 0 to 70°C
- 0 to 120°C
- 0 to 180°C
- Protection Rating
- IP65IP67
- Ambient Temperature Range
- -20°C to +50°C
- Relative Humidity
- 5% to 90%
Materials and Construction
- Lining Materials
- PolyurethaneNeopreneTeflonF46
- Electrode Materials
- 316L Stainless SteelHastelloy HBHastelloy HCTitaniumTantalumPlatinum
Power and Connectivity
- Power Source
- 85~265VAC or 18~36VDC
- Power Rating
- 10 W
