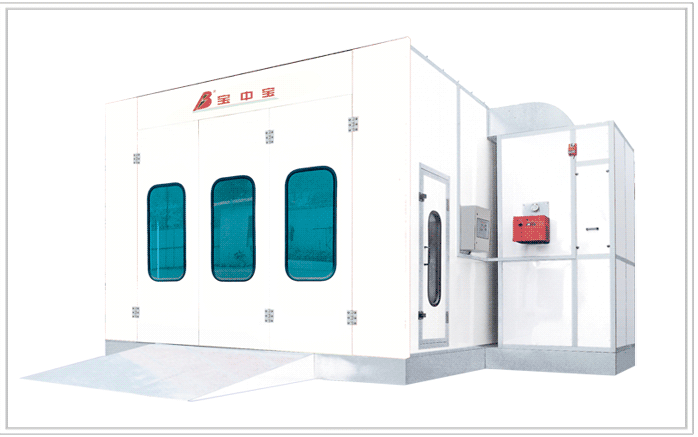

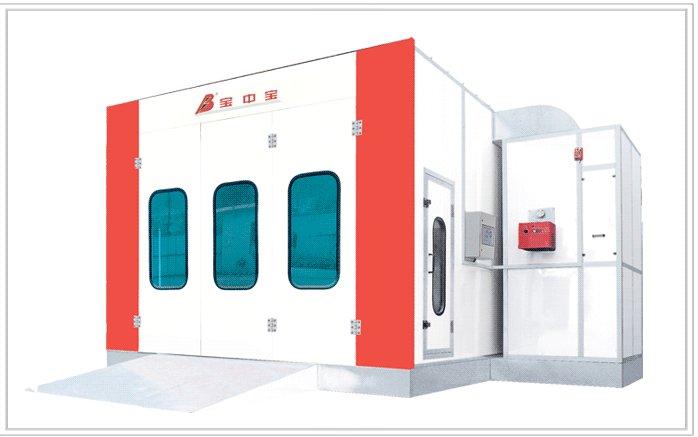

Automotive Spray Booth with Ventilation System
This automotive spray booth provides a controlled environment for painting vehicles, ensuring high-quality finishes. It features a robust ventilation system and insulated panels for temperature control and noise reduction.
Technical Specifications
Overview
Professional Automotive Spray Booth
This professional-grade automotive spray booth provides a controlled, high-quality environment for vehicle refinishing and industrial coating. Engineered with a robust ventilation system and advanced multi-stage filtration, it ensures efficient air purification that meets national environmental standards. The booth features insulated wallboard construction for thermal efficiency and precise temperature control, making it an essential solution for achieving professional-grade finishes.
Dimensions
- External Size
- 7000 x 5560 x 3430 mm
- Internal Size
- 6900 x 4000 x 2800 mm
- Front Door Dimensions
- 3000 x 2700 mm
Technical Performance
Total Power Consumption
10.5 kw
Total Power
Air Volume Capacity
24,000 m3/h
Total Air Volume
Cabin Construction
Basement Configuration
- Two Grids
- Three Embossed Plates
- Galvanized Steel Sheet Construction
- Two Ramps
- Wallboard Material
- EPS (epispastics polystyrene) Colorful Steel Skin Boards
- Wallboard Thickness
- 50 mm
Air Circulation & Filtration
- Filtration Rate
- 98%
- Filtration Standards
- Primary Filter (>10μm)Ceiling Filter (>5μm)Dual Filtering Structure
Heating System
Heating Performance
| Metric | Value |
|---|---|
| Heat Exchange Rate | 85% |
| Max Temperature | 80°C |
| Heating Time (20-60°C) | 4-6 min |
| Fuel Consumption | 4-6 kg/vehicle |
Control System
Control Features
Spray SwitchBaking SwitchEmergency StopBreakdown Alarm
