Automotive Diagnostic Code Reader
This automotive diagnostic code reader is a handheld device used to read and clear diagnostic trouble codes (DTCs). It supports various communication protocols for wide vehicle compatibility.
Technical Specifications
Product Overview
Professional Automotive Diagnostic Tool

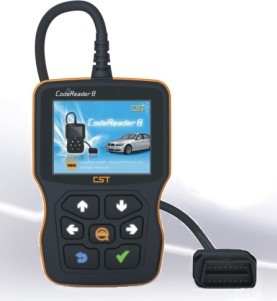

This portable, universal diagnostic code reader is designed for efficient vehicle troubleshooting and maintenance. Featuring a high-resolution color display and an advanced ARM processor, it provides rapid response times and intuitive navigation for both professional technicians and automotive enthusiasts. The device supports a wide range of OBDII, EOBD, and CAN protocols, ensuring broad compatibility with modern vehicle systems.
Key Features
- Diagnostic Functions
- Read/Erase Fault CodesDynamic Data FlowFreeze Frame DataI/M Readiness TestOxygen Sensor TestVehicle Information RetrievalFuel Consumption TestAcceleration Test
Technical Specifications
Display
3.2 inch
Screen Size
320 px
Resolution Width
240 px
Resolution Height
Power & Electrical
- Input Voltage: 9 - 18V
- Working Current: <100mA at 12V
- Typical Consumption: <1.2W
Operating Environment
| Condition | Range |
|---|---|
| Working Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C |

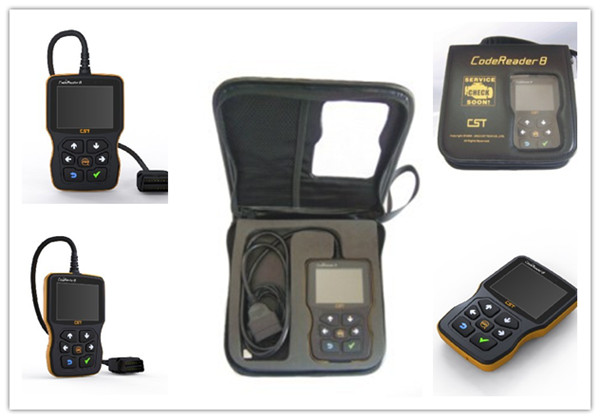

Package Contents
What's in the Box
- 1x Main Diagnostic Unit
- 2x CD Software/Manuals
- 1x USB Cable
- 1x 6ft OBDII Connection Cable

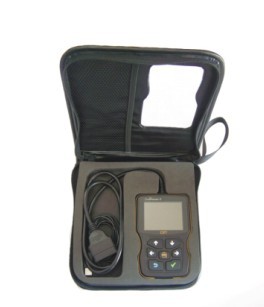

- 1x Leather Portable Storage Bag
