Automobile Engine Piston
This high-performance piston is designed for automobile engines. It features precision machining and robust construction to withstand high combustion pressures and temperatures.
Technical Specifications
Product Overview

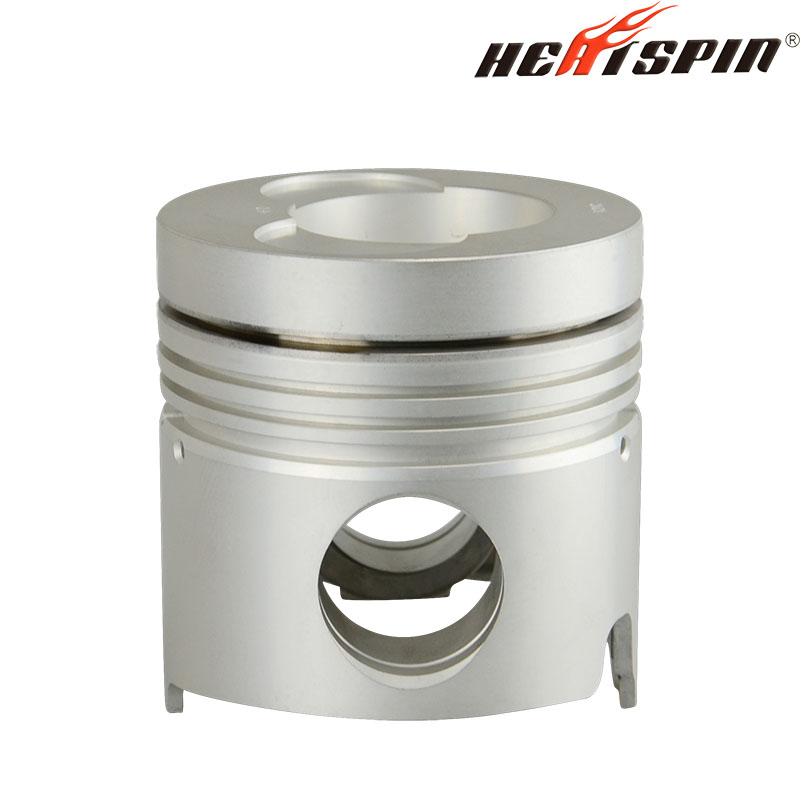

High-Performance Engine Piston
This EF750 series piston is engineered for durability and optimal engine performance, featuring precision machining to withstand high combustion pressures and temperatures. Constructed from high-quality AC8A material with an alfin insert, it ensures reliable operation and extended engine life. Designed for 8-cylinder configurations, this component is built to meet rigorous automotive standards for strength and thermal management.
Technical Specifications
- Bore Diameter
- 137 mm
- Total Height
- 144.3 mm
- Compression Height
- 90.3 mm
- Pin Dimensions
- 50mm x 110mm
- Ring Count
- 4
- Cylinder Compatibility
- 8
Material & Construction
- Material
- AC8A
- Construction Features
- Alfin InsertPrecision Machined
Identification
- OEM Number
- 13216-1860
- Model ID
- EF750(L/R)
Performance Metrics
Key Dimensions
137 mm
Bore
144.3 mm
Total Height
90.3 mm
Comp Height
