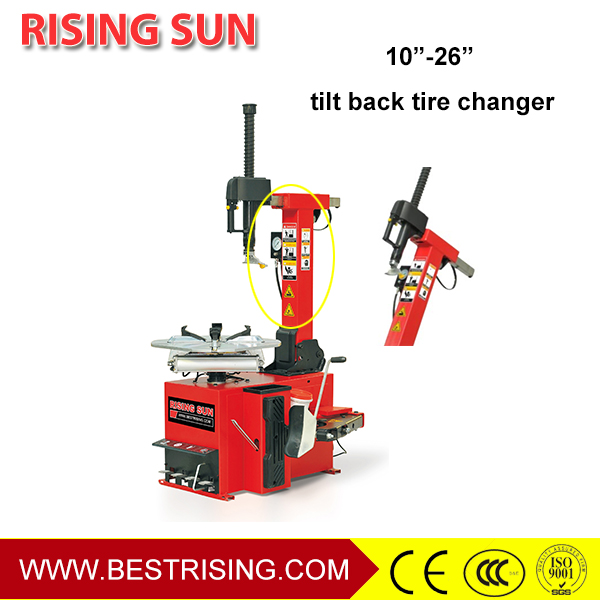

Automatic Tilt-Back Tire Changer
This automatic tilt-back tire changer is designed for efficient and safe tire servicing. It accommodates a wide range of tire sizes from 10" to 26" and features a robust construction for durability and long-term use.
Technical Specifications
Overview
Professional Automatic Tilt-Back Tire Changer
This robust tilt-back tire changer is engineered for professional automotive environments, offering efficient and ergonomic tire servicing for rim diameters between 10" and 24". It features a high-durability construction with a hard-chrome plated working head and protective components to prevent rim damage during operation. Designed for precision and ease of use, the machine incorporates a central pressing function and a self-centering turnplate to streamline the mounting and demounting process.

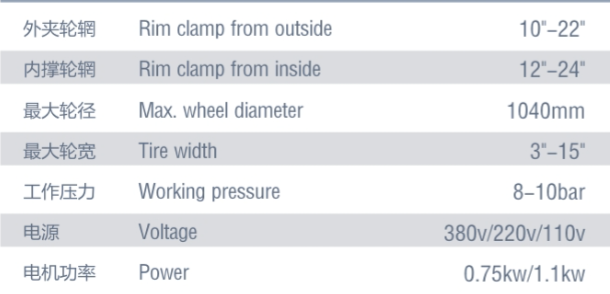

Technical Specifications
Performance Metrics
1,040 mm
Max Wheel Diameter
10 bar
Max Working Pressure
Clamping Capacities
| Clamping Type | Range |
|---|---|
| Outside Clamping | 10"-22" |
| Inside Clamping | 12"-24" |
- Available Voltage Configurations
- 380V220V110V
- Motor Power
- 0.75kw / 1.1kw
Compliance and Logistics
Compliance
CE Certified
Logistics Details
- Shipping Weight: 252kg
- Packing Dimensions: 1130 x 880 x 950mm
- Volume per unit: 0.95 cbm
- 20ft Container capacity: 24 units
- 40ft Container capacity: 52 units
