Automatic Submerged Arc Welder

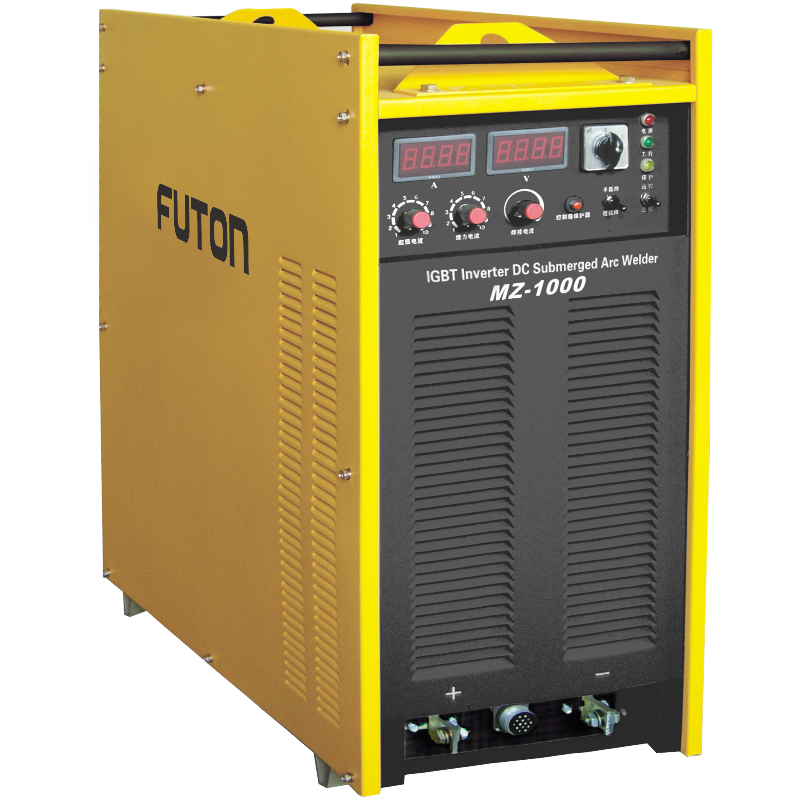

This automatic submerged arc welder is designed for submerged arc welding processes. It features digital displays for voltage and current, adjustable knobs, and indicator lights for operation status.
Technical Specifications
Overview
Industrial Submerged Arc Welding Solution
This advanced inverter-based automatic submerged arc welder is designed for high-efficiency industrial applications, including shipbuilding, boiler manufacturing, and bridge construction. It supports versatile welding processes such as SAW, MMA, and gouging, with the ability to work on carbon steel, stainless steel, refractory steel, and composite steel. Built with soft-switch and advanced control technology, the system ensures precision through preset welding parameters and continuous current adjustment.
Operational Capabilities
- Supported Welding Processes
- SAWMMAGouging
- Duty Cycle
- 100%
- Safety & Protection
- Temperature ProtectionJackscrew Protection
Technical Specifications
Welding Speed
0.2 m/min
Min Speed
1.5 m/min
Max Speed
Wire Feeding Speed
0.3 m/min
Min Feed
3 m/min
Max Feed
- Wire Diameter Range
- 2.0 - 5.0 mm
Tractor Specifications
Tractor Technical Parameters
| Parameter | Voltage | Current |
|---|---|---|
| Moving | DC 110V | 0.4 A |
| Wire Feeding | DC 110V | 1 A |
Applications
Target Industries
- Shipbuilding
- Boiler Manufacturing
- Chemical Process Vessels
- Bridge Construction
- Hoisting Machinery
- Metallurgy Manufacturing
