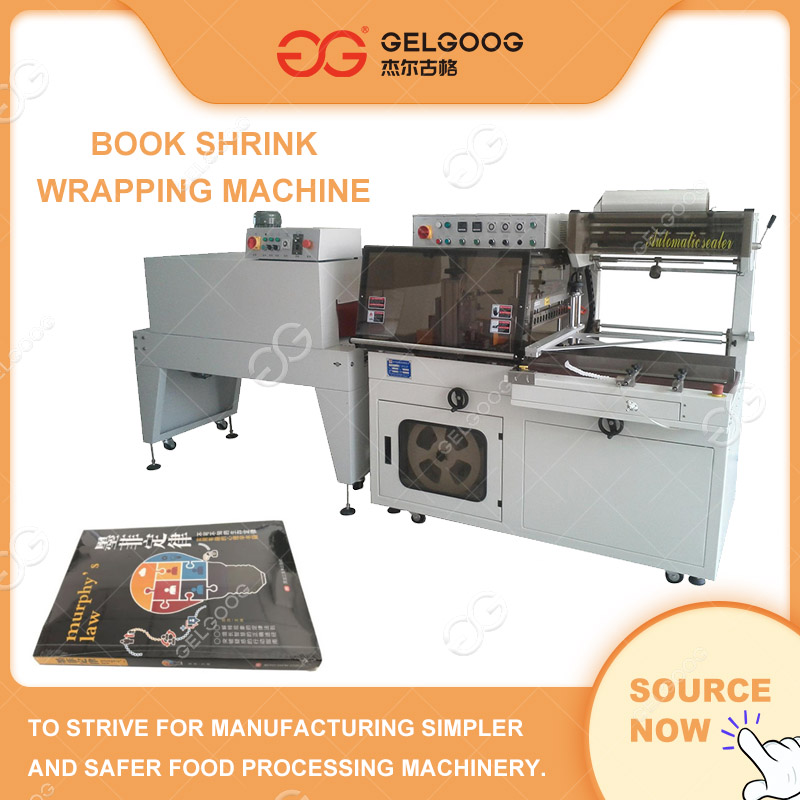

Automatic Shrink Wrapper for Books and Soap
This automatic shrink wrapping machine efficiently packages books and soap. It utilizes a shrink wrapping process to provide a secure and visually appealing package.
Technical Specifications
Overview
Professional Automatic Shrink Wrapping Solution
This automatic shrink wrapping machine utilizes advanced heat-shrink technology to provide a secure, professional finish for books, soaps, and various daily necessities. By wrapping products in shrink film, it enhances visual appeal while offering essential protection against moisture, pollution, and external impacts. The system features direct infrared heating for energy efficiency and electronic stepless speed regulation, making it suitable for both regular and irregular item packaging.
Technical Specifications
Key Performance Metrics
24 m/min
Max Capacity (Wrapper)
16 m/min
Max Capacity (Tunnel)
250 °C
Max Sealing Temp
0.1 mm
Max Film Thickness
Machine Dimensions & Weight
| Component | Dimensions (L×W×H mm) | Weight (kg) |
|---|---|---|
| Shrink Wrapper | 1700×900×1400 | 320 |
| Shrink Tunnel | 1800×703×1260 | 220 |
Power Requirements
- Wrapper: 1.3 KW, 220V 50/60HZ
- Tunnel: 9 KW, 380V 50/60HZ
Operational Capabilities
Tunnel Advantages
- Direct infrared heating
- Compact design for space saving
- Short warm-up time
- Electronic stepless speed regulation
- High-quality shrinkage preservation
- Compatible Materials
- POFPVC
- Air Pressure
- 5 Kg/cm2
